Kratke specifikacije
-
Input
0...20 universal
HART
6…14 digital -
Output
2 analog
-
Display
7“ TFT
-
Storage/Recording
internal memory
SD card
USB flash drive -
Calculations
Mass/heat quantity
heat quantity difference
Područje primjene

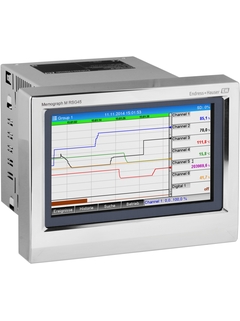

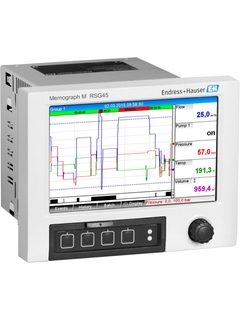

The Advanced Data Manager is a flexible and powerful system for organizing process values. Thanks to its intuitive operation, Memograph M adapts quickly and easily to any application. The process values are clearly presented on the display and logged safely, limits are monitored and analyzed. Via communication protocols, the measured and calculated values can be easily transferred to higher-level systems and plant modules can be interconnected. Also available as DIN rail version without display.
The solution for all your tasks. For example, for:
Process measuring technology
Power stations and energy supply
Steam boiler monitoring/efficiency calculation
Food and pharmaceutical industry
Plant and apparatus engineering and construction; Milk pasteurization plants
Environmental and climate measuring technology; Storm overflow control
Quality assurance and production
Batch analysis; Tele-Alarm functions
iTHERM TrustSens Calibration Monitoring
Testing bays and laboratory applications
Prednosti
High degree of data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
HART input card: HART sensors directly connected provide accurate process values for calculation and logging
HART gateway: time-saving direct access to HART sensors in the field with FieldCare using Memograph M without interrupting the measuring loop
Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas.

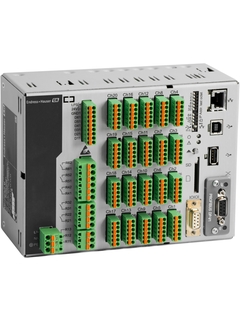

DIN rail version: compact device with small dimensions for cabinet mounting or remote field applications.
System capability: supports common fieldbuses (Modbus, Profibus DP, PROFINET, EtherNet/IP) for fast integration into diverse systems
Integrated Web server: remote access to device operation and visualization for lower maintenance costs
WebDAV: files saved on SD card transmitted directly to a PC via HTTP without any additional software.
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Prethodnik
Uspješne priče
Također vas može interesirati
98 dokumenti
-
-
Tehničke informacije (TI)
Memograph M, RSG45
Advanced Data Manager
EN HR 21/09/202130/07/201831/03/201631/08/2015Jezik:
English
Verzije:
21/09/2021
Veličina datoteke:
7.3 MB
Naziv datoteke:
TI01180REN_0421.pdf
-
-
-
Upute za uporabu (BA)
BA Memograph M, RSG45
Advanced Data Manager
Additional instructions for PROFINET deviceEN HR 31/07/202315/12/202203/09/201805/07/201601/10/2015Jezik:
English
Verzije:
31/07/2023
Veličina datoteke:
6.3 MB
Naziv datoteke:
BA01415REN_0523-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for Modbus RTU/TCP SlaveEN HR 30/09/202201/10/2015Jezik:
English
Verzije:
30/09/2022
Veličina datoteke:
4.7 MB
Naziv datoteke:
BA01388REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
EN HR 21/09/202103/09/201822/12/201714/12/201610/05/2016Jezik:
English
Verzije:
21/09/2021
Veličina datoteke:
14.1 MB
Naziv datoteke:
BA01338REN_0721.pdf
-
-
-
Upute za uporabu (BA)
iTHERM TrustSens Calibration Monitoring
Memograph M RSG45 in connection with iTHERM TrustSens TM37x and the
Field Data Manager (FDM) softwareEN HR 15/12/202230/11/2018Jezik:
English
Verzije:
15/12/2022
Veličina datoteke:
2.7 MB
Naziv datoteke:
BA01887REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
Wastewater + RSB (rain spillway basin) option
Additional functions for water/wastewater softwareEN HR 29/12/202201/10/2015Jezik:
English
Verzije:
29/12/2022
Veličina datoteke:
3.7 MB
Naziv datoteke:
BA01337REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
Batch Software Option
Additional Instructions for Batch ManagementEN HR 30/12/202201/10/2015Jezik:
English
Verzije:
30/12/2022
Veličina datoteke:
4.7 MB
Naziv datoteke:
BA01411REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for Energy Option
Mass and energy calculation in water and steam applicationsEN HR 28/10/202201/10/2015Jezik:
English
Verzije:
28/10/2022
Veličina datoteke:
5.9 MB
Naziv datoteke:
BA01412REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
Memograph M, RSG45
Advanced Data Manager
Additional Instructions for PROFIBUS DP SlaveEN HR 22/12/202201/10/2015Jezik:
English
Verzije:
22/12/2022
Veličina datoteke:
5.1 MB
Naziv datoteke:
BA01414REN_0222-00.pdf
-
-
-
Upute za uporabu (BA)
FDM Field Data Manager Software MS20, MS21
Data management and visualization
EN HR 04/10/202127/07/202109/05/201916/05/201724/03/2016Jezik:
English
Verzije:
04/10/2021
Veličina datoteke:
5.9 MB
Naziv datoteke:
BA00288R09EN_1221.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Jack screw short (1 piece)
-
further parts
Narudžbeni kod71035184 -
-
Seal housing
-
further parts
Narudžbeni kodXPR0011-A1 -
-
Rear panel analog inputs
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-A2 -
-
Rear panel analog + digital inputs
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-A3 -
-
Terminal cover for panel mounting housing lead sealable
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-A5 -
-
Terminal cover for DIN rail housing lead sealable
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-A8 -
-
Rear panel DIN rail analog inputs
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-B1 -
-
Rear panel DIN rail analog + digital inputs
-
Housing/housing accessories
Broj crtežaNarudžbeni kodEXPR0011-B2 -
-
Terminal plug 3pole "L N PE" pitch 5.08
-
further parts
Narudžbeni kod71296182 -
-
Terminal strip 9 pole FMC1,5/9-ST-3,5
-
further parts
Narudžbeni kod71037363 -
-
Terminal strip 3 pole FKC2,5/3-ST-5,08
-
further parts
Narudžbeni kod71037408 -
-
Terminal strip 4 pole FKC2,5/4-ST-5,08
-
further parts
Narudžbeni kod71037410 -
-
Terminal strip 6 pole FKC2,5/6-ST-5,08
-
further parts
Narudžbeni kod71037411 -
-
Terminal plug 3pole "N L PE" pitch 5.08
-
further parts
Narudžbeni kod71123475 -
-
Power supply unit 100-230VAC(+/-10%)
-
Power supply
Broj crtežaNarudžbeni kodGXPR0011-NA -
-
Power supply unit 24VAC/DC
-
Power supply
Broj crtežaNarudžbeni kodGXPR0011-NB -
-
Power supply unit 230V incl. relays DIN rail Version)
-
Power supply
Broj crtežaNarudžbeni kodGXPR0011-NC -
-
Power supply unit 24V incl. relays DIN rail Version)
-
Power supply
Broj crtežaNarudžbeni kodGXPR0011-ND -
-
Terminal strip 6 pole FMC1,5/6-ST-3,5
-
further parts
Narudžbeni kod51009211 -
-
HART card (4 channels) Slot 1-5
-
I/O module
Broj crtežaNarudžbeni kodHXPR0011-A4 -
-
Analog board (4 channels) Slot 1-5
-
I/O module
Broj crtežaNarudžbeni kodHXPR0011-A6 -
-
Terminal strip 4pole FMC1,5/4-ST-3,5
-
further parts
Narudžbeni kod71037350 -
-
Terminal strip 10 pole FMC1,5/10-ST-3,5
-
further parts
Narudžbeni kod71037351 -
-
Terminal strip 4 pole FKC2,5/4-ST-5,08
-
further parts
Narudžbeni kod71037410 -
-
Digital board extension, 8x digital- input + 6x relays + 2x analog output, for upgrade please order rear panel!
-
I/O module
Broj crtežaNarudžbeni kodIXPR0011-A7 -
-
Memorycard SD 1GB neutral
-
further parts
Narudžbeni kod71187780 -
-
Connection board backside RSG45 DIN rail
-
further parts
Narudžbeni kod71412098 -
-
CPU + Software RSG45
-
Electronic
Broj crtežaNarudžbeni kodFXPR0013- -
-
Field Data Manager Software MS20
-
further parts
Narudžbeni kodMS20- -
-
Software RSG45 (release code)
Narudžbeni kodXPR0012- -
Accessories RXU10
Narudžbeni kodRXU10- -
Analog board (4 channels) Slot 1-5
Narudžbeni kodXPR0011-A6 -
Digital board extension, 8x digital- input + 6x relays + 2x analog output, for upgrade please order rear panel!
Broj crtežaNarudžbeni kodIXPR0011-A7 -
