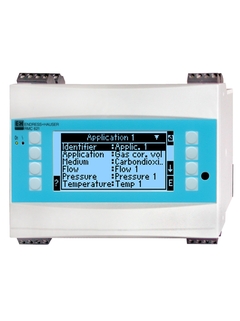

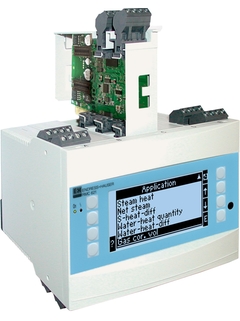

RMC621
Flow and energy manager

RMC621
Flow and energy manager ©Endress+Hauser
RMC621
Flow and energy manager ©Endress+Hauser

Universal flow and energy computer for gases, liquids and steam

The flow and energy manager RMC621 calculates standard volume as well as mass and energy flows of natural and technical gases, fluids and steam from flow, pressure, temperature and density. Depending on the medium calculation of the energy values occurs according to international standards (IAPWSIF97, SGERG88), real gas equations (SRK) or specific tables. For differential pressure measurements coefficients for flow compensation are calculated over the complete operating range of the flow sensor.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Input

      2...8x PFM
      2...8x I
      2...8x Impulse (aktiv)
      2...6x RTD
      2...8x Impulse (passiv)

    • Output

      3...9x transmitter power supply

    • Display

      LC-Dot-Matrix 160 x 80 Punkte

    • Calculations

      mass/heat quantity
      heat quantity difference
      for gases: standard volume, heating value, mass

Brza selekcija

Odaberite iz ponuđenih opcija
Prodajna cijena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • Suitable for applications with gas, liquid, steam and water

    • Simultaneous calculation of up to 3 measuring applications, even if different fluids are used

    • Very precise process calculations (density, enthalpy, compressibility) on the basis of equations and/...

  • Područje primjene

    • Energy management

    • Chemical industry

    • Heating and air conditioning

    • Pharmaceutical industry

    • Food and beverage

    • Plant and panel manufacture

    • Oil + petrochemicals

Značajke i specifikacije

Nazad

Detalji

  • Mjerni princip

    Energy manager

  • Measuring principle

    Flow and energy manager

  • Function

    Gas, liquids, steam and water bilancing for industrial energy management

  • Calculations

    mass/heat quantity

    heat quantity difference

    for gases: standard volume, heating value, mass

  • Number of applications

    3

  • Data storage

    no

  • Calculation standards

    IAPWS IF97

    AGA8 / SGERG88

    Nx/9

    API 2540

    customer spezific tables

    ISO 5167

  • Communication

    1 x RS232

    2 x RS485

    PROFIBUS DP

    M-Bus

    Modbus RTU

  • Power supply

    Not defined

  • Loop power supply

    90...250V AC 50/60 Hz

    20...28V AC 50/60 Hz

    20...36V DC

  • Protection class

    IP20

  • Input

    2...8x PFM

    2...8x I

    2...8x Impulse (aktiv)

    2...6x RTD

    2...8x Impulse (passiv)

  • Output

    3...9x transmitter power supply

  • Dimensions (WxHxD)

    135 x 108 x 114 mm (5.32" x 4.25" x 4.49")

  • Operation

    Soft keys RS232 and operation software ReadWin 2000

  • Display

    LC-Dot-Matrix 160 x 80 Punkte

  • Software functions

    International calculation standards for gas, liquids, steam and water

  • Certificates

    CSA GP

    ATEX Ex ia

    FM USA IS

    FM USA NI

    CSA IS

    CSA NI

    NEPSI Ex ia

    GOST Ex i

    IECEx

    EAC
