RIA16
Loop-powered indicator

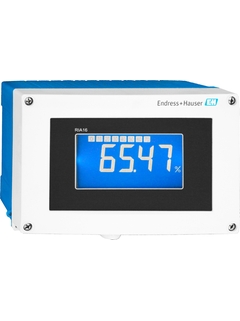

Loop-powered process indicator RIA16 for field mounting ©Endress+Hauser

Excellently readable indication of 4…20 mA signal with trend bar graph for a better process overview

The indicator shows the measured signal on the large, backlit display. A bar graph indicates the value graphically for a quick process overview. An editable plain text field displays further information like engineering unit or TAG. Limit value infringement is also signalized and an open collector can be switched. The indicator is powered directly from the 4...20 mA loop and doesn't need a separate power supply. For applications in hazardous areas the device is available with Ex approvals.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Input

      1 x analogue 4...20 mA

    • Output

      1 x open collector

    • Output

      1 x open collector

    • Display

      LCD 26 mm (1.02")
      5-digit
      Bargraph
      Plain text display

    • Power Supply

      Loop powered

please wait Loading alternative products

Brza selekcija

Odaberite iz ponuđenih opcija
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • Display of 4 to 20 mA measured values

    • 5-digit measured value display with dimension, bar graph and backlight

    • No external power supply required

    • Versions: Fiber glass reinforced plastic respectively aluminum for Ex-applications

    • Easy 3-key operation; or...

  • Područje primjene

    Microcontroller controlled process indicator with field housing and illuminated LC display. The measuring range, decimal point and offset of the display can be configured comfortably by means of three keys in the device with the housing open or by...

Detalji

  • Mjerni princip

    Loop powered indicators

  • Measuring principle

    Loop-powered field indicator

  • Function

    Display

  • Display

    LCD 26 mm (1.02")

    5-digit

    Bargraph

    Plain text display

  • Power Supply

    Loop powered

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Output

    1 x open collector

  • Software functions

    Not defined

  • Certificates

    UR C/US

    CSA GP

    ATEX Ex i

    FM USA NI

    FM USA DIP

    CSA NI

    CSA DIP

    EAC

    Marine approval

  • SIL

    Not defined

  • Panel mounting

    field

  • Mjerni princip

    Display

  • Function

    Display

  • Certification

    UR C/US

    CSA GP

    ATEX Ex i

    FM USA NI

    FM USA DIP

    CSA NI

    CSA DIP

    Marine approval

  • Input

    1 x analogue 4...20 mA

  • Output

    1 x open collector

  • Auxiliary power supply / Loop power supply

    Loop powered

  • Dimensions (wxhxd)

    Field housing:

    199 x 133 x 96 mm

    (7.83" x 5.24" x 3.78")

  • Operation

    3 keys interface on electronics + PC interface FieldCare

  • Display

    LCD 26 mm (1.02")

    5-digit

    Bargraph

    Plain text display
