iTEMP TMT82 temperature transmitter with HART® communication

iTEMP TMT82 HART® 7 temperature transmitter

Dual channel, SIL compliant temperature transmitter for use in hazardous areas

TMT82

Usporedite

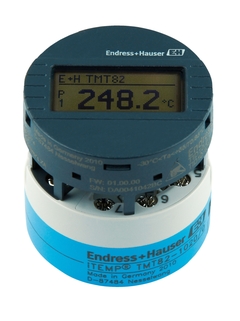

Product picture iTEMP TMT82 Temperature transmitter — Display TID10 to plug on

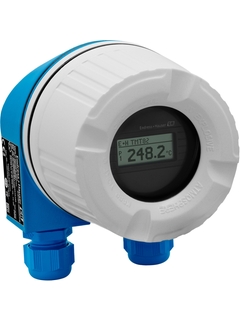

iTEMP TMT82 dual compartment field housing with integrated display — iTEMP TMT82 in field mount housing with separate terminal
compartment and integrated display for use in hazardous areas

iTEMP TMT82 Temperature transmitter — Installed in field housing TA30H for use in Ex d applications

iTEMP TMT82 temperature transmitter with screw terminals — iTEMP TMT82 temperature transmitter in terminal head form B as per DIN EN 50446, with screw terminals

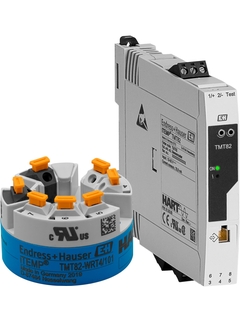

iTEMP TMT82 HART® temperature transmitter in terminal head form B as per DIN EN 50446 with push-in terminals,
DIN rail housing variant

Kratke specifikacije

Accuracy

(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F

Prikaži sve specifikacije

Područje primjene

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL
2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol
Suited for use in marine applications
Installation in explosion proof field housings;
Protection class up to IP 68
Fits in flat-face terminal heads as per DIN EN 50446
Cabinet or DIN rail mounting; width: 17.5 mm

Prednosti

Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability
SIL certification up to SIL2, SC3 according to IEC 61508:2010
Versatile mounting and housing options:
terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)
Transmitter-sensor matching for highest measurement accuracy
Sensor and hardware failure detection; diagnostic status information
according to NAMUR NE 107
Time-saving installation: Tool-free wiring with push-in terminal technology
