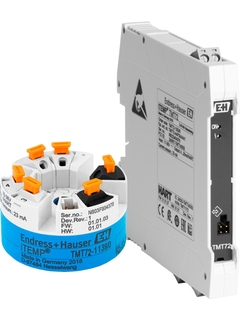

Product picture temperature transmitter iTEMP TMT72

iTEMP TMT72
Temperature transmitter

Transformation of sensor signals into stable and standardized output signals for all industries

TMT72

Usporedite

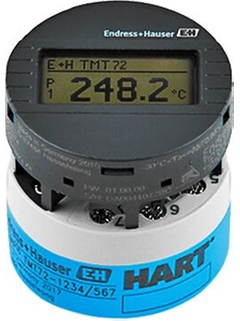

Product picture temperature transmitter iTEMP TMT72 with TID10 — Temperature transmitter with pluggable display TID10

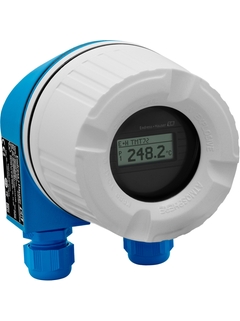

Product picture temperature transmitter iTEMP TMT72 installed in field housing TA30H — Temperature transmitter installed in a explosion protected field housing

Kratke specifikacije

Accuracy

(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F

Prikaži sve specifikacije

Područje primjene

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART^® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth^® interface for remote operation via Endress+Hauser SmartBlue App.

Bluetooth^®-enabled temperature transmitter with HART^® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)
Installation in terminal head form B (flat face) as per DIN EN 50446
Installation in cabinets with DIN rail housing
Optional installation in field housing even for use in Ex d applications

Prednosti

Safe operation in hazardous areas thanks to international approvals
Reliable operation thanks to sensor and device monitoring
Integrated Bluetooth^® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional
Diagnostics information according to NAMUR NE 107
Available with plug-on display TID10
Optimization of the measurement accuracy by sensor-transmitter matching.
