TR15
Modular RTD thermometer

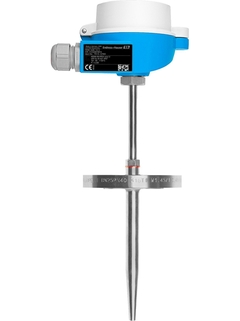

Resistance thermometer TR15 ©Endress+Hauser

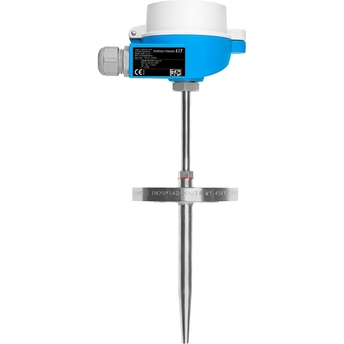

Resistance thermometer TR15 ©Endress+Hauser

Robust temperature measurement technology especially for gas and steam applications

The robust thermometer is designed for use in demanding applications like gas or steam applications e.g. in the Chemical, Oil & Gas and Energy industry. Highest pressures as well as high temperature can be handled by the use of robust protection tubes and special process connections. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Accuracy

      class A acc. to IEC 60751
      class AA acc. to IEC 60751

    • Response time

      depending on configuration

    • Max. process pressure (static)

      at 20 °C: 400 bar (5.802 psi)

    • Operating temperature range

      PT100 TF StrongSens:
      -50 °C ...500 °C
      (-58 °F ...932 °F)
      PT100 WW:
      -200 °C ...600 °C
      (-328 °F ...1.112 °F)
      PT100 TF:
      -50 °C ...400 °C
      (-58 °F ...752 °F)

    • Max. immersion length on request

      up to 30.000,00 mm (1.181,10'')

Brza selekcija

Odaberite iz ponuđenih opcija
Prodajna cijena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths

    • High degree of insert compatibility and design as per DIN 43772

    • Extension neck to protect the head transmitter...

  • Područje primjene

    • Universal range of application

    • Particularly suitable for steam and gas applications with high process pressures and temperatures

    • Measuring range: -200 to +600 °C (-328 to 1112 °F)

    • Static pressure range up to 400 bar (5800 psi)

    • Degree of protection: up...

Značajke i specifikacije

Nazad

Detalji

  • Mjerni princip

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    modular temperature assembly

    universal range of application

    suitable for hazardous areas

    suitable for high process pressures

    flanged process connection or weld in

    with neck

    incl. thermowell (metal)

    usable with insert StrongSens

  • Thermowell / protection tube

    bar stock (drilled)

    without thermowell

  • Insert / probe

    mineral insulated (MI), flexible

  • Outer diameter protection tube / Insert

    18,0 mm (0,71'')

    24,0 mm (0,94'')

    26,0 mm (1,02")

  • Max. immersion length on request

    up to 30.000,00 mm (1.181,10'')

  • Material protection tube/ thermowell

    1.0460 (A105)

    1.4571 (316Ti)

    1.7335 (13CrMo4-5; F-11)

    Alloy C276 (2.4819)

    Duplex SAF 2205 (1.4462)

    Titan Gr2 (3.7035 )

    16Mo3 (1.5415)

  • Optional coating

    Not defined

  • Process connection

    weld in version

    flange:

    DN25 PN40 B1 (EN1092)

    DN40 PN40 B1(EN1092)

    DN50 PN40 B1 (EN1092)

    ASME 1" 150 RF (B16.5)

    ASME 1" 300 RF (B16.5)

  • Tip shape

    tapered

  • Surface roughness Ra

    0,8 μm (31,5 μin.)

    1,6 μm (63,0 μin.)

  • Operating temperature range

    PT100 TF StrongSens:

    -50 °C ...500 °C

    (-58 °F ...932 °F)

    PT100 WW:

    -200 °C ...600 °C

    (-328 °F ...1.112 °F)

    PT100 TF:

    -50 °C ...400 °C

    (-58 °F ...752 °F)

  • Max. process pressure (static)

    at 20 °C: 400 bar (5.802 psi)

  • Accuracy

    class A acc. to IEC 60751

    class AA acc. to IEC 60751

  • Response time

    depending on configuration

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX II

    NEPSI

    IECEx

    EAC Ex

  • Certification

    Gost Metrology

    SIL (transmitter only)

Dokumenti / Upute / Softver

Pribor / Rezervni dijelovi

Br
Kod za naručivanje
Specifikacija
  • C
  • A
    • Br A Kod za naručivanje TPR100-

      Insert TPR100

      Mineral insulated cable (MgO). Replaceable insert acc.EN60751. max. measuring range: -200...600oC (depending on configuration).

    • Br A Kod za naručivanje TS111-

      Insert iTHERM TS111

      Replaceable. Metric version according DIN43735.

    • Kod za naručivanje TA115-

      Welding Socket TA115

      Weld-in socket for bar stock thermowell according to DIN43772 form 4. From round bar stock diam.50mm, L=50mm.

  • E
    • Br E Kod za naručivanje TN15-

      Extension Neck for Thermowell

      Neck tube made from welded parts, with thread connection to a terminal head form DIN B and different connections to a separate thermowell.

  • F
    • Br F Kod za naručivanje TT151-

      Thermowell iTHERM TT151

      Bar stock thermowell for heavy duty applications in the chemical, oil & gas and power & energy industries. For use in pipes, vessels or tanks. Wide range of dimensions, materials and process connections available. ::Highly robust design for challenging process conditions.

    • Br F Kod za naručivanje TW15-

      Thermowell TW15

      Flange connection or weld in adapter. Bar stock thermowell. DIN43772/4+4F.

    • Kod za naručivanje TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Kod za naručivanje TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

  • B
    • Br B Kod za naručivanje TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Br B Kod za naručivanje TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Br B Kod za naručivanje TID10-

      Display Unit Head Transmitter

      to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.

  • D
    • Br D Kod za naručivanje TA20A-

      Terminal Head TA20A

      Product being phased out, limited availability. Connection head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material: Aluminium epoxy resin coating Area temperature : max. +100 oC; ATEX: +95 oC.

    • Br D Kod za naručivanje TA20B-

      Terminal Head TA20B

      Connecting head to mount a measuring insert with head transmitter or a connection socket. To be mounted on an armature or protective sleeve. Material:Polyamid black. Ambient temperature: max. +80 oC. Protection: IP65.

    • Br D Kod za naručivanje TA21E-

      Terminal Head TA21E

      Retainer for terminal block or head transmitter. Cover: srewable. Material: aluminum. Max. temp.: +100 oC; ATEX +95 oC. Protection: IP65.

    • Kod za naručivanje READWIN-

      Readwin 2000 Operation + Read. software

    • Kod za naručivanje TXU10-

      Configuration Kit TXU10

      for PC-programmable devices. set-up programme+interface cable for PC with USB-Port.

    • Kod za naručivanje FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

  • D
    • Br D Kod za naručivanje TA30A-

      Terminal Head TA30A

      Retainer for terminal block or head transmitter + optional display. Cover: low, hinged, optional window. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Br D Kod za naručivanje TA30D-

      Terminal Head TA30D

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: aluminium. Coating: polyester powder-coating. Colour: body blue, cover grey. Ambient temp.: -50...150 oC (housing). Protection: IP66/68, NEMA 4X (housing).

    • Br D Kod za naručivanje TA30P-

      Terminal Head TA30P

      Retainer for 2 head transmitters or terminal blocks. Cover: high, hinged. Material: Polyamid PA12 antistatic. Colour: black. Ambient temp.: -40...120oC (housing). Protection: IP65 (housing).

  • B
    • Br B Kod za naručivanje TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Br B Kod za naručivanje TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Product being phased out, limited availability. Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Kod za naručivanje TR15-

      RTD Thermometer TR15

      Interchangeable Insert, MgO. max. measuring range: -200...600 oC (depending on configuration).

  • B
    • Br B Kod za naručivanje TMT182-

      iTEMP TMT182, Head Transmitter HART

      Product being phased out, limited availability. Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Br B Kod za naručivanje TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
