RIA45
Process meter with control unit

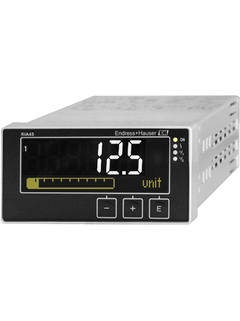

Process panel meter RIA45 ©Endress+Hauser

Multifunctional panel mounted process meter for monitoring and indication of analog measured values

Analog measured values are indicated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Input

      2 x universal (U, I, R, RTD, TC)

    • Output

      1 x loop power supply

    • Output

      2 x analogue output (I, U)
      1 x loop power supply

    • Display

      Multicolor backlight LCD
      White/black/yellow
      Bargraph
      Unit
      TAG
      Alarm warning in plain text

    • Power Supply

      20...250V AC/DC

please wait Loading alternative products

Brza selekcija

Odaberite iz ponuđenih opcija
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • 5-digit 7-segment LC display, backlit

    • 1 or 2 universal inputs

    • 2 relays (optional)

    • Min./max. value saved

    • 1 or 2 calculated values and linearization table

    • Digital status output (Open Collector)

    • SIL2 approval (optional); marine approval

  • Područje primjene

    The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are...

Detalji

  • Mjerni princip

    Display

  • Function

    Display

    Loop power supply

    Transmitter functionality

    Barrier

    Signal isolation

    Calculation

    Limit alarm

  • Certification

    ATEX II (1)GD[Ex ia] 4C

    CSA AIS, NI/I/2 ABCDEFG/T4

    FM AIS, NI/I/2 ABCDEFG/T4
    Marine approval

    UR C/US

  • Input

    2 x universal (U, I, R, RTD, TC)

  • Output

    2 x analogue output (I, U)

    1 x loop power supply

  • Relay output

    2 x changeover contact

    1 x open collector

  • Auxiliary power supply / Loop power supply

    20...250V AC/DC

  • Dimensions (wxhxd)

    Panel housing:

    96 x 48 x 175 mm

    (3.78" x 1.89" x 6.89")

  • Software

    Linearization

    Minimum value per channel

    Maximum value per channel

    Calculation

    Band value monitoring

  • Operation

    3 keys

    Interface CDI to USB at PC + configuration software FieldCare

  • Display

    Multicolor backlight LCD

    White/black/yellow

    Bargraph

    Unit

    TAG

    Alarm warning in plain text

  • Mjerni princip

    Indicators with control unit

  • Measuring principle

    Process meter with control unit

  • Function

    Display

    Loop power supply

    Transmitter functionality

    Barrier

    Signal isolation

    Calculation

    Limit alarm

  • Display

    Multicolor backlight LCD

    White/black/yellow

    Bargraph

    Unit

    TAG

    Alarm warning in plain text

  • Power Supply

    20...250V AC/DC

  • Input

    2 x universal (U, I, R, RTD, TC)

  • Output

    1 x loop power supply

  • Output

    1 x loop power supply

  • Software functions

    Linearization

    Minimum value per channel

    Maximum value per channel

    Calculation

    Band value monitoring

  • Certificates

    ATEX II (1)GD[Ex ia] 4C

    CSA AIS, NI/I/2 ABCDEFG/T4

    FM AIS, NI/I/2 ABCDEFG/T4

    marine approval

    UR C/US

  • SIL

    2

  • Panel mounting

    panel mounting
