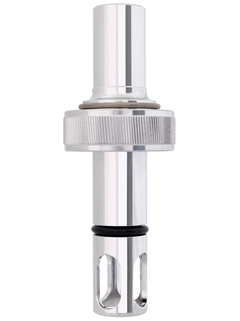

Hygienic assembly for fixed installation of pH/ORP, oxygen and cell growth sensors in pipes and tanks.
©Endress+Hauser

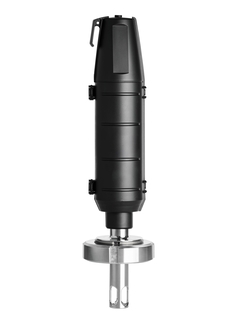

The Unifit CPA842 assembly with the optional cable protection.
Kratke specifikacije
Process temperature
-15 to 140 °C (5 to 280 °F)
Process pressure
16 bar up to 140 °C (232 psi up to 284 °F)
Područje primjene
The Unifit CPA842 process assembly meets highest requirements concerning inline cleaning and sterilization. It allows the easy installation of pH/ORP, oxygen, conductivity or cell growth sensors into tanks and pipelines of hygienic and sterile applications. Unifit is designed according to EHEDG, 3-A, ASME BPE, FDA and USP 88 class VI.
Unifit CPA842 is intended for permanent installation in tanks and pipework in:
Food and beverage
Life sciences
Chemicals
It is suitable for use with pressures of up to 16 bar (stainless steel).
Prednosti
Hygienic design according to EHEDG class I, 3-A standard 74-05, FDA, ASME BPE and USP 88 class VI avoids cross-contamination
No contamination thanks to leak-tight, built-in electrode seal
Less build-up of residues thanks to electropolished surface (Ra=0.38 µm or 0.76 µm)
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
Flexible adaptation to all applications by various hygienic process connections
Uspješne priče
Pure high quality beer and clean wastewater
Discover how Heineken meets all regulations to protect the brazilian environment with the Viomax CAS51D digital nitrate or SAC sensor from Endress+Hauser.
Pročitajte cijelu priču
Smart vertical farming in big cities
Intuitive pH and conductivity measurement in smart vertical farming plants to meet quality requirements and ensure comprehensive
monitoring of processes.
Pročitajte cijelu priču
Long-lasting performance during whey processing
With the help of the Memosens CPS77E sensor a safe monitoring of the pH values is possible, which must be guaranteed with the high requirements in the food industry.
Pročitajte cijelu priču
Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
Standardni proizvodi
Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
Tehnička izvrsnost
Jednostavnost
FLEX odabir
Tehnička izvrsnost
Jednostavnost
Fundamental odabir
Udovoljite svojim osnovnim potrebama u mjernju
Tehnička izvrsnost
Jednostavnost
Lean odabir
Jednostavno upravljajte svojim osnovnim procesima
Tehnička izvrsnost
Jednostavnost
Extended odabir
Optimizirajte svoje procese s inovativnim tehnologijama
Tehnička izvrsnost
Jednostavnost
Xpert odabir
Ovladajte svojim najizazovnijim aplikacijama
Tehnička izvrsnost
Jednostavnost
Application
Food & Beverage, Life Science, Process
Installation
Fixed installation assembly
Characteristic
Open and closed tank, piping
Design
Hygienic assembly with corresponding process connections
Material
Holder: stainless steel 1.4404
Dimension
Immersion depth: 29.5 to 86.5 mm (1.16 to 3.4 inch)
Process temperature
-15 to 140 °C (5 to 280 °F)
Process pressure
16 bar up to 140 °C (232 psi up to 284 °F)
Connection
DN25 standard, DN25 B.Braun, Clamp 1.5" (short and long), Clamp 1.5'' angled at 15°, Clamp 2", Varivent flange N, dairy fitting DN50
Mjerni princip
Amperometric oxygen measurement
