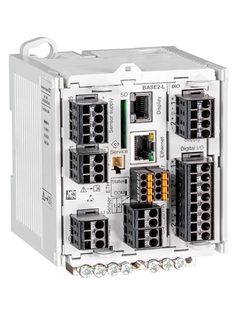

Liquiline CM442R is a compact DIN-Rail transmitter for pH, ORP, conductivity, oxygen, turbidity ...

1-/2-channel transmitter
Liquiline CM442R

Compact multiparameter DIN-rail and cabinet device for all industries

CM442R
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Liquiline CM442R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen and more.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquiline CM442R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

An optional display enables configuration, maintenance and operation of the measuring point on-site.
  • F
  • L
  • E
  • X
©Endress+Hauser

An optional display enables configuration, maintenance and operation of the measuring point on-site.

Heartbeat Technology offers diagnostics, verification and monitoring of the measuring point.
  • F
  • L
  • E
  • X
©Endress+Hauser

Liquiline transmitters with Heartbeat Technology offer status-oriented maintenance and easy verification of the measuring point and help you to carry out optimization measures.

Liquiline CM442R is a state-of-the-art transmitter for pH, ORP, conductivity, oxygen, chlorine, turbidity, sludge level, SAC, nitrate and many other parameters.

Memosens technology Heartbeat Technology

Kratke specifikacije

  • Input

    1 to 2x Memosens digital input
    2x 0/4 to 20mA Input optional
    2x Digital input optional

  • Output / communication

    2 to 8x 0/4 to 20 mA current outputs
    Alarmrelay, 2x relay, ProfibusDP, Modbus RS485,
    Modbus TCP, Ethernet

  • Ingress protection

    Transmitter: IP20
    Optional Display: IP66

Područje primjene

Liquiline CM442R allows you to connect up to 2 Memosens sensors of your choice from over 12 measurement parameters. With its extremely compact design, it fits into any cabinet - and even offers inputs, outputs, controllers, and math modules, e.g. for cleaning control. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.

Liquiline CM442R is suitable for all industries and their utilities, such as:

  • Food & Beverages

  • Life Sciences

  • Power & Energy

  • Water & Wastewater

  • Chemicals

  • Marine

It features the following communication protocols and interfaces:

  • 0/4...20 mA

  • HART

  • PROFIBUS DP

  • Modbus RS485/RTU

  • Modbus TCP

  • EtherNet/IP

  • PROFINET

  • Webserver

The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX and CSA, allow the connection of sensors installed in hazardous areas.

Prednosti

  • Saves space, saves money:
    Extremely small footprint, saves space in cabinets – perfect for skids.

  • High-speed installation:
    No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.

  • Simple and safe commissioning:
    Saving configuration on SD card enables fast set-up on duplicate installations.

  • Easy to operate and service:
    Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.

  • Process control from a distance:
    Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.

  • Higher availability, lower costs:
    Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.

Videozapisi

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.

  • Memosens technology
    Memosens 2.0: Cutting-edge sensor technology reloaded

    Make life easier, increase process safety and stay connected with Memosens 2.0 digital technology.

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
