Smartec CLD18 is a compact toroidal conductivity system for the beverage industry.

Compact conductivity device
Smartec CLD18

Toroidal conductivity measuring system for hygienic applications

CLD18
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

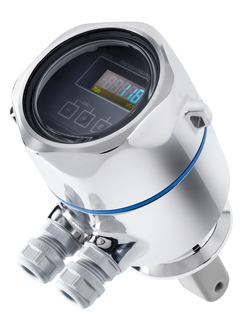

Compact conductivity device Smartec CLD18
  • F
  • L
  • E
  • X
©Endress+Hauser

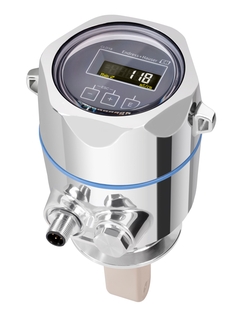

IO-Link version of Smartec CLD18 compact conductivity device
  • F
  • L
  • E
  • X
©Endress+Hauser

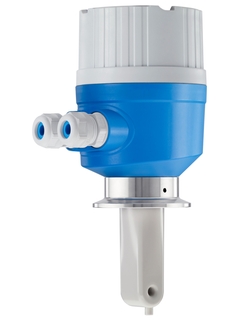

Plastic version of the compact conductivity device Smartec CLD18
  • F
  • L
  • E
  • X
©Endress+Hauser

Kratke specifikacije

  • Measurement range

    200 µS/cm to 1000 mS/cm
    Cell constant k: 11.0 1/cm

  • Process temperature

    -10 °C to 110 °C (14 °F to 230 °F)
    Sterilization: max. 130 °C at 6 bar abs up to 60 min
    (Max. 266 °F at 87 psi up to 60 min)

  • Process pressure

    13 bar abs up to 50 °C (188.5 psi up to 122 °F)
    7.75 bar abs at 110 °C (112 psi at 230 °F)
    6.0 bar abs at 130 °C for max. 60 minutes
    (87 psi at 266 °F for max. 60 minutes)

Područje primjene

Smartec CLD18 is the cost-effective solution for all applications in beverage plants where small tubes are used and where the toroidal measurement is used as a switch function. The combination of a transmitter and a sensor is interference-free, easy-to-use and features a hygienic design that protects your products and processes from contamination. Smartec CLD18 ensures the Overall Equipment Effectiveness (OEE) of your plant thanks to fast and reliable CIP and optional IO-Link protocol.

The hygienic Smartec CLD18 measures toroidal conductivity in beverage applications:

  • Control of CIP processes in the return channel

  • Concentration control in remaking of CIP cleaning agents

  • Product monitoring in pipe systems, bottling plants

  • Beer - Push water interphase

  • Beer - Water cut for brewing lines

  • Leakage monitoring

It features the following protocols and interfaces:

  • 0/4...20mA

  • IO-Link (optional)

Prednosti

  • Unique hygienic design avoids contamination

  • 3-A approval

  • Compliant with EG 2023/2006 and 1935/2004

  • Suitable for cleaning-in-place (CIP)

  • Smart and easy integration into your plant infrastructure thanks to optional IO-Link protocol

  • Compact design permits installation in small tubes without restricting the flow

Videozapisi

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

Lean odabir

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

FLEX: Lean ©Endress+Hauser

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo
Loading alternative products

Prethodnik

Uspješne priče

  • To protect the enviroment a reliable effluent monitoring is crucial To protect the enviroment a reliable effluent monitoring is crucial

    Pure high quality beer and clean wastewater

    Discover how Heineken meets all regulations to protect the brazilian environment with the Viomax CAS51D digital nitrate or SAC sensor from Endress+Hauser.

  • pH measurement in a smart vertical farming plant to guarantee best quality food pH measurement in a smart vertical farming plant to guarantee best quality food

    Smart vertical farming in big cities

    Intuitive pH and conductivity measurement in smart vertical farming plants to meet quality requirements and ensure comprehensive monitoring of processes.

  • Diary production in Food & Beverage industry Diary production in Food & Beverage industry

    Long-lasting performance during whey processing

    With the help of the Memosens CPS77E sensor a safe monitoring of the pH values is possible, which must be guaranteed with the high requirements in the food industry.

  • ICUMSA scheme ICUMSA scheme

    High-quality sugar and no bittersweet surprise

    To protect consumers, high quality standards apply in the food industry. Sugar quality must be measured by ICUMSA. This measurement is expensive and time consuming. With the OUSAF22 color sensor it is possible to measure the ICUMSA color value.

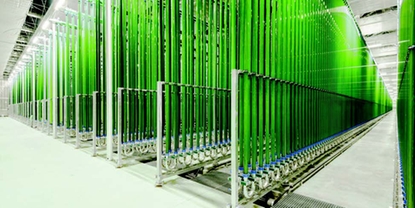

  • Industrial algae production in photo-bioreactors Industrial algae production in photo-bioreactors
