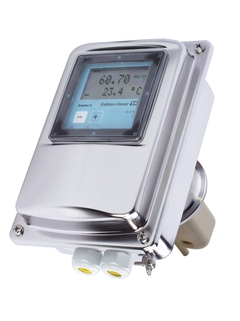

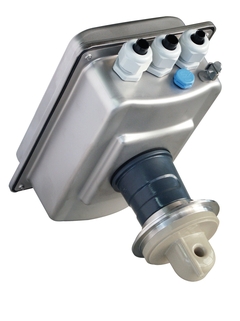

Smartec CLD134 is a hygienic conductivity system ensuring the highest process safety and quality.

Conductivity compact device
Smartec CLD134

Toroidal conductivity measuring system for hygienic and sterile applications

CLD134
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Conductivity compact device Smartec CLD134
  • F
  • L
  • E
  • X
©Endress+Hauser
Conductivity compact device Smartec CLD134
  • F
  • L
  • E
  • X
©Endress+Hauser

Kratke specifikacije

  • Measurement range

    100 µS/cm to 2000 mS/cm
    Cell constant k : 6.3 1/cm

  • Process temperature

    Max. 125 °C (max. 257 °F)
    For sterilization: up to 150 °C for max. 60 min
    (up to 302 °F for max. 60 min)

  • Process pressure

    12 bar abs up to 90 °C
    (174 psi abs up to 194 °F)

Područje primjene

Smartec CLD134 is a measuring system for inductive conductivity in the food & beverage and life sciences industries. The combination of a transmitter and a sensor is interference-free and especially easy-to-use. It meets the highest hygienic and sterile demands thanks to its food-grade virgin PEEK body, its jointless and creviceless design and its hygienic certificates. Smartec CLD134 is therefore the ideal package to ensure the highest safety and quality of your products and processes.

The hygienic Smartec CLD134 measures toroidal conductivity in food & beverage and life science applications:

  • Phase separation of product/water and product/product mixtures in pipe systems

  • Control of CIP processes in the return channel

  • Concentration control in remaking of CIP cleaning agents

  • Product monitoring in pipe systems, bottling plants, quality assurance

  • Leakage monitoring

It features the following protocols and interfaces:

  • 0/4...20mA

  • HART

  • PROFIBUS DP

  • PROFIBUS PA

Prednosti

  • Unique hygienic design avoids recontamination

  • With all hygienic certificates required in hygienic and sterile applications

  • Certified biocompatibility according to USP class VI

  • Compliant with EG 2023/2006 and 1935/2004

  • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Durable thanks to encapsulated, jointless design

Videozapisi

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.
