Modular TC or RTD industrial thermometer

iTHERM ModuLine TM151

Trend-setting, highly modular and robust RTD or TC thermometer for a wide range of industrial applications

TM151

Usporedite

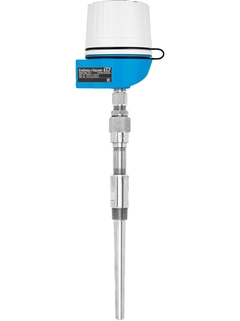

Modular, industrial thermometer with barstock thermowell — Industrial thermometer TM151 with threaded barstock thermowell

Industrial temperature sensor with flange process connection — Industrial thermometer TM151 with flanged barstock thermowell

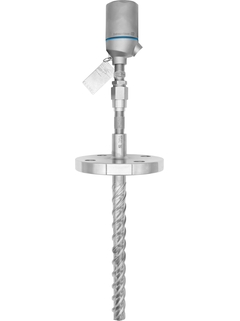

TM151 with flange and helical thermowell — Industrial thermometer TM151 with iTHERM TwistWell thermowell in helical design for high-velocity applications

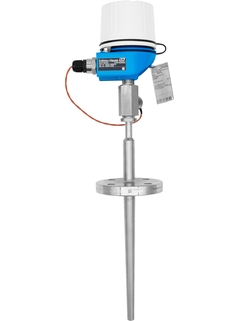

TM151 NAMUR Flange with Dual Seal — Industrial thermometer TM151 with NAMUR NE170 thermowell and Dual Seal

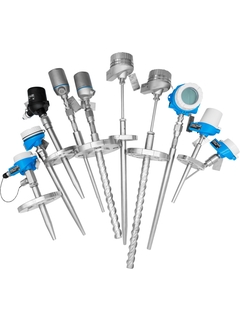

Modularity by different terminal heads, process connections and thermowells — Modular thermometer with a wide selection of terminal heads, process connections and thermowells

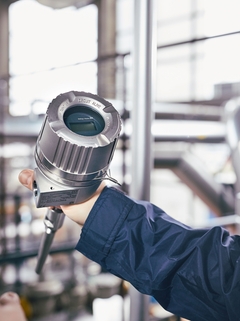

Thermometer with stainless steel housing in a typical industrial process plant — Temperature assembly for the chemical, oil & gas and power & energy industries

Industrial thermometer TM151 with threaded barstock thermowell

Kratke specifikacije

Accuracy

Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2
Response time

depending on configuration
Max. process pressure (static)

depending on the configuration up to 500 bar
Operating temperature range

PT100 TF StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 QuickSensTF:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 TF:
-50 °C ...400 °C
(-58 °F ...752 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F)
Max. immersion length on request

up to 1.500,0 mm (59,06'')

Prikaži sve specifikacije

Područje primjene

Modular industrial RTD or TC thermometer, complete with barstock thermowell or to be used with onsite thermowell. Available with Endress+Hauser temperature transmitters for enhanced accuracy and reliability - easy customizing by choosing the outputs and communication protocols. Optionally available with Bluetooth® connectivity. Thermometer featuring latest innovations such as iTHERM QuickNeck, and temperature sensor technologies like iTHERM QuickSens and iTHERM StrongSens.

Universal range of application
Measuring range: –200 to +1.100 °C (–328 to +2.012 °F)
Pressure range up to 500 bar (7.252 psi)
Vibration-resistant sensor element up to 60g
Improved ease of maintenance (sensor replacement without process shutdown), easy and safe recalibration of the measuring point

Prednosti

Second process seal with failure indication offering valuable device health status information
iTHERM QuickSens: fastest response times of 1.5 s for optimum process control
iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free recalibration
Bluetooth® connectivity (optional)
International certification: explosion protection according to ATEX, IECEx, CSA C/US and CCC
