iTEMP TMT142B HART^® 7 temperature transmitter

Smart, rugged, innovative: New generation temperature field transmitter with Bluetooth^®

TMT142B

Usporedite

Preuzmite u PDF-u
Podijeli
- Umnoži poveznicu
- Pošalji e-poruku
F

L

E

X

©Endress+Hauser

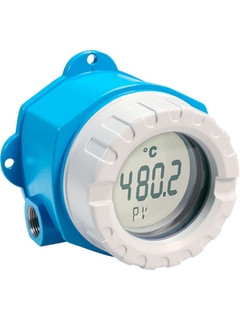

iTEMP TMT142B: Robust single-chamber temperature field transmitter, aluminum housing with integrated backlit display

F

L

E

X

©Endress+Hauser

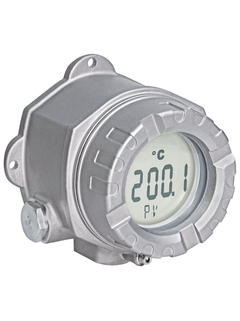

iTEMP TMT142B: Rugged single-chamber temperature field transmitter, stainless steel housing for harsh industrial environments

F

L

E

X

©Endress+Hauser

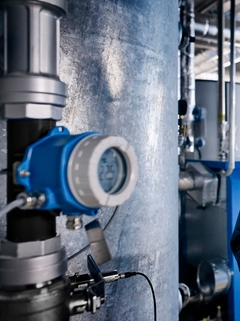

iTEMP TMT142B: Temperature field transmitter with secure Bluetooth® communication using the CPace protocol

iTEMP TMT142B: Robust single-chamber temperature field transmitter, aluminum housing with integrated backlit display
Kratke specifikacije

Accuracy

(Pt100, -50...200 °C) <=0,1 K
(Pt100, -58...392 °F) <=0,18 °F

Prikaži sve specifikacije

Područje primjene

The single-channel iTEMP TMT142B transmitter with backlit display delivers highly reliable, accurate and long-term stable measurements in critical processes and hazardous areas.
It offers secure remote operation via its integrated Bluetooth^® interface (Endress+Hauser SmartBlue app), packaged in a robust single-chamber field housing. It converts inputs from resistance sensors (RTD), thermocouple (TC), resistances (Ω) and voltage transmitters (mV) to a 4 to 20 mA signal and HART ^® 7 communication.

Temperature transmitter with secure Bluetooth ^® and HART^® 7 communication
Backlit display for clear process and diagnostic information in the field
Universal input for resistance sensors (RTD), thermocouples, resistances (Ω) and voltage transmitters (mV)
Reliability, long-term stability and high precision for safe operations in critical processes
Robust aluminum or stainless steel housings for use in hazardous areas and harsh process conditions

Prednosti

Certified for use in hazardous areas:
CSA (IS, NI, XP and DIP), ATEX, INMETRO, NEPSI (Ex ia, Ex d, dust ignition-proof)
Reliable, long-term stable and accurate temperature measurement even under harsh environmental conditions thanks to a pressure-encapsulated single-chamber housing and integrated overvoltage protection
Bluetooth^® interface: Save time and effort on commissioning, configuration and maintenance using the Endress+Hauser SmartBlue app
Predictive maintenance with advanced diagnostic functions and condensed status notification according to NAMUR NE 107
Newly developed backlit display with large digits for clear process information under all ambient conditions

Videozapisi

Remote device commissioning with SmartBlue

Lean odabir

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Vrhunski proizvodi
Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

FLEX odabir	Tehnička izvrsnost	Jednostavnost
F L E X Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju	Tehnička izvrsnost	Jednostavnost
F L E X Lean odabir Jednostavno upravljajte svojim osnovnim procesima	Tehnička izvrsnost	Jednostavnost
F L E X Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama	Tehnička izvrsnost	Jednostavnost
F L E X Xpert odabir Ovladajte svojim najizazovnijim aplikacijama	Tehnička izvrsnost	Jednostavnost Promjenjivo

Saznajte više o FLEX odabiru

Loading alternative products

Prethodnik

iTEMP HART TMT142

Uspješne priče

Prevent grain dust ignition in bulk tanks & silos

How temperature profiling increases plant safety and product quality in bulk tanks and silos for food storage.
Pročitajte cijelu priču
Self-calibrating thermometers in hygienic processes

This white paper explains how self-calibrating thermometers can be used in hygienic process engineering. It details theory and practice as well as application examples. Learn more!
Pročitajte cijelu priču
Medical autoclaves

New sensor technology automates recalibrations to reduce risk in batch sterilization. Learn More!
Pročitajte cijelu priču
Automated inline self-calibration at Lonza

Automated inline self-calibration at Lonza for full monitoring throughout bioprocess
Pročitajte cijelu priču
Iplom enhances catalyst life, process safety and efficiency

Iplom SpA sought to optimize its refining process to extend catalyst life and to increase safety in a hydrodesulfurization (HDS) application through precise 3D temperature profiling.
Pročitajte cijelu priču

Također vas može interesirati

Povezane teme
The SmartBlue app

Imagine you run all devices safely and reliably from a comfortable place: With the SmartBlue app you commission, operate and maintain Endress+Hauser devices via Bluetooth® wireless technology.
Više informacija

	EN	HR
22/01/2021
10/06/2020
21/06/2012
31/01/2007
07/02/2005

Jezik:	English
Verzije:	22/01/2021
Veličina datoteke:	1.8 MB
Naziv datoteke:	TI00107REN_1621.pdf

	EN	HR
31/01/2023
07/06/2021
25/06/2020
17/02/2020
15/12/2006

Jezik:	English
Verzije:	31/01/2023
Veličina datoteke:	4.1 MB
Naziv datoteke:	BA00191REN_1623-00.pdf

iTEMP TMT142B HART® 7 temperature transmitter

Smart, rugged, innovative: New generation temperature field transmitter with Bluetooth®

Accuracy

Područje primjene

Prednosti

Videozapisi

Lean odabir

Prethodnik

Uspješne priče

Prevent grain dust ignition in bulk tanks & silos

Self-calibrating thermometers in hygienic processes

Medical autoclaves

Automated inline self-calibration at Lonza

Iplom enhances catalyst life, process safety and efficiency

Također vas može interesirati

The SmartBlue app

Back

iTEMP TMT142B

BA iTEMP TMT142B

KA iTEMP TMT142B

iTEMP TMT142B

iTEMP TMT142, TMT142B

Control Drawing CSA, Ex ia, Ex ec

iTEMP TMT142B

iTEMP TMT142B

iTEMP TMT142B

Control drawing CSA XP, DIP

Back

Display fitt. kit field housing

Integrable Surge Arrester Module

Display HART7 + fitting kit + twist protection

Display fitting kit + twist protection

Cover latch spares kit field housing

O-Ring 88x3 EPDM 70 PTFE-coated

O-Ring 88x3 HNBR 70° Shore PTFE

Housing cover blind, Alu Ex d FM XP without O-ring CSA XP only as cover of terminal part

Housing cover blind, Alu + O-ring

Housing cover cpl. for display, Alu Ex d + O-ring

Housing cover cpl. for display, Alu + O-ring

Housing cover blind, 316L Ex d, FM XP, CSA XP + O-ring

Housing cover blind, 316L + O-ring

Housing cover cpl. for display,316L Ex d FM XP, CSA XP, with O-ring

Housing cover cpl. for display, 316L + O-Ring

Spare RFID TAG

Housing TMT142G

Electronic TMT142E

Mounting bracket SS316L, tube 1,5-3"

Adapter NPT1/2/M20x1.5 cable entry

Cable entry M20x1.5

Cable gland NPT1/2, D4.5-8.5 IP68

Cable gland M20x1.5 ATEX/IECEx

Adapter M20x1.5 exter./M24x1.5 intern.VA

Blind plug M20x1.5 EEx-d+O-ring Alu

Blind plug M20x1.5 Ex-d+O-ring V4A

Blind plug G1/2" Ex-d+O-ring Alu

Blind plug G1/2" Ex-d+O-ring V4A

Blanks (blind) NPT1/2, 3.1655.53

Blanks (blind) 1/2NPT V4A
