Innovative temperature measurement - iTHERM StrongSens
Innovative temperature measurement - the robust temperature sensor for highly precise measurements and accurate process control. Vibration resistance of up to 60g.
Kratke specifikacije
-
Max. process pressure (static)
500 bar (7252 psi)
Depending on Configuration -
Maximum standard immersion length
1500 mm
Područje primjene

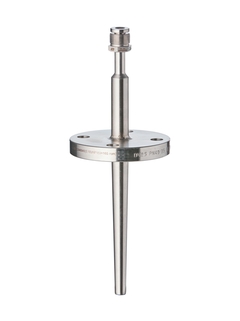

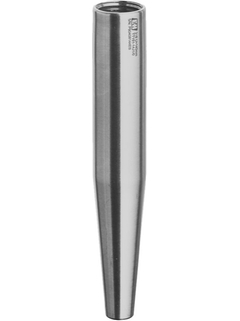

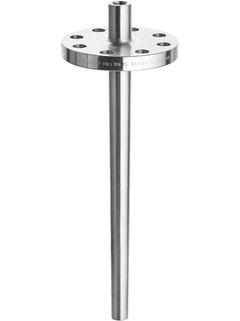

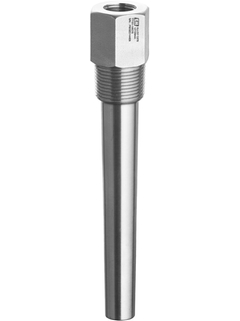

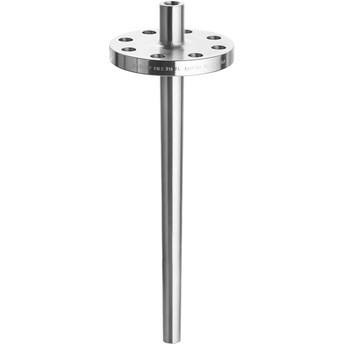

The TT151 thermowell is designed as per DIN 43772, ASME B40.9, NAMUR NE 170 norms or as individual configuration. The robust protection tube ensures safe and accurate measurements in process lines or vessels, shielding temperature sensors from harsh environments. It is drilled and machined from solid bar stock with root diameters from 9 to 50 mm. Tips are available in straight, tapered or stepped form. Process connections include a selection of standard flanges, threads or weld-in versions.
Protects the temperature sensor against physical and chemical stress
High robustness for challenging process conditions
Pressure range: up to 500 bar (7252 psi)
For use in pipes, vessels or tanks
Easier maintenance and recalibration of the measuring point (sensor can be replaced without interrupting the process)
Prednosti
-
TT151 is an industry standard thermowell manufactured from round barstock
-
Modular configuration according to DIN 43772, ASME B40.9, NAMUR NE 170 or more flexible as universal version
-
Extension, immersion length and total length can be chosen according to process requirements
-
Wide range of dimensions, materials and process connections available
-

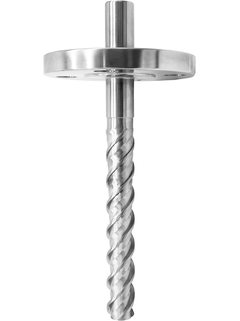

iTHERM TwistWell in helical design - reducing vortex induced vibrations in high-velocity applications
Lean odabir
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
