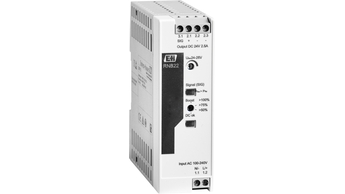

Product picture power supply RNB130

RNB130
Primary switched-mode power supply for DIN rail

Power supply for one 4 wire sensor or transmitter.

RNB130
please wait
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF 803.-

Kratke specifikacije

  • Output

    24 VDC, 1,5 A

  • Power Supply

    100…240 V AC (wide range power supply)
    45...65 Hz

Područje primjene

The power supply has one output for supplying voltage to 4 wire sensors and transmitters. Connection to mono-phased a.c. networks or to two phase conductors of three-phase supply networks (TN-, TT- or IT-networks as per VDE 0100 T 300/IEC 364-3) with 100-240 V AC nominal voltage possible.

Voltage supply for sensors. Connection to mono-phased a.c. networks or to two phase conductors of three-phase supply networks (TN-, TT- or IT-networks as per VDE 0100 T 300/IEC 364-3) with 100-240 V AC nominal voltage.

Prednosti

  • Small housing, 35 mm width

  • High availability

  • Wide range input - can be used world-wide

  • Power reserve (Power Boost)

  • Power supply without wiring: Supply via DIN rail bus connector

  • Space saving DIN rail mounting as per IEC 60715
