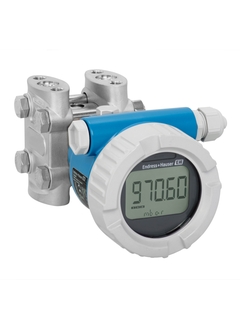

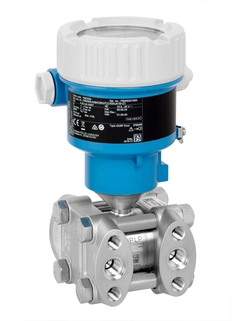

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B - differential pressure transmitter

Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases

PMD55B
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Deltabar PMD55B - differential pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Deltabar PMD55B - differential pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

Kratke specifikacije

  • Accuracy

    Standard:
    up to 0.075 %
    Platinum:
    up to 0.055 %

  • Process temperature

    -40°C...+110°C (-40°F...+230°F)

  • Pressure measuring range

    30 mbar.... 40 bar (0.45 psi... 600 psi)

  • Main wetted parts

    316L, AlloyC

  • Material process membrane

    316L, AlloyC

  • Measuring cell

    30 mbar...40 bar
    (0.45 psi...600 psi)

Područje primjene

This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.

  • Pressure measuring range: up to 40 bar (600 psi)

  • Static pressure up to 250bar (3750psi)

  • Accuracy: up to +/-0.055%

Prednosti

  • Wireless control of the device in the process area with the SmartBlue App without interrupting the process

  • Reduce on site accidents and protect equipment when instruments are in difficult to reach areas

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

Lean odabir

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

FLEX: Lean ©Endress+Hauser

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo
Loading alternative products

Uspješne priče

  • Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase. Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase.

    High plant availability in hydrogen production

    Messer produces hydrogen in a steam reformer. The facility has a large number of protection and safety devices where pressure values play an important role.

  • In Returkraft’s large incinerator, the pressure conditions must be monitored continuously. In Returkraft’s large incinerator, the pressure conditions must be monitored continuously.

    Time saved, safety increased

    Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.

  • CNG compressor model with electric motor CNG compressor model with electric motor

    Fit for purpose instrumentation for CNG compressors

    The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
