Kratke specifikacije
-
Spectral coverage
Starter:
300-3300 cm-1 (785 nm)
Base Model:
150-4350 cm-1 (532 nm)
150-3425 cm-1 (785 nm)
200-2400 cm-1 (1000 nm)
Hybrid: 175-1890 cm-1 (785 nm)
Područje primjene

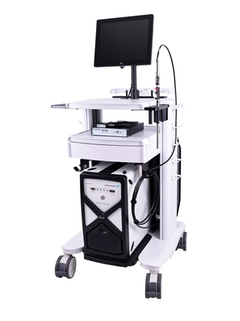

Adeptly harness the power of Raman spectroscopy with the Raman Rxn2 analyzer. Designed for use in analytical laboratories with model transfer capabilities, the Raman Rxn2 is heavily relied on for routine sample identification, support of R&D projects, early process development, and scale-up settings for in situ analysis. Available as a benchtop or on a mobile wheeled cart, the Raman Rxn2 offers location convenience and portability for process development laboratories.
Chemical: polymerization, extrusion monitoring, polymer blending, catalysis investigation
Pharmaceutical: reaction chemistry, yield crystallization, polymorph, blending, drying, granulations
Biopharmaceutical: bioprocess monitoring and control, PAT/QbD applications, cell culture, fermentation, downstream operations, cGLP/cGMP compatible
Food & Beverage: cultured meat, fermentation, oil or fat quality
Prednosti
Reliable real-time, in situ measurements
Intuitive, embedded control software via touchscreen or remote interface

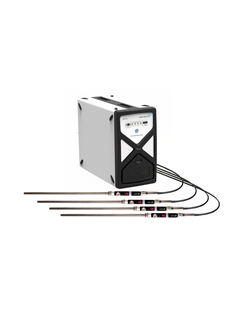

Convenience of a single base unit supporting up to four probes
-
Sequential operation for fast analysis per channel and programmable channel interrogation
Converts acquired Raman spectra into process knowledge using built-in multivariate predictors
Suitable for outputs into hazardous area/classified environments
Proven model transferability to process development and manufacturing scales
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
-
-
Tehničke informacije (TI)
Raman Rxn2 Technical Information
System design and specifications for the Raman Rxn2 analyzer -
powered by Kaiser Raman technologyJezik:
English
Verzije:
21/11/2023
Veličina datoteke:
1.2 MB
Naziv datoteke:
TI01608CEN_0323.pdf
-
-
-
Upute za uporabu (BA)
Raman RunTime v6.5 Operating Instructions
Commissioning, operation, and maintenance details
for Raman RunTime v6.5 softwareEN HR 16/11/202316/11/202231/12/2020Jezik:
English
Verzije:
16/11/2023
Veličina datoteke:
6.7 MB
Naziv datoteke:
BA02180CEN_0423.pdf
-
-
-
Upute za uporabu (BA)
Raman Rxn2 Operating Instructions
Commissioning, operation, and maintenance details for the
Raman Rxn2 analyzer - powered by Kaiser Raman technologyJezik:
English
Verzije:
21/03/2024
Veličina datoteke:
9.1 MB
Naziv datoteke:
BA02151CEN_0524.pdf
-
-
-
Kratke upute (KA)
Raman Rxn2 Brief Operating Instructions
Quick start guide for the Raman Rxn2 analyzer -
powered by Kaiser Raman technologyJezik:
English
Verzije:
21/11/2023
Veličina datoteke:
2.5 MB
Naziv datoteke:
KA01544CEN_0323.pdf
-
-
-
Ex sigurnosne upute (XA)
Raman Rxn2 Safety Instructions
Hazardous area certifications and installation instructions
for the Raman Rxn2 analyzer - powered by Kaiser Raman technologyJezik:
English
Verzije:
07/12/2023
Veličina datoteke:
1.1 MB
Naziv datoteke:
XA02700CEN_0323.pdf
-
-
-
PU (publikacija)
Kaiser Raman technology and Sartorius BioPAT Spectro® collaboration Q&A - Scalable, real-time bioprocess monitoring solutions
A Q&A about how our Raman spectroscopy analyzer systems
(including the Raman Rxn2 analyzer, Raman Rxn4 analyzer,
and Rxn-46 probe), powered by Kaiser Raman technology, integrates
with the Sartorius BioPAT Spectro platform (Ambr and biostat STR) for
high throughput and single use (SUB) bioprocessingin the
biopharmaceutical life science industry.Jezik:
English
Verzije:
08/12/2021
Veličina datoteke:
943.7 KB
Naziv datoteke:
PU01446CEN_0121.pdf
-
-
-
PU (publikacija)
Advanced process and product control in fermentations - Raman spectroscopy for composition analysis in a lab or process
An overview of Raman spectroscopy analyzer systems (including the
Raman Rxn2 analyzer, Raman Rxn4 analyzer, Rxn-10 probe, and Rxn-45
probe), powered by Kaiser Raman technology, for fermentation
compositional analysis in a lab or process applicable to biotechnology
in the food & beverage industry.Jezik:
English
Verzije:
03/03/2022
Veličina datoteke:
603 KB
Naziv datoteke:
PU01457CEN_0122.pdf
-
-
-
PU (publikacija)
Raman application guide for the life science industry - Trusted composition analysis for the life sciences
A guide to our Raman spectroscopy application notes for the
Life Science industry (featuring the Raman Rxn2 analyzer,
Raman Rxn4 analyzer, Rxn-10 probe, Rxn-20 probe, Rxn-45 probe,
Rxn-46 probe, and probe accessory optics (bIO-Optic, Raman single
use optic system / SUB, immersion optic, non-contact optic).Jezik:
English
Verzije:
19/04/2022
Veličina datoteke:
1.1 MB
Naziv datoteke:
PU01447CEN_0222.pdf
-
-
-
PU (publikacija)
Raman flow assembly - Precise composition measurement of high-speed, low-volume samples in downstream bioprocessing
An overview of the Raman flow assembly (flow bench and flow cell)
used with the Rxn-10 probe in conjunction with a Raman Rxn2
analyzer and a Raman flow assembly calibration and verification kit
for downstream bioprocessing (powered by Kaiser Raman technology).Jezik:
English
Verzije:
31/05/2023
Veličina datoteke:
837 KB
Naziv datoteke:
PU01517CEN_0123.pdf
-
-
-
PU (publikacija)
Raman calibration and verification kits - Everything needed to calibrate and verify your Raman analyzer system for lab-to-process scalability
An overview of the Raman calibration and verification kits for
the bio multi optic / single use optic and the Raman flow assembly
(includes the flow bench and flow cell). These kits are to be used in
conjunction with the Rxn-10 probe and Raman Rxn2 / Rxn4 analyzer
for upstream and downstream bioprocessing (powered by Kaiser
Raman technology).Jezik:
English
Verzije:
13/12/2023
Veličina datoteke:
2.1 MB
Naziv datoteke:
PU01518CEN_0223.pdf
-
