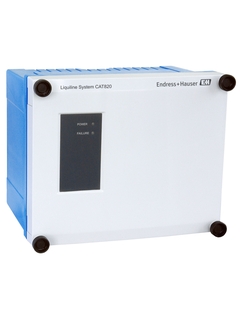

Liquiline System CAT820 provides clear samples directly from your process. Equipped with Memosens technology, it simplifies commissioning and supports predictive maintenance. Easy cleaning of the special membrane surface and tool-free maintenance reduce your operating costs. CAT820 can be combined with the modular Flexdip holder to facilitate adaption to your process. It is fully controlled by the Liquiline System analyzer, allowing perfect synchronization of your measuring point.
Liquiline System CAT820 is designed for:
Aeration basins and outlets of municipal and industrial wastewater treatment plants
Surface waters
Taking aqueous samples from industrial processes
Prednosti
Fast commissioning and plug & play thanks to Memosens technology and user-friendly Liquiline operating concept
Cost-effective through tool-free maintenance and easy replacement of filter elements
Advanced diagnostics with remote access for increased process safety
Optional back-flush function for extended maintenance intervals and minimized effort
Various mounting options for perfect fit to the application
AVR Waste in Botlek, Rotterdam, processes up to 1.7 million tons of residual waste per year. Discover how they optimized their pH measurement thanks to Endress+Hauser
Using seawater to flush toilets can save a lot of drinking water. To ensure a constant water supply, the sensors used must function reliably to meet the water quality objectives (WQO).
Examination of wastewater, using the Liquistation CSF48 and the Liquiport CSP48 mobile, can provide valuable information about the occurrence of Covid 19 infections in a specific area
Automatic sample preparation system for supplying process measuring devices with filtered samples
Size
194 x 237 x 162 mm 7.64 x 9.33 x 6.38 in (h x w x d)
Design

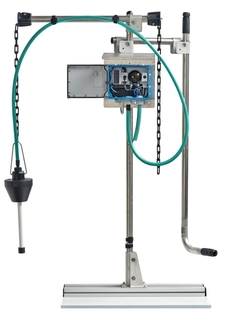

Back-flush filter system with various filter mounting options: float, chain and immersion pipe Full compatibility to holder CYH112
Process temperature
4 to 40 °C (39 to 104 °F)
Ambient temperature
Unheated: 5 to 50 °C (41 to 122 °F) Heated: -20 to 50 °C (-4 to 122 °F)
Process pressure
Unpressurized
Specials
Optional back-flush with pressurizd air (version with Memosens-Technology) Controling and parametrization via Liquiline System CA80 Stand-alone version with time-control available
Application
Sampling from aeration tank and secondary clarification of municipal and industrial wastewater treatment plants Sampling of aqueous media from industrial processes
Automatski sustav za kondicioniranje uzoraka za opskrbu procesnih
mjernih uređaja filtriranim uzorkom od aktiviranja mulja, sekundar
nog pročišćavanja ili površinske vode
Automatic sample conditioning system for supplying process measuring devices with filtered sample from sludge activation, secondary clarification or surfacewater
Automatski sustav za kondicioniranje uzoraka za opskrbu procesnih mjernih uređaja filtriranim uzorkom od aktiviranja mulja, sekundar nog pročišćavanja ili površinske vode
0 to 2.5 mg/l PO4-P (blue method) 0.05 to 10 mg/l PO4-P (blue method) 0.05 to 10 mg/l with dilution function to maximum 2.5 to 500 mg/l PO4-P (blue method) 0.5 to 20 mg/l PO4-P (yellow method) 0.5 to 50 mg/l PO4-P (yellow method) 0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l PO4-P (yellow method)
0 to 2.5 mg/l PO4-P (blue method) 0.05 to 10 mg/l PO4-P (blue method) 0.05 to 10 mg/l with dilution function to maximum 2.5 to 500 mg/l PO4-P (blue method) 0.5 to 20 mg/l PO4-P (yellow method) 0.5 to 50 mg/l PO4-P (yellow method) 0.5 to 50 mg/l with dilution function to maximum 10 to 1000 mg/l PO4-P (yellow method)
