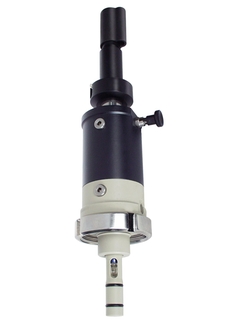

Flexible process assembly for the water & wastewater and chemical industries
-
Jednostavni proizvodi
-
Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
-
Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Vrhunski proizvodi
-
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
Tehnička izvrsnost
Jednostavnost
FLEX odabir |
Tehnička izvrsnost |
Jednostavnost |
Fundamental odabir
Udovoljite svojim osnovnim potrebama u mjernju
|
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir
Jednostavno upravljajte svojim osnovnim procesima
|
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir
Optimizirajte svoje procese s inovativnim tehnologijama
|
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir
Ovladajte svojim najizazovnijim aplikacijama
|
Tehnička izvrsnost
|
Jednostavnost
|
-
Application
Water, waste water, process
-
-
Characteristic
Open and closed tank, piping (min DN80)
-
Design
- manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber with connection G1/4" or NPT1/4"
-
Material
Holder: PP, PEEK, PVDF sealing : different material available.
-
Dimension
Immersion depth: 66 - 215 mm
(2.57 inch - 8.38 inch)
-
Process temperature
max. 60 or 80°C
(140°F or 176°F)
-
Process pressure
max. 4 or 6 bar
(58 psi or 140°F)
-
Connection
Thread G1, 25" external; thread NPT1 "external; flange DN50/ASME2", dairy fitting DN50.
-
Application
Water, waste water, process
-
-
Characteristic
Open and closed tank, piping (min DN80)
-
Design
- manual or pneumatic, can be fully automated with CPC30 / 310.- integrated rinse chamber with connectionG1/4" or NPT1/4"
-
Material
Holder : PP, PEEK, PVDFSealing : different material available.
-
Dimension
Immersion depth : 66 - 215mm
(2.57inch - 8.38inch)
-
Process temperature
max. 60 or 80°C
(140°F or 176°F)
-
Process pressure
max. 4 or 6bar
( 58psi or 140°F)
-
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
-
Application
Water, waste water, process
-
Characteristic
- Retractable holder- Open and closed tank, piping (min DN80)
-
Design
- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber with connectionG1/4" or NPT1/4"
-
Material
Holder : PP, PEEK, PVDFSealing : different material available.
-
Dimension
Immersion depth : 66 - 215mm
(2.57inch - 8.38inch)
-
Process temperature
max. 60 or 80°C
(140°F or 176°F)
-
Process pressure
max. 4 or 6bar
( 58psi or 140°F)
-
Connection
Thread G1,25"external; thread NPT1"external; flange DN50/ASME2", dairy fitting DN50.
5 dokumenti
-
Technical Information Topcal S CPC310
Fully automatic measuring, cleaningand calibration system in hazardous
and non-hazardous areas
|
EN
|
HR
|
|
22/07/2015
|
|
|
|
01/07/2006
|
|
|
|
Jezik:
|
English
|
Verzije:
|
22/07/2015
|
Veličina datoteke:
|
2 MB
|
Naziv datoteke:
|
TI00404CEN_1315.pdf
|
-
Technical Information
Cleanfit P CPA472
Retractable Process Assembly
|
EN
|
HR
|
|
19/04/2012
|
|
|
|
01/01/2008
|
|
|
|
01/06/2002
|
|
|
|
Jezik:
|
English
|
Verzije:
|
19/04/2012
|
Veličina datoteke:
|
743.6 KB
|
Naziv datoteke:
|
TI00223CEN_1312.pdf
|
-
Operating Instructions
Cleanfit CPA472D
Retractable Process Assembly
|
EN
|
HR
|
|
08/10/2013
|
|
|
|
01/09/2010
|
|
|
|
01/05/2006
|
|
|
|
Jezik:
|
English
|
Verzije:
|
08/10/2013
|
Veličina datoteke:
|
1.3 MB
|
Naziv datoteke:
|
BA00403CEN_1313.pdf
|
-
Operating Instructions
Cleanfit P CPA472
Retractable Process Assembly
|
EN
|
HR
|
|
19/04/2012
|
|
|
|
01/01/2008
|
|
|
|
02/07/2003
|
|
|
|
01/03/2000
|
|
|
|
Jezik:
|
English
|
Verzije:
|
19/04/2012
|
Veličina datoteke:
|
1018.4 KB
|
Naziv datoteke:
|
BA00223CEN_1312.pdf
|
-
SD CleanFit Servicekits / Spare part kits
CleanFit Wechselarmaturen / Retractable assemblies
Jezik:
|
English
|
Verzije:
|
01/07/2003
|
Veličina datoteke:
|
1.6 MB
|
Naziv datoteke:
|
Sd096ca2.pdf
|
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
-
Kit CPA471/472/475: Retr. pipe KCl pneum
-
Kit CPA471/472/475:Retr. pipe KCl manual
-
KIT CPA 471/472 retr.pipe Gel pn.short
-
KIT CPA471/472 shaft pneum long
-
KIT CPA471/472 retr.pipe Gel hand short
-
KIT CPA471/472 lift tube gel hand long
-
KIT CPA472 electrode pipe PP short
-
KIT CPA472 electrode guide PVDF short
-
KIT CPA472 Pistion compl. PP long
-
KIT CPA472 Sensor guide long complete
-
KIT CPA472 electrode guide PEEK long
-
KIT CPA47x pneu.connection G1/8 AD6 10p
-
KIT CPA47x:stop bolt with handle (1 pc.)
-
KIT CPA47x: sealing plug M12x1 (10 pcs.)
-
KIT CPA472 air coil, dummy plug PP
-
KIT CPA47X: Throttel check valve
-
KIT CPA471/472 cyl.screw M6x30 20 pieces
-
KIT CPA471/472 cyl. screw M6x45 20 pcs.
-
KIT CPA472rinse housingG11/4 0.SPU PP
-
KIT CPA472rinse housingG11/4 0.SPU PV
-
KIT CPA472rinse housingG11/4 0.SPU PE
-
KIT CPA472 rinse housingG11/4 G1/4 PP
-
KIT CPA472RinsinghousingG11/4 G1/4 PV
-
KIT CPA472 rinse housingG11/4 G1/4 PE
-
KIT CPA472 rinse housing NPT 1.0 PP
-
KIT CPA472 rinse housing NPT1.0 PV
-
KIT CPA472 rinse housing NPT1 NPT1/4 PP
-
KIT CPA472rinse housingNPT1 NPT1/4 PV
-
KIT CPA471/472 cylinder PA short
-
KIT CPA473/474 cylinder PA short
-
Pneum. proxim. switches f.retrofitting
-
KIT CPA47x electr. proxim.switches
-
Narudžbeni kod
C-PA071217-41
-
KIT CPA472 retrofit kit flange DN50PP
-
KIT CPA472 retrofit kit flange DN50PV
-
KIT CPA472 retrofit kit flangeANSI2 P
-
KIT CPA472 retrofit kit flangeANSI2PV
-
KIT CPA472 retrofit kit flangeANSI2PE
-
KIT CPA472 retrofit kit sl.nut RD78PP
-
KIT CPA472 retrofit kit sl.nut RD78PV
-
KIT CPA472 retrofit kit sl.nut RD78PE
-
CPA471...5 all seals w/o medium contact
-
FPM (Viton) O-ring set for CPA472
-
Kalrez O-ring set for CPA472
-
Kit CPA472/D: 20 pcs. O-ring ID14 W3 FPM
Broj crteža
Narudžbeni kod
14-1
71090063
-
Kit CPA472/D: 2 pcs.O-ring ID14W3 KALREZ
Broj crteža
Narudžbeni kod
14-1
71090065
-
Splash protection cap for assemblies
-
Kit Sensor output interface
