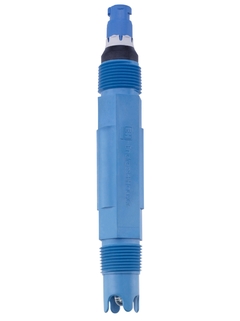

Orbipac CPF81D - Compact digital pH sensor for harsh environments

Digital pH sensor
Orbipac CPF81D

Memosens compact electrode for wastewater, primaries and metal industries

CPF81D

Usporedite

Orbipac CPF81D - Compact Memosens pH sensor for primaries and industrial wastewater

Kratke specifikacije

Measurement range

pH 0 to 14
Process temperature

Version LH: 0 to 110 °C (32 to 230 °F)
Version NN: 0 to 80 °C (32 to 170 °F)
Process pressure

1 to 10 bar abs at 80 °C
(15 to 145 psi at 176 °F)

Prikaži sve specifikacije

Područje primjene

Orbipac CPF81D is the digital, simple solution for harsh environments. It measures reliably and accurately even in fibrous media and at high flow rates. With its integrated assembly, the electrode saves space and time during flow or immersion installation. Orbipac CPF81D is not the latest Memosens generation. To get information on the new Memosens CPF81E sensor with extended functionality, click here.

Orbipac CPF81D is the robust pH sensor for processes in mining industries and treatment of industrial water and wastewater. It monitors:

Flotation
Leaching
Neutralization
Inlet and outlet

Prednosti

Suitable for flow and immersion installation
Long time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S^2- or CN^-
Robust polymer housing protects against mechanical damage
Optional flat membrane suitable for high flow rates and fibrous media
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs due to minimized process downtime and extended sensor lifetime

Videozapisi

The pH-value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.
Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
