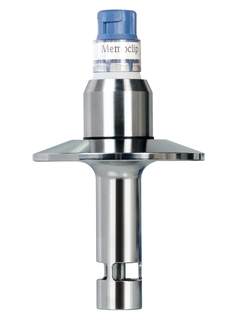

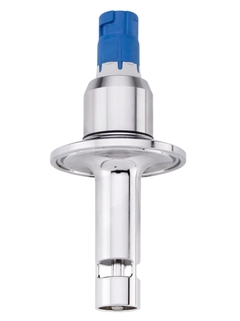

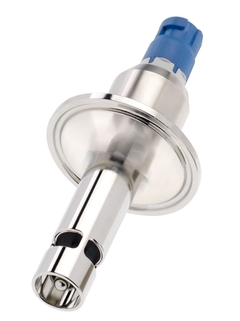

Condumax CLS16D is a digital conductivity probe for hygienic applications in pure & ultrapure water

Digital conductivity sensor
Condumax CLS16D

Memosens conductive conductivity sensor for hygienic applications in pure and ultrapure water

CLS16D
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Digital conductivity sensor Condumax CLS16D
  • F
  • L
  • E
  • X
©Endress+Hauser
Digital conductivity sensor Condumax CLS16D
  • F
  • L
  • E
  • X
©Endress+Hauser
Digital conductivity sensor Condumax CLS16D
  • F
  • L
  • E
  • X
©Endress+Hauser

Kratke specifikacije

  • Measurement range

    k=0,1: 0,04 to 500 µS/cm

  • Process temperature

    -5 to 120 °C (23 to 248 °F)
    For Sterilizsation: max. 150 °C at 5 bar
    (Max. 302 °F at 73 psi)

  • Process pressure

    13 bar at 20 °C (188 psi at 68 °F)
    9 bar at 120 °C (130 psi at 248 °F)

Područje primjene

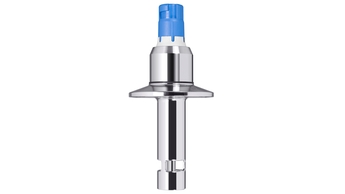

Condumax CLS16D is a high-end conductivity sensor with certified hygienic design. It measures with highest precision providing you with reliable data for optimum process and product quality. Numerous certificates and various hygienic process connections ensure the perfect fit for your process. Condumax CLS16D is not the latest Memosens generation. To get information on the new Memosens CLS16E sensor with extended functionality, click here.

Condumax CLS16D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Ion exchangers

  • Reverse osmosis

  • Distillation

  • Electro-deionizing

  • Water for injection (WFI)

With its international explosion protection approvals, such as ATEX, FM, CSA and NEPSI, the digital sensor is suitable for hazardous area use.

Prednosti

  • Highest precision and measuring accuracy

  • Hygienic design certified by EHEDG

  • Certified biocompatibility according to USP class VI and FDA compliance of all wetted materials

  • Sterilizable and autoclavable

  • Quality certificate stating the individual cell constant

  • Logging of sensor-specific data for easy traceability and predictive maintenance

  • Convenient maintenance strategy with Memobase Plus for easy calibration and sensor management

Videozapisi

  • The conductivity of a liquid can be measured using the conductive or toroidal measuring principles. This video shows what it is about and how these measuring principles work.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
