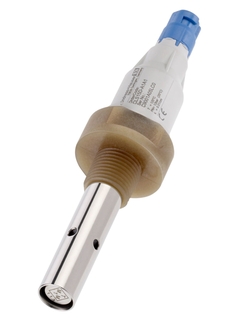

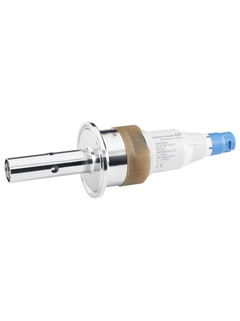

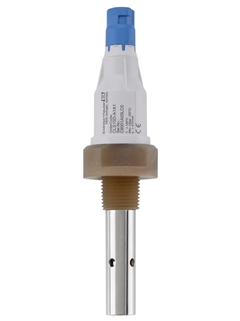

Condumax CLS15D is a reliable, digital conductivity sensor for pure and ultrapure water applications

Digital conductivity sensor
Condumax CLS15D

Memosens conductive conductivity sensor for standard applications in pure and ultrapure water

CLS15D
please wait
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

Kratke specifikacije

  • Measurement range

    k=0,01: 0.04 to 20 µS/cm
    k=0,1: 0.10 to 200 µS/cm

  • Process temperature

    Threaded with fixed cable:
    -20 to 100 °C (-4 to 212 °F)
    Threaded with plug-in head:
    -20 to 120 °C (-4 to 248 °F)
    Sterilization: max. 140 °C (284 °F) for 30 minutes

  • Process pressure

    13 bar at 20 °C (188 psi at 68 °F)
    1 bar at 120 °C (14 psi at 248 °F)

Područje primjene

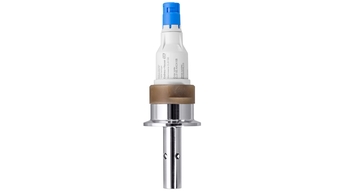

Condumax CLS15D is the digital solution for conductivity measurement in the low measuring ranges. It performs reliably and accurately in a wide range of applications - even in hazardous areas. Designed for low maintenance and a long operating life, the sensor offers best value for money. Condumax CLS15D is not the latest Memosens generation. To get information on the new Memosens CLS15E sensor with extended functionality, click here.

Condumax CLS15D measures conductivity in pure and ultrapure water applications for the monitoring and control of:

  • Ion exchangers

  • Reverse osmosis

  • Cooling water

  • Distillation

  • Chip cleaning

The digital sensor can be used in power plants for:

  • Degassed conductivity

  • pH measurement with differential conductivity

With its international explosion protection approvals, such as ATEX and FM, the sensor is suitable for hazardous area use.

Prednosti

  • Reliable and accurate measuring values at low conductivities

  • Easy to clean thanks to polished measuring surfaces

  • Sterilizable and autoclavable

  • Quality certificate stating the individual cell constant

  • Logging of sensor-specific data for easy traceability and predictive maintenance

  • Maximum process safety via non-contact inductive signal transmission

  • Convenient maintenance strategy with Memobase Plus for easy data and sensor management
