Kratke specifikacije
-
Measurement range
-1500mV to +1500mV
-
Process temperature
0 to 80 °C (32 to 170 °F)
-
Process pressure
1 to 10 bar abs at 80 °C
(15 to 145 psi abs at 176 °F)
Područje primjene

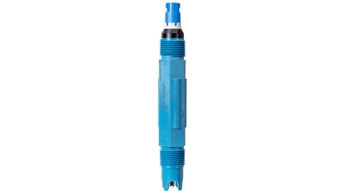

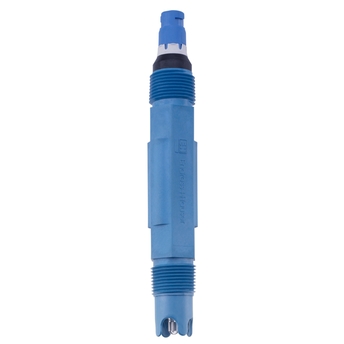

Orbipac CPF82D is the digital simple solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE diaphragm guarantees low maintenance while its integrated assembly saves space and time during flow or immersion installation. Orbipac CPF82D is not the latest Memosens generation. To get information on the new Memosens CPF82E sensor with extended functionality, click here.
Orbipac CPF82D is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
Inlet and outlet
Neutralization
Flotation
Leaching
Prednosti
Suitable for flow and immersion installation
Long-time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN- ions
Robust polymer housing protects against mechanical damage
Maximum process safety through non-contact inductive signal transmission
Enables predictive maintenance due to storage of sensor and process-specific data
Reduced operating costs thanks to minimized process downtime and extended sensor lifetime
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
Također vas može interesirati
8 dokumenti
-
-
Tehničke informacije (TI)
Orbipac CPF81D/CPF82D and CPF81/CPF82
pH/ORP sensors, with digital Memosens technology or analog
For mining operations, industrial water and wastewater treatmentEN HR 15/07/202004/06/202030/11/201401/07/200801/03/2004Jezik:
English
Verzije:
15/07/2020
Veličina datoteke:
499.2 KB
Naziv datoteke:
TI00191CEN_1520.pdf
-
-
-
Upute za uporabu (BA)
pH / ORP senzori i referentne polu stanice
Senzori s tehnologijom Memosens i analogni senzori
EN HR 04/05/202031/12/201730/11/2015Jezik:
Croatian
Verzije:
04/05/2020
Veličina datoteke:
1.1 MB
Naziv datoteke:
BA01572CHR_0320.pdf
-
-
-
EU deklaracija
Product family: CeraGel, CeraLiquid, Ceramax, ConduMax H, ConduMax W, InduMax H, InduMax P, Liquiline, Memosens, Messkabel, Orbi Pac, OrbiPore, OrbiSint, OxyMax H, OxyMax W, TopHit
Product root: CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS54D-, CLS82D-,
CML18-, COS21D-, COS22D-, COS51D-, COS81D-, CPF82D-, CPL51E-
,
CPS11D-, CPS12D-, CPS16D-, CPS171D-, CPS31D-, CPS341D-, CPS41D-,
CPS42D-, CPS441D-, CPS471D-, CPS47D-, CPS491D-, CPS71D-,
CPS72D-,
CPS77D-, CPS91D-, CPS92D-, CPS96D-, CPS97D-, CYK10-, CYK20-
Declaration number: EC_00828_02.20EN HR 14/02/2022Jezik:
English
Verzije:
14/02/2022
Veličina datoteke:
281.9 KB
Naziv datoteke:
EC_00828_03.22_D-Sensoren CML18 EMV_RoHS.pdf
-
-
-
EU deklaracija
Product family: Messkabel, OrbiPac
Product root: CPF81D-, CPF82D-, CYK10-, CYK20-
Declaration number: EC_00657_03.24EN HR 06/01/2023Jezik:
English
Verzije:
06/01/2023
Veličina datoteke:
63.9 KB
Naziv datoteke:
EC_00657_03.23_CPF8xD_nonEx unterschrieben.pdf
-
-
-
Ocijenjena sukladnost za UK
Product family: OrbiPac
Product root: CPF81D-, CPF82D-
Declaration number: UK_00374_01.21Jezik:
English
Verzije:
04/08/2021
Veličina datoteke:
94.6 KB
Naziv datoteke:
UK_00374_01.21 CPF8xD_nonEx.pdf
-
-
-
Zaštita od eksplozije
Product family: InduMax P, Liquiline M, Memosens
Product root: CLS12-, CLS13-, CLS15-, CLS15D-, CLS16-, CLS16D-,
CLS21-, CLS21D-, CLS50-, CLS50D-, CLS82D-, CM42-, COS21D-, COS22D-,
COS51D-, CPF81-, CPF81D-, CPF82-, CPF82D-, CPS11-, CPS11D-, CPS12-,
CPS12D-, CPS13-, CPS16D-, CPS171D-, CPS41-, CPS41D-, CPS42-, CPS42D-,
CPS441-, CPS441D-, CPS471-, CPS471D-, CPS491-, CPS491D-, CPS64-, CPS71-,
CPS71D-, CPS72-, CPS72D-, CPS76D-, CPS91-, CPS91D-, CPS92-, CPS92D-,
CPS96D-, CTS1-, CYK10-, CYP01D-, CYP02D-, OPS171D-
Region: USA
Approval agency: FMJezik:
English
Verzije:
30/11/2020
Veličina datoteke:
523.6 KB
Naziv datoteke:
FM16US0145XSupp15.pdf
-
-
-
Zaštita od eksplozije
Product family: CeraGel, CeraLiquid, ConduMax H, ConduMax W, InduMax P, Memosens, Messkabel, OEM, OrbiPac, OrbiPore, OrbiSint, OxyMa x H, OxyMax W, TopHit
Product root: CLS15D-, CLS16D-, CLS21D-, CLS50D-, CLS82D-, COS21D-, COS22D-, COS51D-, COS81D-, CPF81D-, CPF82D-, CPS11D-, CPS12D-, C
PS16D-, CPS171D-, CPS41D-, CPS42D-, CPS441D-, CPS471D-, CPS491D-, CPS71D-, CPS72D-, CPS76D-, CPS91D-, CPS92D-, CPS96D-, CYK10-, CYK2
0-, OCLS82D-, OCOS81D-, OPS91D-
Region: Canada
Approval agency: CSA
Protection: IS Cl. I Div. 1Jezik:
English
Verzije:
30/08/2023
Veličina datoteke:
263.6 KB
Naziv datoteke:
S2_CoFC_80169522_EN.pdf
-
-
-
Tekst tendera
Orbipac CPF82 D
Digitale Redox-Messelektrode mit kontaktloser, digitaler
Signalübertragung,
Memosenstechnologie (Speicherung Sensorkenndaten im Elektrodenkopf),
ausgeführt
als Kombi-Elektrode mit integriertem Temperaturfühler und
Teflondiaphragma,
eingebaut in PP-AdapterJezik:
German
Verzije:
30/11/2021
Veličina datoteke:
14.7 KB
Naziv datoteke:
TTCPF82DDE.docx
-
