Kratke specifikacije
-
Process temperature
Max. 60 °C
(Max. 140 °F) -
Process pressure
Max. 4 bar relative
(Max. 58 psi relative)
Područje primjene

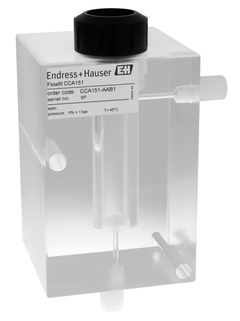

Flowfit CCA151 is a simple flow assembly for disinfection parameters such as chlorine dioxide that do not require pH compensation. Sensors installed in the acrylic glass assembly need only a sample flow as low as 5 l/h (1.32 gph) for accurate measurement. This enables precise control of disinfection processes with minimal water loss. Thanks to flexible mounting options for panels, walls and pipes, Flowfit CCA151 places the disinfection sensor at an optimal position for best measuring results.
CCA151 is a flow assembly for the measurement of disinfection parameters without pH compensation, e.g. chlorine dioxide in:
Drinking water
Utilities of all industries
Applications with low sample volumes
Prednosti

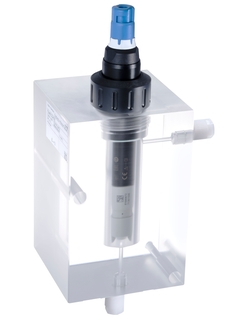

Minimum water loss: When installed in Flowfit CCA151, sensors require a sample flow as low as 5 l/h (1.32 gph) for precise chlorine dioxide measurement. Only a very small volume of water goes to waste.
Reliable measurement: Flexible mounting options allow you to position the sensor exactly where it is needed to accurately determine the chlorine dioxide content.
Cost-effective update of your installed base: Easy replacement of CCA250 thanks to identical dimensions.
-
