Kratke specifikacije
-
Process temperature
-60 °C...+280 °C
(-76 °F...+540 °F)
(300°C / 572°F, 50h cumulated) -
Process pressure / max. overpressure limit
Vacuum...100 bar
(Vacuum...1450 bar) -
Min. density of medium
0.5g/cm³ (0.4g/cm³ optional)
Područje primjene

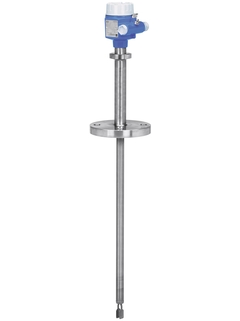

Liquiphant FTL71 is a point level switch with extension tube for use in hazardous areas with all international certificates. FTL71 is especially designed for applications with high process temperatures up to 280°C and can be used up to SIL2, in homogeneous redundancy up to SIL3. An integrated second line of defense offers the highest degree of safety. Reliable measurement values, not affected by: changing media properties, flow, turbulences, gas bubbles, foam, vibrations or build-up.
Point level switch for all liquids.
Process connections: Threads and flanges
Temperature: -60 to +280°C (-76 to +540°F)
Pressure: -1 to +100bar (-14.5 to +1,450psi)
Sensor material: 316L, Alloy (PFA and Enamel on request)
International explosion protection certificates, overfill protection WHG, SIL, marine approvals
Prednosti
Use in safety systems requiring functional safety to SIL2 in accordance with
IEC 61508/IEC 61511-1With welded gas-tight feed-through maximum safety in the event of damaged sensor
Wide variety of electronics, e.g. NAMUR, relay, thyristor, PFM signal output: the right connection for every process control system
Large number of process connections to choose from: universal usage
No calibration: quick, low-cost start-up
No mechanically moving parts: no maintenance, no wear, long operating life.
Monitoring of fork for damage: guaranteed functionFDA approved materials (PFA Edlon)
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Prethodnik
-
-
Tehničke informacije (TI)
Liquiphant S FTL70, FTL71 Technical Information
High-temperature point level switch for all kinds of liquids
EN HR 13/02/201709/07/201016/06/200906/10/2005Jezik:
English
Verzije:
13/02/2017
Veličina datoteke:
962.1 KB
Naziv datoteke:
TI00354FEN_1316.pdf
-
-
-
Upute za uporabu (BA)
Liquiphant M/S FTL50, FTL51, FTL50H, FTL51H, FTL51C, FTL70, FTL71 Electronic insert FEL50A PA
Vibration Limit Switch
Level limit switch for all liquids.
Suitable for use in hazardous areas, food and pharmaceuticalsEN HR 10/08/2004Jezik:
English
Verzije:
10/08/2004
Veličina datoteke:
836 KB
Naziv datoteke:
BA141FEN.pdf
-
-
-
Kratke upute (KA)
Bedienungsanleitung/ Operating Instuction Liquiphant.
Sliding Sleeve
EN HR 01/05/200801/11/1998Jezik:
English
Verzije:
01/05/2008
Veličina datoteke:
314.8 KB
Naziv datoteke:
KA100fa6_0308.pdf
-
-
-
Kratke upute (KA)
Liquiphant S FTL70-########7##, FTL71-########7## Operating Instructions
High-temperature point level switch for all kinds of liquids
EN HR 20/01/201730/06/201631/07/201031/01/200618/03/2004Jezik:
English
Verzije:
20/01/2017
Veličina datoteke:
1.5 MB
Naziv datoteke:
KA00173FA6_1417.pdf
-
-
-
Kratke upute (KA)
Liquiphant S FTL70, FTL71 Operating Instructions
High-temperature point level switch for all kinds of liquids
EN HR 20/01/201729/06/201609/07/201001/02/2006Jezik:
English
Verzije:
20/01/2017
Veličina datoteke:
1.1 MB
Naziv datoteke:
KA00172FA6_1417.pdf
-
-
-
Kratke upute (KA)
Liquiphant M/S FTL51, FTL71, FTL81 Operating Instructions
High Pressure Sliding Sleeve
G 1, NPT 1EN HR 09/05/201731/07/201001/05/200801/10/2005Jezik:
English
Verzije:
09/05/2017
Veličina datoteke:
295.4 KB
Naziv datoteke:
KA00153FA6_1317.pdf
-
-
-
Kratke upute (KA)
Liquiphant M/S FTL51, FTL71, FTL81
High Pressure Sliding Sleeve
G 1 1/2, NPT 1 1/2EN HR 09/05/201731/07/201001/05/200813/10/2005Jezik:
English
Verzije:
09/05/2017
Veličina datoteke:
280 KB
Naziv datoteke:
KA00154FA6_1317.pdf
-
-
-
Kratke upute (KA)
Exchange of sensor on Liquiphant M/S
Exchange of sensor on Liquiphant M/S
EN HR 24/04/2012Jezik:
English
Verzije:
24/04/2012
Veličina datoteke:
398.2 KB
Naziv datoteke:
KA00529FA2_0908.pdf
-
-
-
Kratke upute (KA)
Operating Instuction Liquiphant M FTL 51, FTL71, FTL81
Sliding Sleeve G 1 A, 1 NPT
for Unpressurised Operation.EN HR 09/05/201719/10/2005Jezik:
English
Verzije:
09/05/2017
Veličina datoteke:
158.9 KB
Naziv datoteke:
KA00151FA6_1317.pdf
-
-
-
Kratke upute (KA)
Bedienungsanleitung/ Operating Instuctions Liquiphant M/S + FEL57
Selbsttest
Self testEN HR 27/02/201701/03/2002Jezik:
English
Verzije:
27/02/2017
Veličina datoteke:
227.1 KB
Naziv datoteke:
KA00147FA6_1316.pdf
-
