Radar measurement
Micropilot FMR62

For 80GHz level measurement in aggressive liquids or applications with hygiene requirements

FMR62

Usporedite

Kratke specifikacije

Accuracy

+/- 1 mm (0.04 in)
Process temperature

-40…+200 °C
(-40…+392 °F)
Process pressure / max. overpressure limit

Vacuum…+25 bar
(Vacuum…+362.6 psi)
Max. measurement distance

80 m (262 ft)
Main wetted parts

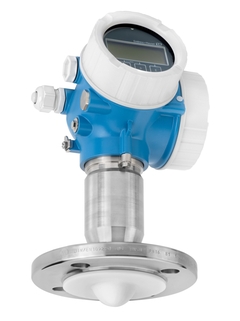

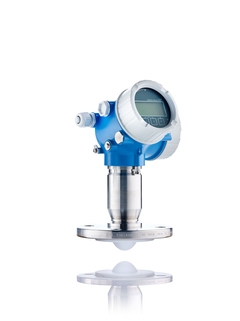

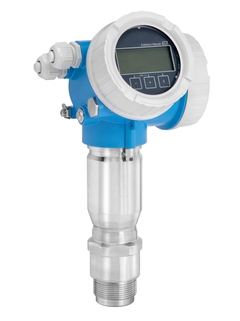

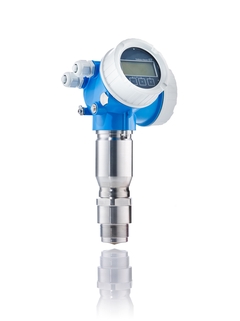

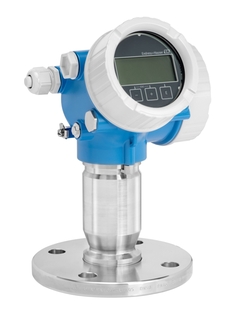

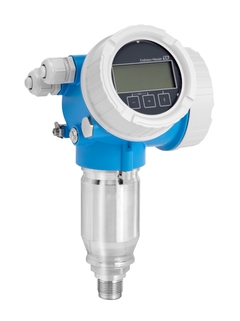

PTFE or PEEK antenna,
316L threads,
PTFE cladded flanges

Prikaži sve specifikacije

Područje primjene

Micropilot FMR62 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. For applications in aggressive liquids, FMR62 offers extraordinary advantages with its completely PTFE-filled and flush-mounted antenna. The integrated PEEK antenna allows very small process connections. The FMR62 free space radar offers maximum reliability due to improved algorithms and small beam angle. It also possesses the smart sensor functionality Heartbeat Technology.

Micropilot FMR62 is suited for free space applications up to 80m and offers high beam focusing for vessels with many internal fittings.

Process connections: Threads or flanges
Temperature: -40 to +200°C (-40 to +392°F)
Pressure: -1 to +25bar (-14.5 to +362.6psi)
Maximum measuring range: 80m (262ft)
Accuracy: ±1mm (0.04in)
W-band: 80GHz
International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol

Prednosti

Hardware and software developed according to IEC 61508 up to SIL3 in homogeneous redundancy
Heartbeat Technology for cost-effective and safe plant operation during the entire life cycle
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even with obstructions in vessels due to small beam angle and Multi-Echo Tracking evaluation
PTFE-filled and flush-mounted horn antenna for maximum system availability
Reduction of engineering effort due to an easier integration of the 80GHz radar instrument into the process
The world's easiest proof test concept for SIL and WHG saves time and costs

Videozapisi

Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking
Unique HistoROM data management concept for safe level measurement
