Radar measurement

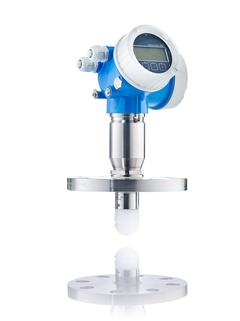

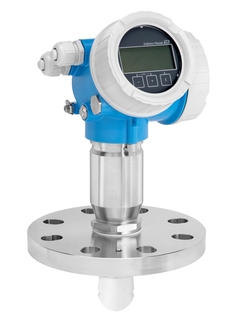

Micropilot FMR60

The standard sensor for highest demands in liquid level measurement with 80GHz technology

FMR60

Usporedite

Kratke specifikacije

Accuracy

+/- 1 mm (0.04 in)
Process temperature

-40…+130 °C
(-40…+266 °F)
Process pressure / max. overpressure limit

Vacuum …16 bar
(Vacuum … 232 psi)
Max. measurement distance

50 m (164 ft)
Main wetted parts

PTFE antenna
PP or 316L process connections

Prikaži sve specifikacije

Područje primjene

Micropilot FMR60 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.

80GHz drip-off antenna suited for free space applications up to 50m and offers high beam focusing for vessels with many internal fittings.

Process connections: Threads or flanges
Temperature: –40 to +130°C (–40 to +266°F)
Pressure: –1 to +16bar (–14.5 to +232psi)
Maximum measuring range: 50m (164ft)
Accuracy: ±1mm (0.04in)
W-band: 80GHz
International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol

Prednosti

Hardware and software developed according to IEC 61508 up to SIL3 in homogeneous redundancy
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even with obstructions in vessels due to small beam angle and Multi-Echo Tracking evaluation
Reduction of engineering effort due to an easier integration of the 80GHz radar instrument into the process
Innovative drip-off antenna of PTFE for maximum system availability
The world's easiest proof test concept for SIL and WHG saves time and costs
