Radar measurement
Time-of-Flight

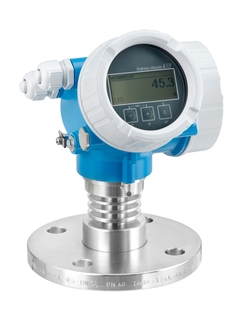

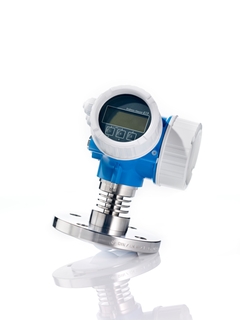

Micropilot FMR52

For level measurement in aggressive liquids or applications with hygiene requirements

FMR52

Usporedite

Micropilot FMR52 plastic housing with Tri-Clamp

Kratke specifikacije

Accuracy

+/- 2 mm (0.08 in)
Process temperature

-196...+200 °C
(-321...+392 °F)
Process pressure / max. overpressure limit

Vacuum...25 bar
(Vacuum...363 psi)
Max. measurement distance

Standard: 40 m (131 ft)
With advanced dynamics: 60 m (197 ft)
Main wetted parts

PTFE

Prikaži sve specifikacije

Područje primjene

For applications in aggressive liquids Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

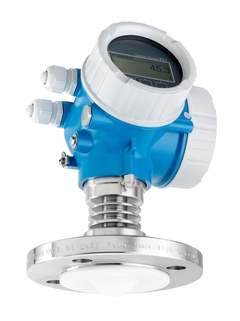

Flush-mounted, completely PTFE-encapsulated horn antenna.

Process connections: Flush-mounted with cladded flange, process connections for hygiene requirements (Tri-Clamp, 11851)
Temperature: -196 to +200°C (-320,8 to +392°F)
Pressure: -1 to +25bar (-14.5 to +362psi)
Maximum measuring range: 40m (131ft), 60m (197ft) for enhanced dynamics
Accuracy: ±2mm
K-band: 26GHz
International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval

Prednosti

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
Reliable non-contact measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test concept for SIL and WHG saves time and cost

Videozapisi

Time-of-Flight measuring principle
Commissioning movie for Micropilot FMR5x free space radar and Levelflex FMP5x guided radar
Unique HistoROM data management concept for safe level measurement
Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking
Micropilot with Advanced Dynamics offering more reliable measuring signals even in the case of turbulences
Micropilot FMR5x with Advanced Diagnostic functions offers foam detection
