Guided radar measurement
Time-of-Flight

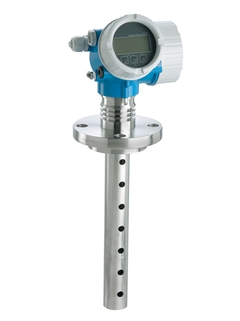

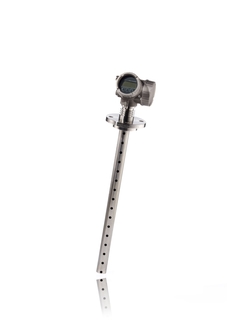

Levelflex FMP55

The Multiparameter device is the innovation in interface measurement

FMP55

Usporedite

Kratke specifikacije

Accuracy

Rod probe :
+/- 2 mm (0.08 in)
Rope probe:
+/- 2 mm (0.08 in)
Coaxial probe:
+/- 2 mm (0.08 in)
Process temperature

-40...+200 °C
(-40...+392 °F)
Process pressure / max. overpressure limit

Vacuum...40 bar
(Vacuum...580 psi)
Max. measurement distance

Rod: 4 m (13 ft)
Min DK >1.4
Rope: 10 m (33 ft)
Min DK >1.4
Coaxial: 6 m (20 ft)
Min DK >1.4
Main wetted parts

Rod probe:
316L, PTFE, PFA
Rope probe:
316, 316L, PTFE, PFA
Coaxial probe:
316L, PTFE, PFA

Prikaži sve specifikacije

Područje primjene

Levelflex FMP55 guided radar with SensorFusion offers the worldwide first combination of the capacitance and guided radar measuring principle in one device. The instrument guarantees safe measured value acquisition even in emulsion layers and issues level and interface layer signals simultaneously. This makes the FMP55 Multiparameter the new standard in interface measurement especially in the oil & gas, chemical and petrochemical industry.

Version with rod, rope or coax probe.

Process connections: Thread or flange
Temperature: -50 to +200°C (-58 to +392°F)
Pressure: -1 to +40bar (-14.5 to +580psi)
Maximum measuring range: Rod 4m (13t), rope 10m (33ft), coax 6m (20ft)
Accuracy: Rod ±2mm (0.08")
International explosion protection certificates, overfill prevention WHG, SIL, marine approval

Prednosti

Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
Worlds easiest proof test for SIL and WHG saves time and costs

Videozapisi

Time-of-Flight measuring principle
Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar
Unique HistoROM data management concept for safe level measurement
Levelflex FMP55 Multiparameter with SensorFusion measures level and interface layer signals simultaneously
Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

Xpert odabir

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

Xpert: Master your most challenging applications

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Vrhunski proizvodi
Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

FLEX odabir	Tehnička izvrsnost	Jednostavnost
F L E X Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju	Tehnička izvrsnost	Jednostavnost
F L E X Lean odabir Jednostavno upravljajte svojim osnovnim procesima	Tehnička izvrsnost	Jednostavnost
F L E X Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama	Tehnička izvrsnost	Jednostavnost
F L E X Xpert odabir Ovladajte svojim najizazovnijim aplikacijama	Tehnička izvrsnost	Jednostavnost Promjenjivo

Saznajte više o FLEX odabiru

Loading alternative products

Prethodnik

Float Gauge LTC2230

Uspješne priče

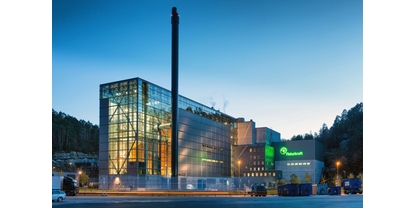

Time saved, safety increased

Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.
Pročitajte cijelu priču

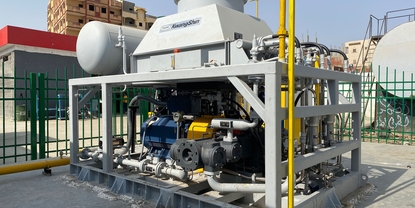

Fit for purpose instrumentation for CNG compressors

The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
Pročitajte cijelu priču

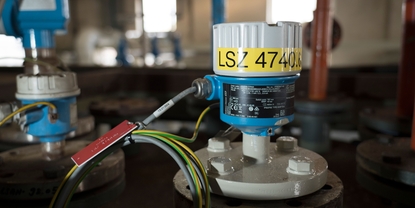

Extend SIL proof test intervals with new Liquiphant FTL51

Discover how our customer CABB was able to extend SIL proof test intervals with the new Liquiphant FTL51
Pročitajte cijelu priču

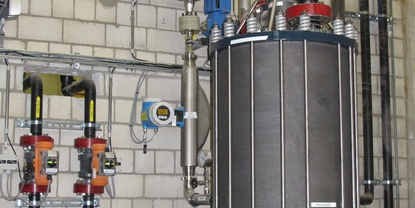

Optimized logistics concept for tank systems
