Capacitance
Point level detection
Liquipoint FTW23

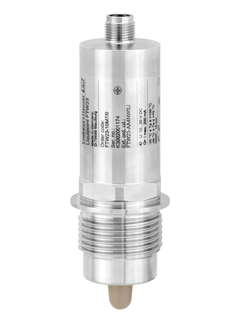

Liquipoint FTW23 ©Endress+Hauser

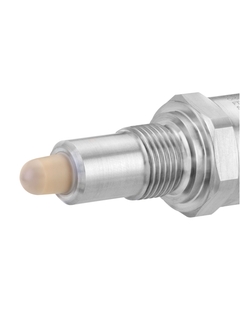

Liquipoint FTW23 ©Endress+Hauser

Liquipoint FTW23 demonstration in different media

FTW23 part of a strong team for standard applications - Liquiphant, Liquipoint, Cerabar, Ceraphant

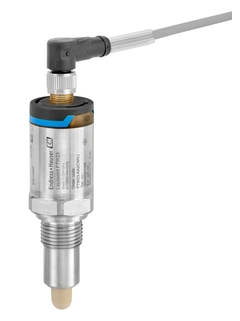

Liquipoint FTW23 ©Endress+Hauser

Cost effective point level switch for water-based liquids

The Liquipoint FTW23 is developed and built for the food industry and meets all international hygiene requirements. The device also fits perfectly for industrial applications in all industries. It is intended for use in applications in liquid media without build-up. The IO-Link capability allows easy parameter setting.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Process temperature

      Standard:
      -20 ... 100°C
      Cleaning:
      -20 ... 135°C for 1h
      -4 ... 275F for 1h

    • Process pressure absolute / max. overpressure limit

      Vacuum ... 16 bar
      Vacuum ....232 psi

please wait Loading alternative products

Brza selekcija

Odaberite iz ponuđenih opcija
Prodajna cijena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • Easy installation thanks to compact design, even in tight conditions or where access is restricted

    • IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools

    • CIP and SIP cleanability ensured - up to protection...

  • Područje primjene

    For use in storage tanks, mixing vessels and pipes. For water-based liquids; Ex works for media with dielectric constant > 20, with adjustment via IO-Link for media with dielectric constant > 1.5 discernible.

    • Process connections: Threads

    • Temperature: -...

Značajke i specifikacije

Nazad

Detalji

  • Mjerni princip

    Capacitive Liquid

  • Characteristic / Application

    Compact point level switch for using in water based liquids

  • Specialities

    CIP and SIP suitable

  • Supply / Communication

    10…30 V DC

  • Ambient temperature

    -20...70°C

    -4... 158°F

  • Process temperature

    Standard:
    -20 ... 100°C

    Cleaning:

    -20 ... 135°C for 1h

    -4 ... 275F for 1h

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 16 bar

    Vacuum ....232 psi

  • Main wetted parts

    Sensor: 316L

    Sensor isolation: PEEK

  • Process connection

    Thread G1, G1/2, G3/4, M24

  • Communication

    DC PNP

    IO- Link

  • Certificates / Approvals

    CSA C/US

  • Design approvals

    EN 10204-3.1

  • Hygienic approvals

    3A, EHEDG

  • Options

    Weld-in adapter,

    Process adapter for hygienic process connections

  • Application limits

    Conductive foam is recognizes as a liquid

Dokumenti / Upute / Softver

Pribor / Rezervni dijelovi

Br
Kod za naručivanje
Specifikacija
    • Kod za naručivanje

      Unit is not repairable.

    • Kod za naručivanje 52006263

      M12-female plug connector, cable side

      M12 plug socket, cable side Self confectionery connection. Usage: FMB50/FMB51/FMB52/FMB53, FMB70, FTL31/FTL33, FTW23, FTW33,PMP11, PMP21, PMP51, PTC31B, PTP31B, QMW43.

    • Kod za naručivanje 52024216

      Cable 4x0,34, box M12, 316L, 90o, L=5m

      M12x1 plug. 5m cable PVC, 316L lock. Especially for hygiene applications. Usage: FTL33, FTL50, FTL51B, FTL62/FTL64, FTL80/FTL81/FTL85, FTW23, FTW33, QMW43.

    • Kod za naručivanje 52018763

      M12 socket,90o,316L,IP69,LED,cable L=5m

      M12x1 plug socket 90o, 4-pin, integrated LED. 5m cable, PVC, 316L screw lock. Hygienic applications, IP69. Usage: FTL31/OFTL31, FTL33/OFTL33, FTW23/OFTW23, FTW33/OFTW33, FTI26/OFTI26, QMW43.

    • Kod za naručivanje 52010285

      M12-female plug connec., 90deg, 5m cable

      M12 plug socket, cable side. 5m cable PVC, Cu Sn/Ni lock. Usage: FMB50/FMB51/FMB52/FMB53, FTL31/FTL33, FTL51B, FTL62/FTL64, FTW23, FTW33, PMC11, PMC21, PMC51, PMP11, PMP21/PMP23, PMP51/PMP55, PTC31B, PTP31B/PTP33B, QMW43, QWX43.

    • Kod za naručivanje 52010156

      Socket wrench 32AF

      Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Kod za naručivanje 71267011

      Test magnet

      Usage: FTL20/FTL20H, FTL31/FTL33, FTL50/FTL50H/FTL51/FTL51H, FTW23, FTW33.

  • 57
    • Br 57 Kod za naručivanje 71194296

      Sealing ring G1/2, 21x26, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33.

    • Br 57 Kod za naručivanje 71185027

      Sealing ring G3/4, 27x32, FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FMP50/FMP51/FMP56, FMR62, QMW43, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51, FTL80/FTL81.

    • Br 57 Kod za naručivanje 52014048

      Sealing ring G1, 33x39 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI51/FMI52, FTI51/FTI52, FTI55, FTL31/FTL33, FTW23/FTW33, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43. Sliding sleeve G1 316L (52003663), 316L, 3.1 (52011880), AlloyC22, 3.1 (71118691), FTL51, FTL71, FTL81, AlloyC22 (52003664), FTL51, FTL71.

    • Kod za naručivanje

      Weld-in adapter and correspondig sealings

    • Kod za naručivanje 71258357

      Weld-in adapter G3/4, d=29, 316L

      Flush mount process connection. For pipe-mounting. Material: 316L. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, QMW43.

    • Kod za naručivanje 52028295

      Weld-in adapter G3/4, d=29, 316L, 3.1

      Flush mount process connection. For pipe-mounting. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Kod za naručivanje 71258355

      Weld-in adapter G3/4 d=50, 316L

      Flush mount process connection. For vessel-mounting. Material: 316L. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FTL20/FTL20H, FTL31/FTL33, FTW23, FTW33, FMI51, FTI51, QMW43, 11371. Usage: TMR35.

    • Kod za naručivanje 52018765

      Weld-in adapter G3/4 d=50, 316L, 3.1

      Flush mount process connection Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FMI51, FTI51, FTL20/FTL20H, FTL31/FTL33, FTW23/FTW33, QMW43, 11371. Usage: TMR35.

    • Kod za naručivanje 71529759

      Sealing ring 15,08x2,62 EPDM, 5 pcs

      Material: EPDM Usage: weld-in adapter G3/4", d29, 316L (71258357 / 52028295), FTW23, FTW33, QMW43, 11371, FTL31, FTL33 weld-in adapter G3/4", d50, 316L (71258355 / 52018765) FMI51, FTI51 FTW23, FTW33, QMW43, 11371, FTL31, FTL33

    • Kod za naručivanje 71258358

      Weld-in adapter G1, d=53, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL51B, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Kod za naručivanje 71093129

      Weld-in adapter G1, d=53, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material Seal: silicone O-ring FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTL330H/FTL330L, FTW23, FTW33, PMP135, PTP35, QMW43.

    • Kod za naručivanje 52001051

      Weld-in adapter G1, d=60, 316L

      Flush mount process connection. Material: 316L. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20/FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.

    • Kod za naručivanje 52011896

      Weld-in adapter G1, d=60, 316L, 3.1

      Flush mount process connection. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: silicone O-ring. FDA, 3-A compliant. additional EPDM O-ring. FDA, EHEDG, 3-A, USP Class VI compliant. Usage: FMI51/FMI52, FTI51/FTI52, FTL20H, FTL31/FTL33, FTL41, FTL50/FTL50H, FTL51/FTL51B/FTL51C/FTL51H, FTL80/FTL81, FTL260, FTW23, FTW33, PMP23, PMP51, PMP135, PTP33B/PTP35, QMW43, TM401/TM411, TMR35.

    • Kod za naručivanje 71041381

      Weld-in adapter M24 D65, 316L

      Flush mount process connection. Core hole: 65mm. Material: 316L. Seal: EPDM O-ring FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71041383

      Weld-in adapter M24 D65, 316L, 3.1

      Flush mount process connection. Core hole: 65mm. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM O-ring. FDA, EHEDG, 3-A compliant. Usage: FMP53, FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71086117

      O-ring 14.9x2.7 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ 80. USP Class VI. Usage: Weld-in adapter G3/4, 316L, (71258355) vesselmounting, (71258357) pipe-mounting, flush mount, FTL31/FTL33, FTW23/FTW33, QMW43, Weld-in adapter G3/4, 316L, 3.1, (52018765) vesselmounting, (52028295) pipe-mounting, flush mount, FMI51, FTI51, FTL31/FTL33, FTW23/FTW33, QMW43.

    • Kod za naručivanje 52014472

      O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

      Material: silicone VMQ 70. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Kod za naručivanje 71086102

      O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

      Material: silicone VMQ. USP Class VI. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Kod za naručivanje 71140668

      O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

      Material: EPDM 70. USP Class VI, 3-A. Usage: weld-in adapter G1, 316L, (52001051) flush mount, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81, QMW43, Weld-in adapter G1, 316L, 3.1, (52011896) flush mounted, FMI51/FMI52, FTI51/FTI52, FTL31/FTL33, FTW23/FTW33, PMP23, PMP51, PTP33B, FTL50/FTL50H/FTL51/FTL51H, FTL80/FTL81,QMW43, sliding sleeve FTM21.

    • Kod za naručivanje 52014424

      Profile gasket 29x36x3.7, FDA, 5 pcs.

      Material: silicone VMQ. Usage: Process connect. G1 flush mount, Weld-in adapter G1, 316L, adjustable (52001221), Weld-in adapter G1, 316L, 3.1, adjustable (52011898), FTL31/FTL33, FTL80/FTL81, FTL50/FTL50H/FTL51/FTL51H, Weld-in adapter Rd52, 316L, adjustable, (52001047), 316L, 3.1, adjustable, (52006909), FTL33, FTL50/FTL50H/FTL51/FTL51H, QMW43.

    • Kod za naručivanje 52023997

      Proc. adap. M24 Variv N DN40 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024004

      Proc.adap.M24 Variv N DN40 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52023996

      Process adap. M24 Variv F DN25 PN40 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024003

      Proc.adap.M24 Variv.F DN25 PN40 316L 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52023998

      Process adapter M24 DIN11851 DN50, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024005

      Process adap. M24 DIN11851 DN50,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52026997

      Process adapter M24 SMS 1-1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52026999

      Process adapter M24 SMS 1-1/2",316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52023994

      Process adap. M24 Clamp 1...1 1/2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52023995

      Process adapter M24 Clamp 2", 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52023999

      Process adapter M24 DIN11851 DN40, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024000

      Process adapter M24 APV-Inline, 316L

      M24 female. Material: 316L. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024001

      Process adap. M24 Clamp 1 1/2, 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024002

      Process adapter M24 Clamp 2", 316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024006

      Process adap. M24 DIN11851 DN40,316L,3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 52024007

      Process adapter M24 APV-Inline,316L, 3.1

      M24 female. Material: 316L. Inspection cert. EN10204-3.1 material. Seal: EPDM 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTP33B, QMW43. Exchange process connection PTP35.

    • Kod za naručivanje 71477801

      Pipe assembly DN25, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477803

      Pipe assembly DN32, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477807

      Pipe assembly DN40, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477808

      Pipe assembly DN50, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477812

      Pipe assembly Clamp DN25, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477813

      Pipe assembly Clamp DN32, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477816

      Pipe assembly Clamp DN40, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 71477817

      Pipe assembly Clamp DN50, flush mount

      Usage: FTW23/FTW33, PMP23, PTP33B, QMW43.

    • Kod za naručivanje 52024267

      EPDM O-rings process adapter M24

      5x O-ring 15.54x2.62mm. FDA, EHEDG, 3-A conform. Usage: FTL33, FTW23, FTW33, PMP23, PTC31, PTP31/PTP33B/PTP35, QMW43. process adapter M24.
