Liquicap FMI52 - Capacitance level measurement

Capacitance
Level measurement

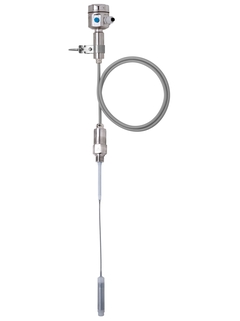

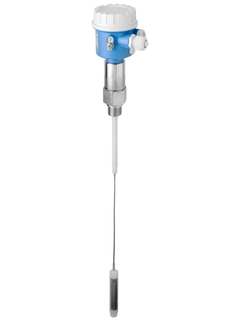

Liquicap FMI52

For continuous level and interface measurement in liquids - for large measuring ranges

FMI52
Please Wait (spinning wheel)
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

Kratke specifikacije

  • Accuracy

    repeatablity 0,1%

  • Process temperature

    -80°C...200°C
    -112°F...392°F

  • Process pressure / max. overpressure limit

    Vacuum ... 100 bar
    (Vaccum ... 1450 psi)

  • Max. measurement distance

    0.42 m ... 10.0 m
    (1.38 ft ... 33 ft)

  • Main wetted parts

    Insulation material: FEP,PFA
    316L

Područje primjene

Liquicap FMI52 is a reliable fully insulated rope probe for continuous level monitoring in liquids, particularly in small tanks, build-up forming media and extremely high temperatures - especially for large measuring ranges. The measurement is independent of the dielectric constant (dc). Used in conjunction with Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

Device is independent of the dielectric constant (dc) as of a liquid conductivity of 100μS/cm and allows measurement of various liquids without the need for recalibration.

  • Process connections: Flanges and threads

  • Process pressure: Vacuum to +100bar (vacuum to 1,450psi)

  • Measuring range: 0.42 to 10.0m (1.38 to 33ft)

  • Temperature: -80 to +200°C (-112 to +392°F)

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals

Prednosti

  • Use also in safety systems requiring functional safety to SIL2 in accordance with IEC 61508

  • Reliable and universal application thanks to wide range of certificates and approvals

  • No calibration necessary (factory preconfiguration). No calibration necessary for media with a conductivity of 100μS/cm and higher

  • Material in contact with the process made of corrosion-resistant material

  • Menu-guided local configuration via plain text display (optional)

  • Two-stage overvoltage protection
