Capacitance
Level measurement

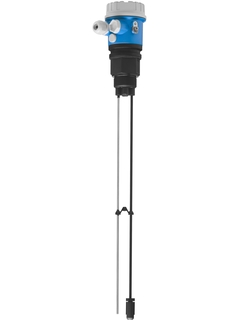

Liquicap FMI21

Liquicap FMI21 ©Endress+Hauser

For continuous level measurement in conductive liquids

Liquicap FMI21 is a simple and cost-effective rod probe for continuous level measurement for conductive liquids. High quality non-corrosive materials (carbon fibre, stainless steel) make it suitable even for aggressive liquids (e.g. acids and alkalis). Used in conjunction with the Fieldgate FXA320 (remote measured value interrogation using Internet technology), Liquicap is an ideal solution for Inventory Management Solutions.

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Accuracy

      < 1%

    • Process temperature

      -40 °C ... 100 °C
      (-40 °F ... 212 °F)

    • Process pressure absolute / max. overpressure limit

      Vacuum ... 10 bar
      (Vacuum ... 145 psi)

    • Max. measurement distance

      2.5 m (8 ft)

    • Main wetted parts

      Probe rods:
      316L/1.4404 / PP
      Option: carbon fibre PP coated

please wait Loading alternative products

Brza selekcija

Odaberite iz ponuđenih opcija
Prodajna cijena
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama
  • Prednosti

    • Safe and reliable function regardless of tank geometry

    • No calibration necessary (factory preconfiguration)

    • High quality, non-corrosive materials (carbon fibre, stainless steel) for use in aggressive liquids

    • No moving parts in tank

    • Cost-effective solution...

  • Područje primjene

    The device is preconfigured from factory 0 to 100% to probe length ordered. It can be used as of a conductivity of 30μS/cm and the measurement is independent of the dc-value (dielectric constant) of the liquid. Suited for cistern measurements.

    • Process...

Značajke i specifikacije

Nazad

Detalji

  • Mjerni princip

    Capacitive

  • Characteristic / Application

    Two-rod probe
    Preconfigured from factory 0%...100%
    High quality, non-corrosive materials (carbon fibre, stainless steel)

    Suitable for aggressive liquids (many acids and alkalis)

  • Specialities

    Probe shorting kit available

  • Supply / Communication

    10 ... 30VDC

  • Accuracy

    < 1%

  • Ambient temperature

    -40 °C ... 70 °C
    (-40 °F ... 158 °F)

  • Process temperature

    -40 °C ... 100 °C
    (-40 °F ... 212 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 10 bar
    (Vacuum ... 145 psi)

  • Main wetted parts

    Probe rods:
    316L/1.4404 / PP
    Option: carbon fibre PP coated

  • Process connection

    G 1½
    NPT 1½

  • Sensor length

    Total length of probe 2.5 m

  • Max. measurement distance

    2.5 m (8 ft)

  • Communication

    4 ... 20 mA

  • Certificates / Approvals

    ATEX, CSA, CSA C/US

  • Safety approvals

    Overfill prevention WHG

  • Options

    Display

  • Application limits

    Changing, non-conductive
    media, conductivity
    < 3 0 μS/cm

    Highly viscous liquids
    > 2 000 cst

Dokumenti / Upute / Softver

Pribor / Rezervni dijelovi

Br
Kod za naručivanje
Specifikacija
  • 20
    • Br 20 Kod za naručivanje 52025605

      Cover F16 high, transparent, gasket

      Display cover, gasket EPDM. Usage: housing Polyester, FMI21, FMI51/FMI52, FMU30.

    • Br 20 Kod za naručivanje 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

  • 21
  • 30
  • 40
    • Br 40 Kod za naručivanje 52025604

      Digital display, holder

      4-digit + 0-100% bargraph display. Holder. Please order high transparent cover separately. Usage: FMI21.

  • 55
    • Kod za naručivanje 52024300

      Shorting kit FMI21

      Usage: Liquicap T.

    • Kod za naručivanje 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

  • 57
    • Br 57 Kod za naručivanje 52014047

      Sealing ring G1-1/2, 48x55 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.

    • Kod za naručivanje 52014146

      Mounting nut G1-1/2

      Hexagon, SW60. Usage: Liquipoint T, Liquicap T, Prosonic M FMU40, Prosonic T FMU30, FMR10, FMR20.
