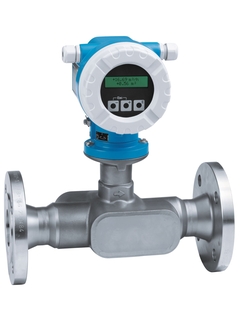

Picture of ultrasonic flowmeter Proline Prosonic Flow 92F for the chemical & petrochemical industry

Proline Prosonic Flow 92F
ultrasonic flowmeter

Highly accurate, loop-powered flowmeter with innovative parallel path design for minimum inlet runs

92F
please wait
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

Kratke specifikacije

  • Max. measurement error

    Volume flow (standard):
    - ±0.5 % o.r. for 0.5 to 10 m/s (1.6 to 33 ft/s)
    Volume flow (option):
    - ±0.3 % o.r. for 0.5 to 10 m/s (1.6 to 33 ft/s)

  • Measuring range

    0.5 to 10 m/s (1.6 to 33 ft/s)

  • Medium temperature range

    -40 to +150 °C (-40 to +302 °F)
    -40 to +200 °C (-40 to +392 °F) optional

  • Max. process pressure

    PN 40 / ASME Cl. 300 / JIS 20K

  • Wetted materials

    Sensor:
    A351-CF3M (DN25 to 100)
    1.4404/TP316/TP316L or A106 GrB (DN150 to 300)
    Transducer: 1.4404/316/316L
    Flanges : 1.4404/316/316L or A105/1.0432

Područje primjene

Prosonic Flow F is the inline sensor with rugged industrial design for Ultrasonic fluid measurement. Combined with the loop-powered Prosonic Flow 92 transmitter, the device offers easy system integration and accuracy at an attractive price. Prosonic Flow 92F is ideally suited for the chemical and petrochemical industries.

  • The measuring principle is independent of pressure, density, temperature, conductivity and viscosity

  • Inline device for homogeneous conductive and non-conductive liquids in the chemical and petrochemical industry

Device properties:

  • Full compliance according to NACE MR0175 and MR0103

  • Nominal diameter: DN 25 to 300 (1 to 12")

  • Medium temperature: –40 to 200 °C (–40 to 392 °F)

  • Device as compact or remote version

  • 2-line backlit display with push buttons

  • HART, PROFIBUS PA, FOUNDATION Fieldbus

Prednosti

  • Safe design for process industries – international hazardous area approvals

  • No additional pressure loss – full-bore design

  • Process transparency – diagnostic capability

  • Easy installation and reduced installation costs – loop-powered transmitter

  • Fully industry compliant – IEC/ATEX/FM/CSA/JPN/NEPSI

  • Automatic recovery of data for servicing
