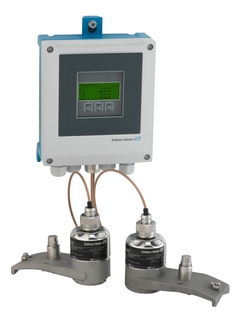

Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 (9W4B)

Proline Prosonic Flow W 400 ultrasonic clamp-on flowmeter

Reliable, flexible, zero maintenance – noninvasive flow measurement, consistently accurate, even in limited spaces

9W4B
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 (9W4B)
  • F
  • L
  • E
  • X
©Endress+Hauser

Ultrasonic clamp-on flowmeter Proline Prosonic Flow W 400 – noninvasive and easy to install – no process interruption – maintenance-free operation

Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 in limited space
  • F
  • L
  • E
  • X

When space is limited: Ultrasonic clamp-on flowmeter with FlowDC function for consistently high performance even at only 2 x DN inlet runs

Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 on a DN 2000 pipe
  • F
  • L
  • E
  • X

Ultrasonic flow measurement in an energy plant – maintenance-free clamp-on sensors on a DN 2000 pipe

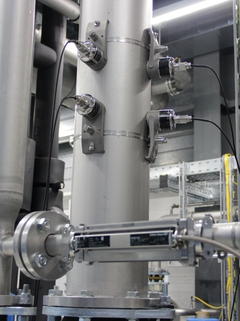

Picture of ultrasonic flowmeter Proline Prosonic Flow W 400 in spite of disturbed flow profile
  • F
  • L
  • E
  • X

Consistently high measurement performance in spite of disturbed flow profile – Prosonic Flow W 400 with FlowDC

Ultrasonic clamp-on flowmeter Proline Prosonic Flow W 400 – noninvasive and easy to install – no process interruption – maintenance-free operation

Heartbeat Technology

Kratke specifikacije

  • Max. measurement error

    Volume flow:
    ±3% o.r. for DN15
    ±2% o.r. for DN25 to 200
    ±2% o.r. above DN200

  • Measuring range

    0 to 15 m/s (0 to 50 ft/s)

  • Medium temperature range

    –40 to +130 °C (–40 to +266 °F)

  • Max. process pressure

    N/A

Područje primjene

Prosonic Flow W 400 is the ultrasonic clamp-on flowmeter of choice for safe, cost-effective and maintenance-free measurement of conductive and non-conductive liquids. It measures flow noninvasively and bidirectionally, independent of pressure, density and conductivity, and without process interruption.

FlowDC makes mounting as flexible as never before. The specified accuracy is maintained at an inlet run of only 2 x DN, even in the case of disturbed flow profiles.

Special coupling pads make this ultrasonic clamp-on system maintenance-free during the entire product life cycle.


Heartbeat Technology provides continuous process transparency with its diagnostic, verification and monitoring functions. This way, build-up can be detected before it affects operation.

Prednosti

  • Flexible mounting – FlowDC reduces inlet runs to a minimum

  • Reliable measurement performance – proven sensors in combination with maintenance-free mounting system deliver long-term stable signals

  • Low capital investment – cost-effectiveness increases with the pipe diameter (up to DN 4000/160")

  • User-friendly operation – the web server offers full remote access, while the device’s display offers convenient on-site interaction

  • Transparent process insights – Heartbeat Technology with its integrated diagnostics, verification and monitoring functions enable compliance and process safety at all times

Videozapisi

  • How FlowDC function reduces inlet runs to a minimum

  • Straightforward application of FlowDC in practice

  • The ultrasonic flow measuring principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Extended odabir

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

FLEX: Extended ©Endress+Hauser

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo
Loading alternative products

Prethodnik

Uspješne priče

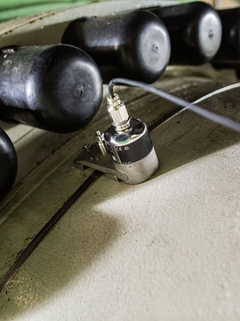

  • Tough conditions: Installation at the difficult-to-access measuring point Tough conditions: Installation at the difficult-to-access measuring point

    Reliable flow measurement despite difficult conditions

    Schluchseewerk AG wanted to record and optimize the efficiency of its turbines at the pumped storage plant in Wehr. Endress+Hauser offers the optimum solution with its ultrasonic clamp-on flowmeter.

  • Picture of the water reservoir Marbach (Germany) Picture of the water reservoir Marbach (Germany)

    Smart monitoring system for potable water treatment

    With Netilion Network Insights, Oberzent's water masters now see all relevant data points of their water system on a cloud-based dashboard without having to drive to the plants.

  • Wastewater sampling in a shaft Wastewater sampling in a shaft

    Wastewater measurement that works

    Check out how Hofbrauhaus Freising samples wastewater with Promag L 400 in a nearly inaccessible shaft.

  • Picture of Promag W measuring tube with build-up Picture of Promag W measuring tube with build-up

    Build-up monitoring

    A water treatment plant in Germany faced the problem of unexpected downtime due to clogged water wells. With Heartbeat Technology build-up index the customer now monitors iron build-up in his process.

  • air view of thyssenkrupp Presta AG in Oberegg (Switzerland) air view of thyssenkrupp Presta AG in Oberegg (Switzerland)

    Optimized cleaning for maximum product quality

    Reliable monitoring of cleaning media in part cleaning machines at thyssenkrupp Presta AG in Oberegg (Switzerland)
