Kratke specifikacije
-
Max. measurement error
±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)
±0.5 % o.r. ± 1 mm/s (0.04 in/s)
±5 % o.r. -
Measuring range
0.14 to 1.66 l/s (0.035 to 0.44 gal/s)
-
Medium temperature range
Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
Seal material Viton: 0 to +150 °C (+32 to +302 °F) -
Max. process pressure
PN 16
-
Wetted materials
Liner: PFA
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
Platinum
Područje primjene

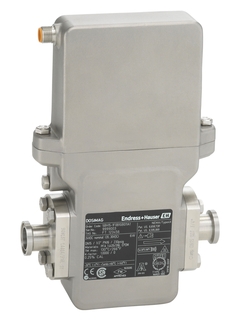

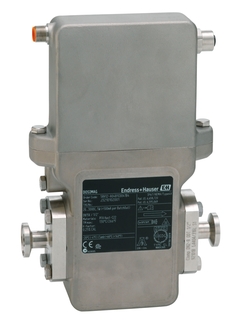

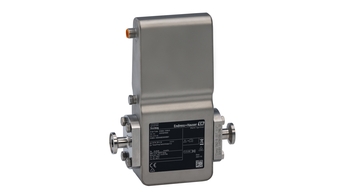

Dosimag is specially designed for filling and bottling applications of conductive liquids. It measures volume directly. Designed for applications where space is a premium, Dosimag will be the preferred choice for system integrators, skid builders and equipment manufacturers.
The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
For demanding dosing and filling applications.
Device properties
Wetted materials CIP, SIP cleanable
Nominal diameter: DN 4 to 25 (1/8 to 1")
Measuring device conform to FDA
Pulse/frequency/switch output, Modbus RS485
Custody transfer approvals (MID, NTEP)
Excellent and easy cleanable transmitter
Prednosti
High process safety – high measuring accuracy and repeatability in shortest filling time
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Maintenance-free – no moving parts
Versatile and time-saving wiring – plug connector
Industry-optimized – ultra-compact design
For hygiene requirements – stainless steel housing
