Picture of electromagnetic flowmeter Proline Promag P 10 for basic process applications

Proline Promag P 10
electromagnetic flowmeter

Flowmeter for basic process applications with easy-to-use operation concept

5PBB

Usporedite

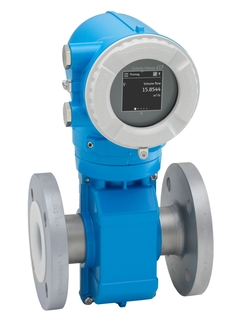

Picture of electromagnetic flowmeter Proline Promag P 10 for basic hazardous process applications — Proline Promag P 10 for basic process applications also in hazardous areas

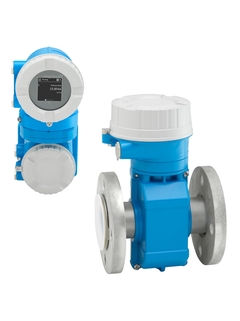

Picture of electromagnetic flowmeter Proline Promag P 10 as a remote version — Proline Promag P 10 with remote transmitter and lap-joint flanges for basic process applications

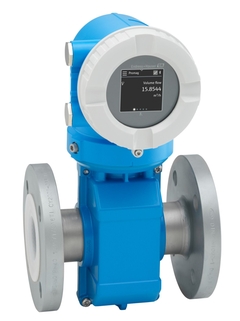

Proline Promag P 10 for basic process applications

Kratke specifikacije

Max. measurement error

Volume flow (standard): ±0.5 % o.r.± 1 mm/s (0.04 in/s)
Measuring range

4 dm³/min to 9600 m³/h (1 gal/min to 44 000 gal/min)
Medium temperature range

Liner material PFA: –20 to +150 °C (–4 to +302 °F)
Liner material PTFE: –40 to +130 °C (–40 to +266 °F)
Max. process pressure

PN 40, Class 300, 20K
Wetted materials

Liner: PFA; PTFE
Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum; Titanium

Prikaži sve specifikacije

Područje primjene

Promag P is dedicated to chemical and process applications with corrosive liquids and high medium temperatures. With its straightforward hard- and software design, Promag P 10 simplifies every step in its life cycle from engineering to servicing at usual Endress+Hauser quality. Heartbeat Technology enables safe processes.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.
Dedicated to chemical and process applications with corrosive liquids.

Device properties

Nominal diameter: max. DN 600 (24")
All common Ex approvals
Liner made of PTFE or PFA
System integration with HART, Modbus RS485
Flexible operation with app and optional display

Prednosti

Diverse applications – wide variety of wetted materials
Energy-saving flow measurement – no pressure loss due to cross section constriction
Maintenance-free – no moving parts
Optimum usability – operation with mobile devices and SmartBlue app or display with touch screen
Simple, time-saving commissioning – guided parameterization in advance and in the field
Integrated verification – Heartbeat Technology

Videozapisi

Proline 10 – uncompromisingly simple
The Electromagnetic Flow Measuring Principle

Smart instrumentation through Heartbeat Technology

You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
