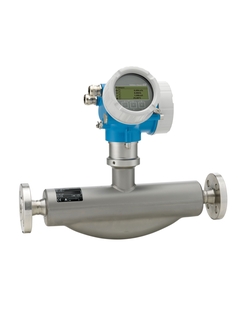

Picture of Proline Promass F 200 / 8F2B with highest measurement performance for liquids and gases

Proline Promass F 200
Coriolis flowmeter

Robust flowmeter with genuine loop-powered technology

8F2B
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

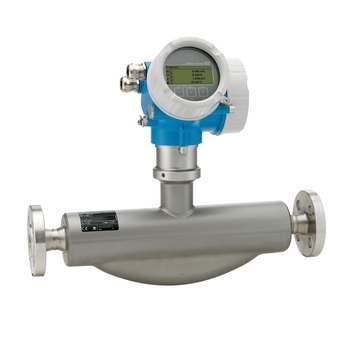

Picture of Proline Promass F 200 / 8F2B with highest measurement performance for liquids and gases
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass F 200 with highest measurement performance for liquids and gases

Proline Promass F 200 with highest measurement performance for liquids and gases

Heartbeat Technology

Kratke specifikacije

  • Max. measurement error

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.25 % Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 70 000 kg/h (0 to 2570 lb/min)

  • Medium temperature range

    Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +205 °C (–58 to +401 °F)

  • Max. process pressure

    PN 100, Class 600, 63K

  • Wetted materials

    Measuring tube: 1.4539 (904L); 1.4404 ; Alloy C22, 2.4602 (UNS N06022)
    Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Područje primjene

Promass F has a long standing reputation as a highly accurate device. It is suited for broadest range of applications. Promass F 200 offers in addition genuine, industry-compliant two-wire technology. This enables seamless system integration into existing infrastructures. Additional advantages are high operational safety in hazardous areas thanks to an intrinsically safe design (Ex ia) and process safety at all times enabled by Heartbeat Technology.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases in a wide range of applications

Device properties

  • Mass flow: measured error ±0.1 %

  • Medium temperature up to +205 °C (+401 °F)

  • Nominal diameter: DN 8 to 80 (3/8 to 3")

  • Loop-powered technology

  • Robust dual-compartment housing

  • Plant safety: worldwide approvals (SIL, Haz. area)

Prednosti

  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Convenient device wiring – separate connection compartment

  • Safe operation – no need to open the device due to display with touch control, background lighting

  • Integrated verification – Heartbeat Technology

Videozapisi

  • The Coriolis Flow Measuring Principle

  • HistoROM data storage concept

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology
