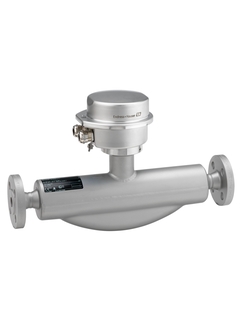

Picture of Proline Promass F 100 / 8F1B with highest measurement performance for liquids and gases

Proline Promass F 100
Coriolis flowmeter

The flowmeter with premium accuracy, robustness and an ultra-compact transmitter

8F1B
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

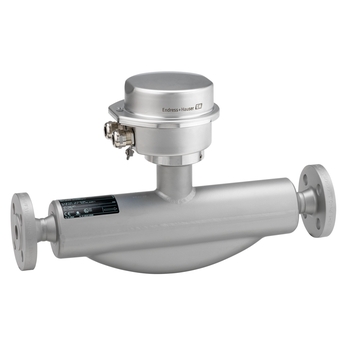

Picture of Proline Promass F 100 / 8F1B with highest measurement performance for liquids and gases
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass F 100 with highest measurement performance for liquids and gases

Proline Promass F 100 with highest measurement performance for liquids and gases

Heartbeat Technology

Kratke specifikacije

  • Max. measurement error

    Mass flow (liquid): ±0.1 % (standard), 0.05 % (option)
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.25 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 2 200 000 kg/h (0 to 80 840 lb/min)

  • Medium temperature range

    Standard: –50 to +150 °C (–58 to +302 °F)
    Option: –50 to +240 °C (–58…+464 °F)

  • Max. process pressure

    PN 100, Class 600, 63K

  • Wetted materials

    Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)
    Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022)

Područje primjene

Promass F has a long standing reputation as a highly accurate device under varying process conditions. It is suited for broadest range of applications. Combined with the smallest transmitter housing available today it delivers full performance on the smallest footprint. Promass F 100 will be the preferred choice for system integrators, skid builders and equipment manufacturers. Available with an extra-compact stainless steel hygienic housing it can be placed even into the most compact rigs.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Highest measurement performance for liquids and gases under varying, demanding process conditions.

Device properties

  • Mass flow: measured error ±0,05 % (PremiumCal)

  • Rated secondary containment up to 40 bar (580 psi)

  • Nominal diameter: DN 8 to 250 (3/8 to 10")

  • Robust, ultra-compact transmitter housing

  • High ingress protection: IP69K

  • Local display available

Prednosti

  • Highest process safety – immune to fluctuating and harsh environments

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Space-saving transmitter – full functionality on smallest footprint

  • Time-saving local operation without additional software and hardware – integrated web server

  • Integrated verification – Heartbeat Technology

Videozapisi

  • The Coriolis Flow Measuring Principle

  • Introduction of Proline Web server

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
