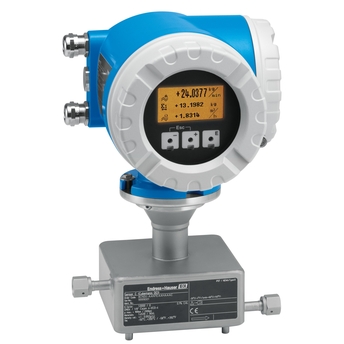

Picture: Coriolis flowmeter Cubemass DCI / 8CN for measuring smallest quantities of liquids & gases

Cubemass DCI
Coriolis flowmeter

Compact sensor for smallest quantities with seamless system integration

8CN
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

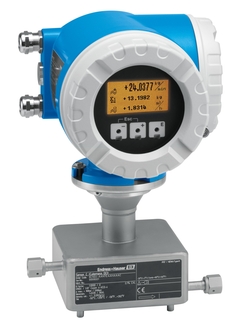

Picture: Coriolis flowmeter Cubemass DCI / 8CN for measuring smallest quantities of liquids & gases ©Endress+Hauser

Cubemass DCI - The Coriolis flowmeter with backlit display and operation via touch control for measuring smallest quantities of liquids and gases

Cubemass DCI - The Coriolis flowmeter with backlit display and operation via touch control for measuring smallest quantities of liquids and gases

Kratke specifikacije

  • Max. measurement error

    Mass flow (liquid): ±0.1 %
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.5 %
    Density (liquid): ±0.0005 g/cm3

  • Measuring range

    0 to 1000 kg/h (0 to 37 lb/min)

  • Medium temperature range

    –50 to +200 °C (–58 to +392 °F)

  • Max. process pressure

    PN 40, Class 300, 10K, 400 bar (5800 psi)

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4539 (904L); 1.4404 (316/316L)

Područje primjene

Cubemass DCI is the proven sensor for the measurement of smallest flow rates in skids, test rigs and industrial robotics, e.g. in applications like lacquering or surface finishing. Neither high pressure nor alternating flow conditions compromise its accuracy. Equipment manufacturers value Cubemass CDI as compact Coriolis sensor with various communication possibilities.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Measuring accurately smallest quantities of liquids and gases

Device properties

  • Nominal diameter: DN 1 to 6 (1/24 to 1/4")

  • Process pressure up to 400 bar (5800 psi)

  • Medium temperature up to +200 °C (+392 °F)

  • Device as compact or remote version

  • Flexible outputs

  • Modbus RS485

Prednosti

  • Measuring accurately smallest quantities of liquids and gases

  • Space-saving installation – compact single-tube design

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Suitable for skids – lightweight sensor

  • High flexibility in system integration – wide range of communication interfaces

  • Fast commissioning – pre-configured devices

  • Automatic recovery of data for servicing
