Kratke specifikacije
-
Max. process pressure (static)
40 bar (580 psi)
-
Maximum standard immersion length
4.000 mm (157,48")
-
Max. immersion length on request
Not defined
Područje primjene
Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes.
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Pressure range up to 40 bar (580 psi)
For increased protection requirements of the temperature sensor regarding physical and chemical effects
For use in pipes and containers or tanks
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes
Prednosti

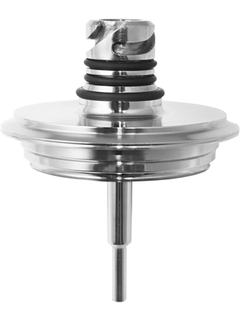

iTHERM QuickNeck – cost and time savings thanks to simple, tool-free
recalibration of the insert usedOver 50 hygienic process connections
Global portfolio with metric and imperial versions
International certification: hygiene standards as per 3-A®, EHEDG, ASME BPE,
FDA, TSE Certificate of SuitabilityOptional: 1.4435 material, delta ferrite content < 1%

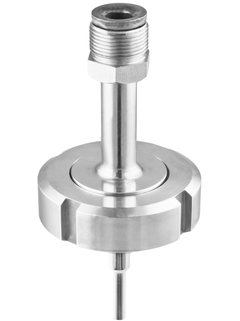

Fast response time owing to reduced tips with thin walls
State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
