Kratke specifikacije
-
Max. process pressure (static)
40 bar (580 psi)
-
Maximum standard immersion length
48" (1.219 mm)
Područje primjene
Best applicable for use in hygienic or aseptic pipes and containers or tanks even with very small immersion lengths. It meets increased protection requirements of the temperature sensor regarding physical and chemical effects. Ideally suited to all measuring points that require regular re-calibration by simply replacing the insert in closed processes.
Specially designed for use in hygienic and aseptic applications in the Food & Beverages and Life Sciences industries
Pressure range up to 40 bar (580 psi)
For increased protection requirements of the temperature sensor regarding physical and chemical effects
For use in pipes and containers or tanks
Ideally suited to all measuring points that require regular recalibration by simply replacing the insert in closed processes
Prednosti
-
iTHERM QuickNeck – cost and time savings thanks to simple, tool-free recalibration of the insert used
-
All common hygienic process connections
-
International certification: hygiene standards as per 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability
-
Fast response time owing to reduced tips with thin walls
-

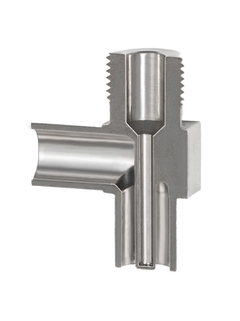

State of the art Tee and Elbow elements, without welds and dead legs and with best in class hygienic design
Fundamental odabir
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Prethodnik
Uspješne priče
-
-
Tehničke informacije (TI)
iTHERM TT412
Thermometer thermowell for hygienic and aseptic applications
EN HR 29/07/202213/01/202131/10/201804/08/2017Jezik:
English
Verzije:
29/07/2022
Veličina datoteke:
1.2 MB
Naziv datoteke:
TI01350TEN_0422-00.pdf
-
-
-
Tehničke informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN HR 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
English
Verzije:
25/03/2024
Veličina datoteke:
1.1 MB
Naziv datoteke:
TI00426FEN_2524.pdf
-
-
-
Specijalna dokumentacija (SD)
Device viewer
Technical documentation in other languages
Jezik:
English
Verzije:
14/07/2021
Veličina datoteke:
478.5 KB
Naziv datoteke:
SD02429R09EN_0121.pdf
-
-
-
Specijalna dokumentacija (SD)
SD Hygienic process connection types
Supplement to TM311, TM371, TM372, TM401, TM411, TM402, TM412, TT411,
TT412, TE411, TK40, TMR35, DTT35, TTR35Jezik:
English
Verzije:
15/09/2023
Veličina datoteke:
800.3 KB
Naziv datoteke:
SD03119TEN_0123-00.pdf
-
-
-
PU (publikacija)
iTHERM TT411, TT412 Innovative thermowell designed for hygienic applications

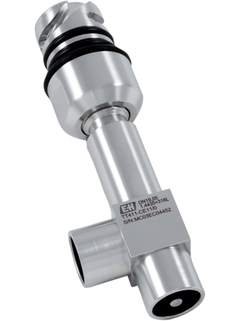

The new iTHERM TT4xx tee and elbow thermowell
elements are ideally suited for applications in the life
sciences and food & beverage industries where hygienic
design and optimized measurement are key.
A state-of-the-art mechanical engineering process
guarantees a construction without welds and dead legs
for precise, safe and clean operation.Jezik:
English
Verzije:
08/08/2022
Veličina datoteke:
1.2 MB
Naziv datoteke:
PU01246T_09_EN_04.22 TT4xx.pdf
-
-
-
PU (publikacija)
iTHERM TT411, TT412 Innovatives Schutzrohr, für Hygieneanwendungen entwickelt
Moderne T- und Eck-Schutzrohre
Die neuen iTHERM TT4xx T- und Eck-Schutzrohrelemente
sind ideal für Anwendungen in der Pharma- sowie der
Lebensmittel- & Getränkeindustrie geeignet, in welchen
eine hygienische Bauformund optimierte Messungen
oberste Priorität haben.Jezik:
German
Verzije:
14/09/2022
Veličina datoteke:
1.2 MB
Naziv datoteke:
PU01246T_09_DE_04.22 TT4xx.pdf
-
-
-
Izjava proizvođača
Product family: Accessories: Pipe thermowell, Accessories: Inserts, PROCESS RTD HYGIENIC, RTD thermometer
Product root: TK40-, TM371-, TM372-, TM401-, TM402-, TM411-,
TM412-, TMR35-, TS111-, TS212-, TT411-, TT412-
Declaration number: HE_00886_01.17
Additional information: TSE compliance, animal fat freeEN HR 23/10/2017Jezik:
English
Verzije:
23/10/2017
Veličina datoteke:
160.7 KB
Naziv datoteke:
HE_00886_0117.pdf
-
-
-
Izjava proizvođača
Product family: Accessories: Pipe thermowell, Magphant, Process RTD hygienic, RTD thermometer
Product root: DTT35-, TK40-, TM311-, TM371-, TM372-, TM401-, TM402-, TM411-, TM412-, TMR35-, TT411-, TT412-, TTR35-
Declaration number: HE_01097_02.23
Manufacturer specification: Food hygieneJezik:
English
Verzije:
28/03/2022
Veličina datoteke:
367.6 KB
Naziv datoteke:
HE_01097_02.23 MD-22010 19002.pdf
-
-
-
Izjava proizvođača
Product family: Accessories: Pipe thermowell, Magphant, PROCESS RTD HYGIENIC, RTD-THERMOMETER
Product root: DTT35-, TK40-, TM311-, TM371-, TM372-, TM401-,
TM402-, TM411-, TM412-, TMR35-, TT411-, TT412-, TTR35-
Declaration number: HE_00099_05.15
Manufacturer specification: Food hygiene, 10/2011, 1935/2004EN HR 10/12/2020Jezik:
English
Verzije:
10/12/2020
Veličina datoteke:
1.8 MB
Naziv datoteke:
HE_00099_05.15.pdf
-
-
-
Izjava proizvođača
Product family: Process RTD hygienic
Product root: TK40-, TM401-, TM402-, TM411-, TM412-, TS111-,
TS112-, TT411-, TT412-
Declaration number: MD-12028A-9Jezik:
English
Verzije:
10/01/2013
Veličina datoteke:
872.7 KB
Naziv datoteke:
MD-12028a_09_e.pdf
-
