Kratke specifikacije
-
Accuracy
class 2 acc. to IEC 60584
-
Response time
t50 = 3 s
t90 = 7 s -
Max. process pressure (static)
at 20 °C: 20 bar (290 psi)
-
Operating temperature range
-40 °C ...1.100 °C
(-40 °F ...2.012 °F) -
Max. immersion length on request
up to 100.000,00 mm (3.937,01'')
Područje primjene

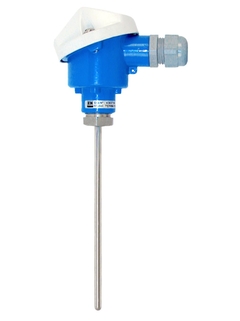

The high modular and robust thermometer finds its use in several applications in almost all industries. An optional head transmitter, with all common communication protocols, makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. A variety of process connections, dimensions and materials offer flexible application possibilities.
TEC420 sheathed thermocouples cover temperature ranges from -40°C to 1100°C depending on the type of thermocouple. They can be used in low pressure applications in direct contact with the medium or protected by a thermowell. They can also be used in all applications where small immersion lengths are needed. Special attention should be paid to the maximum operating temperature of the connection head (80 °C if transmitter included).
Prednosti
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
High degree of insert compatibility and design as per DIN 43772
Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
Uspješne priče
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
15 dokumenti
-
-
Tehničke informacije (TI)
Technical Information
Omnigrad TEC420
Thermocouple insetEN HR 01/11/1994Jezik:
English
Verzije:
01/11/1994
Veličina datoteke:
105.9 KB
Naziv datoteke:
TI076ten_1194.pdf
-
-
-
Ex sigurnosne upute (XA)
XA TR1x, TR4x, TR88, TR6x, TC1x, TC88, TEC420, TC6x
RTD/TC termometri
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C Da
Ex ia IIIC Txxx °C DbEN HR 28/03/202320/12/202101/08/201603/05/201628/11/2012Jezik:
Croatian
Verzije:
28/03/2023
Veličina datoteke:
452.8 KB
Naziv datoteke:
XA00072RHR_1623-00.pdf
-
-
-
Ex sigurnosne upute (XA)
XA iTHERM TM211, TPx100, TSx310
RTD/TC umetci i kabelski termometri
ATEX/IECEx:
Ex ia IIC T6 Ga
Ex ia IIC T6 Ga/Gb
Ex ia IIIC Txxx °C DaEN HR 30/03/202318/07/202210/07/201928/11/201628/11/2012Jezik:
Croatian
Verzije:
30/03/2023
Veličina datoteke:
458.2 KB
Naziv datoteke:
XA00100RHR_1823-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Omnigrad TRxx, TCxx, TxCxxx
RTD/TC modular thermometers
0Ех ia IIC T6…T1Ga Х
Ga/Gb Ех ia IIC T6…T1 Ga Х
Ех ia IIIC 85 °C…450 °C Da Х
Ех ia IIIC 85 °C…450 °C Da/Db ХEN HR 10/03/202002/11/2016Jezik:
English
Verzije:
10/03/2020
Veličina datoteke:
171.9 KB
Naziv datoteke:
XA01459TEN_0220.pdf
-
-
-
Ex sigurnosne upute (XA)
XA TRxx, TCxx, TEC420, TS111, TM211, TM41x, TPx100, TSx310, TM1xx
RTD/TC termometri
ATEX:
Ex nA IIC T6 Gc
Ex ec IIC Txxx°C Gc
Ex tc IIIC Txxx°C DcEN HR 20/11/202313/12/202214/03/202223/05/201904/08/2017Jezik:
Croatian
Verzije:
20/11/2023
Veličina datoteke:
454.2 KB
Naziv datoteke:
XA00044RHR_2023-00.pdf
-
-
-
Izjava proizvođača
Product family: Process TC direct contact
Product root: TEC420-
Declaration number: HE_00497_01.17
Manufacturer specification: RoHSJezik:
English
Verzije:
13/03/2017
Veličina datoteke:
189.1 KB
Naziv datoteke:
HE_00497_01.17 China RoHS TEC420.pdf
-
-
-
EU deklaracija
Product family: Low cost RTD general purpose, Process RTD direct contact, Process RTD direct in contact, Process RTD general purpose , Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC general purpose, Process TC heavy duty, RTD thermometer, TC heavy duty
Product root: TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC42
0-, TH11-, TH12-, TH13-, TH14-, TH15-, TH17-, TH18-, TH27-, TH51-, TH52-, TH53-, TH54-, TH55-, TH56-, TM101-, TM111-, TM112-, TM121-
, TM131-, TM151-, TM152-, TM401-, TM402-, TM411-, TM412-, TMT142C-, TMT142R-, TMT162C-, TMT162R-, TR10-, TR11-, TR12-, TR13-, TR15-,
TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TSM187-, TSM487-, TST187-, TST3
10-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST434B-, TST487-, TST602-, TST90-
Declaration number: EC_00136_04.24EN HR 20/02/2024Jezik:
English
Verzije:
20/02/2024
Veličina datoteke:
150.6 KB
Naziv datoteke:
EC_00136_04.24.pdf
-
-
-
EU deklaracija
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC genera l purpose, Process TC heavy duty
Product root: TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM151-, TM411-, TM412-,
TPC100-, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TS111-, TSC310-, TST310-
Declaration number: EC_00169_04.23EN HR 26/07/2023Jezik:
English
Verzije:
26/07/2023
Veličina datoteke:
166.4 KB
Naziv datoteke:
EC_00169_04.23.pdf
-
-
-
Ocijenjena sukladnost za UK
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process TC direct contact, Process TC direct in contact, Process TC heavy duty
Product root: TC15-, TC66-, TEC420-, TM101-, TM111-, TM121-, TM131-, TPC100-, TPC200-, TPR100-, TR10-, TR15-, TR66-, TS111-, TS211-,
TSC310-, TST310-, TST434-, TST602-
Declaration number: UK_00473_01.21Jezik:
English
Verzije:
01/12/2021
Veličina datoteke:
124.5 KB
Naziv datoteke:
UK_00473_01.21.pdf
-
-
-
Ocijenjena sukladnost za UK
Product family: Accessories: RTD insert, Accessories: TC insert, Accessories: Inserts, Process RTD direct contact, Process RTD gener al purpose, Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC genera l purpose, Process TC heavy duty
Product root: TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC420-, TM111-, TM131-, TM411-, TM412-, TPC100-
, TPR100-, TR10-, TR11-, TR12-, TR13-, TR15-, TR24-, TR47-, TR61-, TR62-, TR63-, TR65-, TR66-, TS111-, TSC310-, TST310-
Declaration number: UK_00428_01.21Jezik:
English
Verzije:
30/08/2022
Veličina datoteke:
130.7 KB
Naziv datoteke:
UK_00428_01.21.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Spare parts kit ring D21/di 10xgreen,10p
-
further parts
Narudžbeni kod71367427 -
-
Fixing kit cpl.TMT8x/7x (european)
-
further parts
Narudžbeni kod71044061 -
-
Extension cable TC IEC 2x type K, 3 pcs.
-
further parts
Narudžbeni kod71389488 -
-
Extension cable TC IEC 2x type J, 3 pcs.
-
further parts
Narudžbeni kod71389497 -
-
Spare parts kit sealing TA30A/TA30D
-
further parts
Narudžbeni kod71182602 -
-
Insert TPC100
-
further parts
Narudžbeni kodTPC100- -
-
Readwin 2000 Operation + Read. software
-
further parts
Narudžbeni kodREADWIN- -
-
Terminal Head TA20A
-
Housing/housing accessories
Broj crtežaNarudžbeni kodATA20A- -
-
Terminal Head TA20B
-
Housing/housing accessories
Broj crtežaNarudžbeni kodATA20B- -
-
iTEMP TMT84, Transmitter PA
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTMT84- -
-
iTEMP TMT85, Transmitter FF
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTMT85- -
-
Display Unit Head Transmitter
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTID10- -
-
Commubox FXA195
-
further parts
Narudžbeni kodFXA195- -
-
iTEMP TMT181, Head Transmitter PCP
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTMT181- -
-
Terminal Head TA30A
-
Housing/housing accessories
Broj crtežaNarudžbeni kodATA30A- -
-
Terminal Head TA30D
-
Housing/housing accessories
Broj crtežaNarudžbeni kodATA30D- -
-
iTEMP TMT182, Head Transmitter HART
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTMT182- -
-
iTEMP TMT82, Transmitter HART
-
Electronic (sensor)
Broj crtežaNarudžbeni kodCTMT82- -
-
Term.block DIN B (42mm) 2 term. Spc 5 pc
Narudžbeni kod71111510 -
Term.block DIN B (42mm) 4 term. 5 pc
Narudžbeni kod71111514 -
Configuration Kit TXU10
Narudžbeni kodTXU10-
