Kratke specifikacije
-
Accuracy
Standard: 0.05%
Platinum: up to 0.025% -
Process temperature
-40°C...150°C
(-40°F...302°F) -
Pressure measuring range
100mbar...40bar
(1.5psi...600psi) -
Process pressure / max. overpressure limit
60bar (900psi)
-
Main wetted parts
Ceraphire ceramic
Alloy C
316L
Monel
PVDF -
Max. measurement distance
400m (1312ft) H2O
-
Material process membrane
Ceramic
-
Measuring cell
100 mbar...40 bar
(1.5 psi...600 psi)
relative/ absolute
Područje primjene

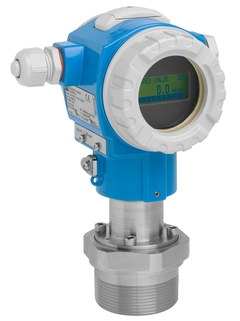

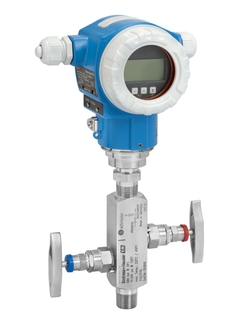

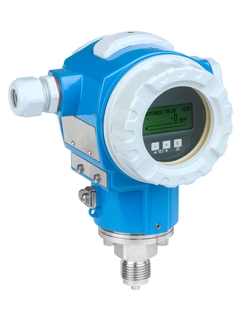

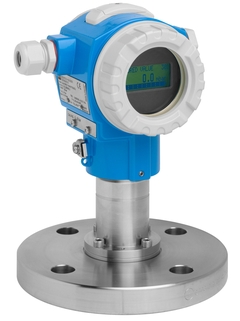

The Cerabar PMC71 digital pressure transmitter with capacitive, oil-free ceramic measuring cell is typically used in the process and hygienic applications for pressure, level, volume or mass measurement in liquids and gases. It guarantees high degree of system safety thanks to vacuum-proof ceramic membrane with integrated breakage detection. Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2/3 according to IEC 61508.
Two chamber aluminum or stainless steel (316L) housing.
Process connections: Threads, flanges or hygienic connections
Process temperature: -40 to +150°C (-40 to +302°F)
Measuring ranges: -1/0 up to to +40bar (+1.5 to +600psi)
Accuracy: ±0.05%, "Platinum" ±0.025%
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
Prednosti
Best fit for vacuum applications and applications with corrosive and abrasive media
Process safety through membrane breakage detection
Overload-resistant high purity ceramic sensor (99.9% Al2O3)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Highest safety due to gastight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Available with mounted manifolds: always fit, always tested for leaks
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Prethodnik
Uspješne priče
Najviše preuzimano
-
-
Tehničke informacije (TI)
TI Cerabar S PMC71, PMP71, PMP75
Engleska verzija - 04/2024
Process pressure measurement 1-5 V DC, HART, PA, FF
EN HR 01/04/202413/01/202229/09/202001/04/202016/04/2019Jezik:
English
Verzije:
01/04/2024
Veličina datoteke:
3.5 MB
Naziv datoteke:
TI00383PEN_3624-00.pdf
-
253 dokumenti
-
-
Tehničke informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN HR 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
English
Verzije:
25/03/2024
Veličina datoteke:
1.1 MB
Naziv datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehničke informacije (TI)
TI Cerabar S PMC71, PMP71, PMP75
Process pressure measurement
1-5 V DC, HART, PA, FFEN HR 01/04/202413/01/202229/09/202001/04/202016/04/2019Jezik:
English
Verzije:
01/04/2024
Veličina datoteke:
3.5 MB
Naziv datoteke:
TI00383PEN_3624-00.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S /Deltabar S /Deltapilot S Description of device functions PROFIBUS PA V04.01.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN HR 03/04/201710/12/201407/08/201301/10/201101/05/2010Jezik:
English
Verzije:
03/04/2017
Veličina datoteke:
4.8 MB
Naziv datoteke:
BA00296PEN_1616.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S PMC71, PMP71, PMP75 HART V02.30.zz Operating Instructions
Pressure transmitter with ceramic and metal sensors
EN HR 01/03/201810/12/201401/11/201407/05/201417/01/2013Jezik:
English
Verzije:
01/03/2018
Veličina datoteke:
2 MB
Naziv datoteke:
BA00271PEN_1916.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S PMC71, PMP71, PMP75 PROFIBUS PA (V 04.01.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
PROFIBUSPAEN HR 03/04/201710/12/201407/05/201407/08/201303/02/2012Jezik:
English
Verzije:
03/04/2017
Veličina datoteke:
3.3 MB
Naziv datoteke:
BA00295PEN_1816.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S / Deltabar S / Deltapilot S, Description of device functions FOUNDATION Fieldbus V 04.00.zz
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure
transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN HR 03/04/201710/12/201407/05/201430/04/201301/10/2011Jezik:
English
Verzije:
03/04/2017
Veličina datoteke:
6.3 MB
Naziv datoteke:
BA00303PEN_1716.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S Operating Instructions HART, Software version 7.1
Cerabar S PMC631, PMC731, PMP635, PMP731, Pressure transmitter
EN HR 01/01/200401/03/200301/04/1999Jezik:
English
Verzije:
01/01/2004
Veličina datoteke:
1.9 MB
Naziv datoteke:
BA187PEN.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S PMC71, PMP71, PMP75 FOUNDATION Fieldbus (V 04.00.zz) Operating Instructions
Pressure transmitter with ceramic and metal sensors
Overload-resistant and function-monitored;
Communication via
FOUNDATION FieldbusEN HR 03/04/201710/12/201407/05/201430/04/201303/02/2012Jezik:
English
Verzije:
03/04/2017
Veličina datoteke:
4.3 MB
Naziv datoteke:
BA00302PEN_1816.pdf
-
-
-
Upute za uporabu (BA)
Cerabar S / Deltabar S / Deltapilot S HART V02.30.zz Description of Instrument Functions
Cerabar S PMC71, PMP71, PMP75 Pressure transmitter
Deltabar S FMD77, FMD78, PMD75 Differential pressure transmitter
Deltapilot S FMB70 Hydrostatic pressure transmitterEN HR 01/03/201810/12/201401/11/201407/05/201417/01/2013Jezik:
English
Verzije:
01/03/2018
Veličina datoteke:
4.8 MB
Naziv datoteke:
BA00274PEN_1816.pdf
-
-
-
Kratke upute (KA)
Cerabar S, Deltabar S, Deltapilot S
Cerabar S, Deltabar S, Deltapilot S
Process pressure measurement/differntial pressure
measurement/hydrostatic level measurement
V 04.00.zzEN HR 10/12/201430/04/201301/10/201122/09/200815/05/2008Jezik:
English
Verzije:
10/12/2014
Veličina datoteke:
579.8 KB
Naziv datoteke:
KA00252PA2_1514.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Mounting set housing T14/T15 sensor
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1252020440 -
-
Mounting set housing T17 / sensor
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1271020596 -
-
Push button housing, PA/FF
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1352022418 -
-
Push button housing, HART, version 1
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1352022419 -
-
Push button housing, HART, version 2
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1352024110 -
-
Cable gland M20, gasket
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1552020760 -
-
Cable entry G1/2, gasket, adapter
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1552020761 -
-
Plug 2/7-pole, HAN7D, gasket
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1552020762 -
-
Plug 3-pole, M12, gasket
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1552020763 -
-
Housing filter VA, EPDM, 1 piece
-
further parts
Narudžbeni kod71111056 -
-
Housing filter VA, VMQ, F15, T17, 1 pc.
-
further parts
Narudžbeni kod71219639 -
-
Cover T14/T15 Alu, gasket
-
Cover
Broj crtežaNarudžbeni kod2052020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Broj crtežaNarudžbeni kod2052020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Broj crtežaNarudžbeni kod2052028310 -
-
Cover T17 316L, gasket
-
Cover
Broj crtežaNarudžbeni kod2071002774 -
-
Cover T17 316L, sight glass, gasket
-
Cover
Broj crtežaNarudžbeni kod2071002810 -
-
Cover T17 316L, sight glass PC, gasket
-
Cover
Broj crtežaNarudžbeni kod2071002811 -
-
Cover T14/T15 Alu, sight glass, gasket
-
Cover
Broj crtežaNarudžbeni kod2071245247 -
-
Cover T14/T15 Alu,Exd,sight glass,gasket
-
Cover
Broj crtežaNarudžbeni kod2071245249 -
-
Sealing EPDM, F30/31/34, T14/15, 5 pcs.
-
Sealing
Broj crtežaNarudžbeni kod2152020429 -
-
Cover sealing FVQM, T14, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod2171206971 -
-
Cable PE,80inch,sep. housing FMXXX/PMXXX
-
further parts
Narudžbeni kod71043886 -
-
Cable PE,200inch,sep.housing FMXXX/PMXXX
-
further parts
Narudžbeni kod71043888 -
-
Cable PE,400inch,sep.housing FMXXX/PMXXX
-
further parts
Narudžbeni kod71043889 -
-
Cable FEP,200inch,sep.housingFMXXX/PMXXX
-
further parts
Narudžbeni kod71070738 -
-
Ground terminal T14/T15/T17, F30/F31
-
further parts
Narudžbeni kod71290825 -
-
Cover T14/T15 Alu, gasket
-
Cover
Broj crtežaNarudžbeni kod2552020432 -
-
Cover T14/T15 Alu, Ex d, gasket
-
Cover
Broj crtežaNarudžbeni kod2552020433 -
-
Cover T14 316L, Ex d, EPDM
-
Cover
Broj crtežaNarudžbeni kod2552028310 -
-
Cover T17 316L, gasket
-
Cover
Broj crtežaNarudžbeni kod2571002774 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Broj crtežaNarudžbeni kod2071206965 -
-
Cover T14 316L, Ex d, sight glass, FVMQ
-
Cover
Broj crtežaNarudžbeni kod2071206968 -
-
Cover T14 316L, Ex d, sight glass, EPDM
-
Cover
Broj crtežaNarudžbeni kod2071245250 -
-
Cover T14 316L, Ex d, FVMQ
-
Cover
Broj crtežaNarudžbeni kod2571206965 -
-
Electronics HART Ex, ext. p. b., v2.0
-
Electronic
Broj crtežaNarudžbeni kod3052024111 -
-
Electronics HART Ex, v2.0
-
Electronic
Broj crtežaNarudžbeni kod3052024400 -
-
Electronics HART Ex, v2.10
-
Electronic
Broj crtežaNarudžbeni kod3071026358 -
-
Electronics HART Ex, ext. p. b., v2.10
-
Electronic
Broj crtežaNarudžbeni kod3071026359 -
-
Electronic HART Ex, v2.11
-
Electronic
Broj crtežaNarudžbeni kod3071196092 -
-
Electronics HART Ex, ext. p. b., v2.11
-
Electronic
Broj crtežaNarudžbeni kod3071196093 -
-
Upgrade electronics HART Ex, v2.1
-
further parts
Narudžbeni kod52026762 -
-
Upgrade electr. HART Ex,ext.push b.,v2.1
-
further parts
Narudžbeni kod52026763 -
-
Electronics PA, HW02.00, SW4.0
-
Electronic
Broj crtežaNarudžbeni kod3071071824 -
-
Electronics PA, ext. p.b., HW02.00,SW4.0
-
Electronic
Broj crtežaNarudžbeni kod3071071825 -
-
Electronics FF, HW2.00, SW3.00
-
Electronic
Broj crtežaNarudžbeni kod3071071826 -
-
Electronics FF, ext. p.b., HW2.00,SW3.00
-
Electronic
Broj crtežaNarudžbeni kod3071071827 -
-
Electronics PA, Ex, HW2.00, SW3.00
-
Electronic
Broj crtežaNarudžbeni kod3071214057 -
-
Electronics PA, ext. p.b.,HW2.00, SW3.00
-
Electronic
Broj crtežaNarudžbeni kod3071214064 -
-
Electronics FF, ext. p.b.,HW2.00, SW2.00
-
Electronic
Broj crtežaNarudžbeni kod3071214066 -
-
Electronics FF, HW2.00, SW2.00
-
Electronic
Broj crtežaNarudžbeni kod3071214069 -
-
Electronics FF, ext. p.b.,HW2.00, SW4.00
-
Electronic
Broj crtežaNarudžbeni kod3071214890 -
-
Electronics FF, HW2.00, SW4.00
-
Electronic
Broj crtežaNarudžbeni kod3071214892 -
-
Electronics PA, HW02.00, SW4.01
-
Electronic
Broj crtežaNarudžbeni kod3071224775 -
-
Electronics PA, ext.p. b.,HW02.00,SW4.01
-
Electronic
Broj crtežaNarudžbeni kod3071224776 -
-
Electronics HART Ex, v2.20
-
Electronic
Broj crtežaNarudžbeni kod3071263933 -
-
Electronics HART Ex, ext. p. b., v2.20
-
Electronic
Broj crtežaNarudžbeni kod3071263934 -
-
Elektronics HART Ex, v2.30
-
Electronic
Broj crtežaNarudžbeni kod3071386147 -
-
Electronics HART Ex, ext. p. b., v2.30
-
Electronic
Broj crtežaNarudžbeni kod3071386153 -
-
HistoROM / M-DAT, 16K
-
Memory
Broj crtežaNarudžbeni kod3152027785 -
-
Terminal 2-pole, RFI, FF, Ex
-
Terminal module
Broj crtežaNarudžbeni kod3552027691 -
-
Terminal 2-pole, RFI, PA, OVP, Ex
-
Terminal module
Broj crtežaNarudžbeni kod3571028475 -
-
Terminal 2-pole, RFI, FF, OVP, Ex
-
Terminal module
Broj crtežaNarudžbeni kod3571028476 -
-
Terminal 2-pole, RFI, PA, Ex
-
Terminal module
Broj crtežaNarudžbeni kod3571121574 -
-
Terminal 3-pole,Li=0, RFI,HART,Ex ia/Exd
-
Terminal module
Broj crtežaNarudžbeni kod3571191892 -
-
Termin.3-p.,Li=0,RFI,HART,OVP,Ex ia/Exd
-
Terminal module
Broj crtežaNarudžbeni kod3571191894 -
-
Display module VU340, Cbar/Dbar/Dpilot S
-
Display
Broj crtežaNarudžbeni kod4071002865 -
-
Adapter PMC71X/51B G1/2,d11,4,Da30,316L
-
Connection (process)
Broj crtežaNarudžbeni kod5552020217 -
-
Adapter PMC71 PF1/2, d3, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020224 -
-
Adapter PMC71 G1/2, d11.4, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020225 -
-
Adapter PMC71 PT1/2, d11.4, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020226 -
-
Adapter PMC71 NPT1/2, d11.4, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020227 -
-
Adapter PMC71 NPT1/2, NPT1/4, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020228 -
-
Adapter PMC71 M20, d3, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020229 -
-
Adapter PMC71 G1/2, d3, 316L, 3.1
-
Connection (process)
Broj crtežaNarudžbeni kod5552020230 -
-
Adapter Cbar S G1-1/2 ISO228,316L,screws
-
Connection (process)
Broj crtežaNarudžbeni kod5571007932 -
-
Spacer for process adapter, screws
-
Fixing
Broj crtežaNarudžbeni kod5852020441 -
-
O-ring 26.7x1.78 FKM 70, O2, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod5752010137 -
-
O-ring 26.7x1.78 HNBR 75, 3A, FDA, 5 pcs
-
Sealing
Broj crtežaNarudžbeni kod5752010155 -
-
O-ring 26.7x1.78 EPDM 70, 3A, USP, 5 pcs
-
Sealing
Broj crtežaNarudžbeni kod5752017989 -
-
O-ring 26.7x1.78 FKM70,degreased, 5 pcs.
-
Sealing
Broj crtežaNarudžbeni kod5752020768 -
-
O-ring 26.7x1.78 NBR 70, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod5752020769 -
-
O-ring 26.7x1.78 EPDM 70, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod5752020770 -
-
O-ring 26.7x1.78 FKM -40oC, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod5752020771 -
-
O-ring 26.7x1.78 FFKM 70 KALREZ, 1 pc.
-
Sealing
Broj crtežaNarudžbeni kod5752020772 -
-
O-ring 26.7x1.78 FFKM 75 CHEMRAZ, 1 pc.
-
Sealing
Broj crtežaNarudžbeni kod5752020773 -
-
O-ring 26.7x1.78 FKM, FDA, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod5771093308 -
-
O-ring 27.1x1.6 FFKM 75 Perlast, 1pc.
-
Sealing
Broj crtežaNarudžbeni kod5771316464 -
-
Sensor Cerabar S PMC71
-
Sensoric
Broj crtežaNarudžbeni kod50PMC71X- -
-
Screw set, M5x16, 4 pieces
-
further parts
Narudžbeni kod71495134 -
-
Flat seal 50x65x1 PTFE, FDA, 5 pieces
-
further parts
Narudžbeni kod52024228 -
-
Modification name plate, non Ex
-
further parts
Narudžbeni kod71067434 -
-
Adapterk. FMR2xx,FMx4x,PMx7x,FMD7x,FMG60
-
further parts
Narudžbeni kod71000221 -
-
Mountingset Cerabar,Deltapilot,Levelflex
Narudžbeni kod71102216 -
Mountingset, housing T14, special
Narudžbeni kod71304770 -
Mounting bracket 2 valve,stainless steel
Narudžbeni kod71372498 -
Weld-in adapter G1-1/2, 316L
Narudžbeni kod52024469 -
Weld-in adapter G1-1/2, 316L, 3.1
Narudžbeni kod52024470 -
Weld-in adapter DRD DN50, 316L
Narudžbeni kod52002041 -
Weld-in adapter DRD DN50, 316L, 3.1
Narudžbeni kod52011899 -
ToF Adapter FXA291
Narudžbeni kod71007843 -
Spare RFID TAG
Narudžbeni kodXPRFID- -
Flushing ring NPS 1" Cl. 150-2500, 316L
Narudžbeni kod71377369 -
Flushing ring NPS 2" Cl. 150-2500, 316L
Narudžbeni kod71377370 -
Flushing ring NPS 3" Cl. 150-2500, 316L
Narudžbeni kod71377371 -
Flushing ring DN25, PN16-400, 316L
Narudžbeni kod71377379 -
Flushing ring DN50, PN16-400, 316L
Narudžbeni kod71377380 -
Flushing ring DN80, PN16-400, 316L
Narudžbeni kod71377383
5 products & bundles
5 proizvodi
Često se kupuju zajedno
Pribor
- Mountingset Cerabar,Deltapilot,Levelflex
- Mountingset, housing T14, special
Povezani proizvodi
