Kratke specifikacije
-
Process temperature
0 to 50°C
32 to 122 °F -
Process pressure
0 to 6 bar abs.
0 to 87 psi
Područje primjene

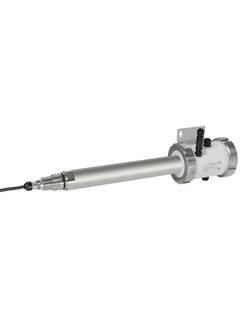

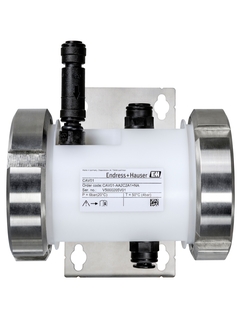

CAV01 allows for monitoring of up to 5 parameters when a Memosens Wave CAS80E spectrometer or a Viomax CAS51D nitrate/SAC sensor is installed. Thanks to the sensors' fast response times and continuous measurements, unexpected events in the process are identified at an early stage. The assembly's integrated pressure cleaning ensures extended maintenance intervals. CAV01 enables accurate measurements at low flows of 0.1 to 10 l/h, resulting in a minimum water loss.
CAV01 flow assembly is suitable for by-pass measurement of various parameters such as SAC54, TOCeq, CODeq, BODeq, DOCeq, turbidity, TSS, APHA/Hazen, nitrate in the following applications:
Drinking water treatment and network monitoring
Quality control of all measuring points in drinking water production
Raw water monitoring
Process water treatment and monitoring
Water re-use monitoring
Cooling water and condensate
Monitoring of municipal and industrial wastewater
Control of aeration basins
Prednosti
Extended maintenance intervals thanks to optimized, automatic pressure cleaning.
Minimum water loss: Precise measurement at low sample flow
Robust design: Suitable for process pressures up to 6 bar (87 psi) and temperatures up to 50 °C (122 °F)
Full compatibility with all path lengths of Memosens Wave CAS80E and Viomax CAS51D
Simple installation thanks to pre-mounted wall bracket and fixed sensor orientation
Fast maintenance thanks to tool-free deinstallation
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
-
-
Upute za ugradnju (EA)
EA CAV01
Flow assembly for optical sensors Viomax CAS51D and Memosens Wave CAS80E
EN HR 27/04/2023Jezik:
English
Verzije:
27/04/2023
Veličina datoteke:
1015.2 KB
Naziv datoteke:
EA01472CEN_0123-00.pdf
-
-
-
Upute za ugradnju (EA)
EA CAV01 kit, seal set
for the CAV01 flow assembly
EN HR 14/08/2023Jezik:
English
Verzije:
14/08/2023
Veličina datoteke:
977.1 KB
Naziv datoteke:
EA01477CEN_0123-00.pdf
-
