CPS171D: Memosens glass electrode for the food industry and bioreactors in the biotech industry.

Digital pH sensor
Memosens CPS171D

Memosens glass electrode for bioreactors in the biotech industry and for the food industry

CPS171D
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

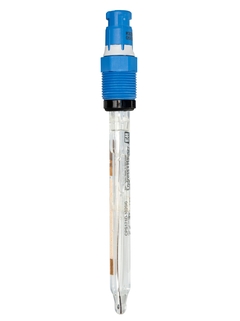

Memosens CPS171D: high-performing pH sensor for reliable measurement in biotech processes.
  • F
  • L
  • E
  • X
©Endress+Hauser

Memosens CPS171D: high-performing pH sensor for reliable measurement in biotech processes.

Memosens CPS171D has a certified biocompatibility according to USP class VI.
  • F
  • L
  • E
  • X
©Endress+Hauser

The sensor has a certified biocompatibility according to USP class VI which provides highest safety for your batch with respect to cytotoxicity and bioreactivity.

The Memosens CPS171D pH sensor is accurate and stable over various batch cycles.
  • F
  • L
  • E
  • X
©Endress+Hauser

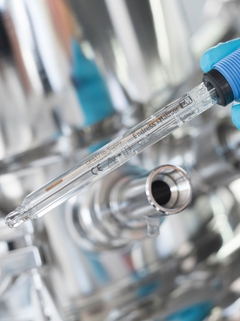

The sensor’s specialized glass membrane and pressurized reference system with ion trap make the sensor accurate and stable over various batch cycles.

Memosens CPS171D stores all necessary process and sensor data in its Memosens plug head.
  • F
  • L
  • E
  • X
©Endress+Hauser

The sensor stores all necessary process and sensor data such as the operating hours, the calibration history and the number of SIP and autoclaving cycles in its Memosens head.

Conveniently maintain and calibrate your CPS171D sensor in the laboratory with Memobase Plus CYZ71D.
  • F
  • L
  • E
  • X
©Endress+Hauser

Conveniently maintain and calibrate your Memosens CPS171D sensor under controlled conditions in your lab with the Memobase Plus software.

Install the precalibrated sensor in your fermenter and it is instantly ready for the next batch.
  • F
  • L
  • E
  • X
©Endress+Hauser

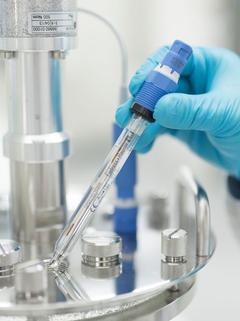

Install the precalibrated Memosens CPS171D sensor in your fermenter and your measurement is instantly ready for the next batch.

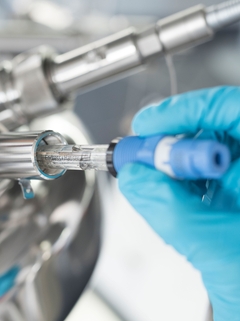

Simple sensor exchange in your bioreactor/fermenter can be performed in seconds.
  • F
  • L
  • E
  • X
©Endress+Hauser

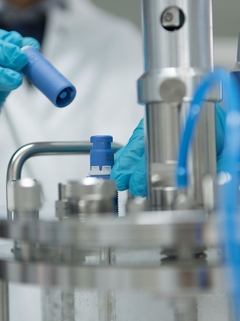

Simple sensor exchange in your bioreactor/fermenter can be performed in seconds thanks to the lockable bayonet connector and automatic sensor identification.

Memosens CPS171D: high-performing pH sensor for reliable measurement in biotech processes.

Kratke specifikacije

  • Measurement range

    pH 0 to 14

  • Process temperature

    0 to 135 °C (32 to 275 °F)

  • Process pressure

    1 to 7 bar abs (14.5 to 101.5 psi)

Područje primjene

Keep the pH value of your batch in the optimum range and maximize your product yield with Memosens CPS171D. Thanks to its rugged design and long-term stability, it provides extremely accurate, reproducible and reliable measuring values even after CIP/SIP and autoclaving. Memosens CPS171D is not the latest Memosens generation. To get information on the new Memosens CPS61E sensor with extended functionality, click here.

Memosens CPS171D measures pH in:

  • Biotech and pharma industries
    - Bioreactors/fermenters: process control in enzyme production
    - Bioreactors/fermenters: control of culture growth

  • Food & Beverages
    - CIP/SIP applications

With its international explosion protection approvals, such as ATEX and IECEx, the digital sensor is suitable for hazardous area use.

A pharma certificate of compliance with sensor serial number specified is available.

Prednosti

  • The sensor's exceptional accuracy, reproducibility and reliability helps you to keep the pH value in the optimum range for a maximized product yield.

  • A specialized glass membrane and reference system makes the sensor CIP/SIP and autoclaving resistant (up to 140°C/284°F) offering maximum long-term stability.

  • Thanks to the Memosens technology, the cable connection cannot be affected by moisture or corrosion: you can count on the sensor's highest availability and your batch is safe.

  • The sensor protects your product quality with its certified biocompatibility according to USP class VI, FDA compliance of wetted parts, no cytotoxicity, bioreactivity or animal-based materials.

  • The sensor provides you with process and sensor data that allows you to decide if the sensor is ready for the next batch or should be replaced - a big improvement for your product safety.

  • Streamline maintenance of CPS171D with the Memobase Plus software that automatically stores and documents all relevant sensor and process data.

  • Approved for hazardous area use.

Videozapisi

  • The pH value of a liquid can be calculated using the potentiometric measurement principle. This video shows what it is about and how this measuring principle works.

  • Memosens converts the measured value to a digital signal and transfers it to the transmitter without a contacting connection. This video shows how Memosens optimizes process control and maintenance.
