Ultrasonic measurement
Time-of-Flight
Prosonic FMU30

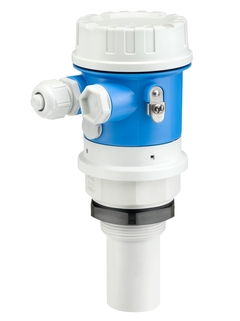

Prosonic FMU30 ©Endress+Hauser

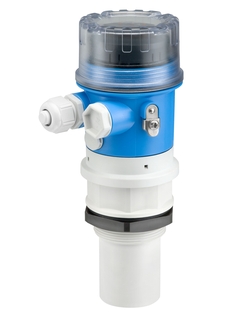

Prosonic FMU30 ©Endress+Hauser

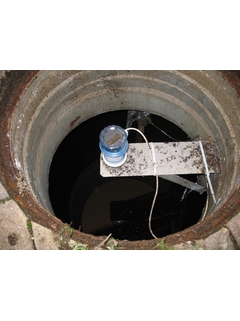

Prosonic FMU30 wastewater application ©Endress+Hauser

Time-of-Flight measuring principle

  • Prosonic FMU30
  • Prosonic FMU30
  • Prosonic FMU30 wastewater application

Cost effective all-round instrument for level applications in liquids and bulk solids

The range of applications extends from monitoring levels in sewage treatment plants and process water tanks to applications for loading, storage and buffer tanks. FMU30 ultrasonic sensor offers proven software algorithms and all warning and alarm messages are shown on the four-line plain text display and guarantee fast remedy of problems. The envelope curve can also be shown on the display. As the analysis results are displayed directly on-site, this ensures quick and accurate error diagnostics.

Fundamental odabir
  • F
  • L
  • E
  • X

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo

  • Kratke specifikacije

    • Accuracy

      +/- 3 mm or +/- 0.2 % of set measuring range

    • Process temperature

      -20 °C ... 60 °C
      (-4 °F ... 140 °F)

    • Process pressure absolute / max. overpressure limit

      0.7 bar ... 3 bar abs
      (10 psi ... 44 psi)

    • Max. measurement distance

      Sensor 1-1/2": 2 m (6.6 ft)
      Sensor 2": 3.5 m (11 ft)

    • Main wetted parts

      PP/EPDM

Loading alternative products

Brza selekcija

Odaberite iz ponuđenih opcija
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

FMU30
Prikaži detalje Sakrij detalje
Prikaži detalje
Nazad na brzi odabir
  • <%feature%>
    <%coding%>
    <%label%>
pc
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF 803.-
  • opcijski dodatci
Molimo upotrijebite individualni konfigurator nastaviti.
ili

Pojedinačna konfiguracija

Nastavite svoj odabir prema svim mogućim opcijama

Dodatne komponente

  • Prednosti

    • Quick and simple commissioning via menu-guided onsite operation with four-line plain text display, 7 languages selectable

    • Envelope curves on the on-site display for simple diagnosis

    • Linearization function (up to 32 points) for conversion of the measured...

  • Područje primjene

    Two-wire instrument for continuous non-contact level and flow measurement.

    • Process connection: Thread

    • Temperature: -20 to +60°C (-4 to +140°F)

    • Pressure: +0.7 to +3bar (+10 to +44psi)

    • Maximum measuring distance:
      Sensor 1½" for liquids 5m (16ft) and for...

Značajke i specifikacije

Nazad

Detalji

  • Mjerni princip

    Ultrasonic

  • Characteristic / Application

    Compact ultrasonic transmitter

  • Supply / Communication

    2-wire

  • Accuracy

    +/- 3 mm or +/- 0.2 % of set measuring range

  • Ambient temperature

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 3 bar abs

    (10 psi ... 44 psi)

  • Main wetted parts

    PP/EPDM

  • Process connection

    G / NPT 1 1/2"

    G / NPT 2"

  • Blocking distance

    Sensor 1 1/2": 0.25 m

    Sensor 2": 0.35 m

  • Max. measurement distance

    Sensor 1-1/2": 2 m (6.6 ft)

    Sensor 2": 3.5 m (11 ft)

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex, NEPSI

  • Options

    Accessory Enclosed:

    UNI flange 2" ... 4"

  • Application limits

    Take notice of range diagram

  • Mjerni princip

    Ultrasonic Limit

  • Characteristic / Application

    Compact ultrasonic transmitter

  • Supply / Communication

    2-wire

  • Ambient temperature

    -20 °C...+60 °C,

    (-4 °F...+140 °F)

  • Process temperature

    -20 °C...+60 °C,

    (-4 °F...+140 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar...3 bar abs,

    (10 psi ...44 psi)

  • Main wetted parts

    PP/ EPDM

  • Process connection

    G / NPT 1 1/2",

    G / NPT 2"

  • Blocking distance

    Sensor 1 1/2": 0.25 m,

    Sensor 2": 0.35 m

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex, NEPSI

  • Options

    Accessory Enclosed:

    UNI flange 2"...4"

  • Application limits

    Take notice of range diagramm

  • Mjerni princip

    Ultrasonic Limit

  • Characteristic / Application

    Compact ultrasonic transmitter

  • Supply / Communication

    2-wire

  • Ambient temperature

    -20 °C...+60 °C

    (-4 °F...+140 °F)

  • Process temperature

    -20 °C...+60 °C

    (-4 °F...+140 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar...3 bar abs

    (10 psi ...44 psi)

  • Main wetted parts

    PP/EPDM

  • Process connection

    G / NPT 1 1/2"

    G / NPT 2"

  • Blocking distance

    Sensor 1 1/2": 0.25 m,

    Sensor 2": 0.35 m

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex, NEPSI

  • Options

    Accessory Enclosed:

    UNI flange 2"... 4"

  • Application limits

    Take notice of range diagram

  • Mjerni princip

    Ultrasonic

  • Characteristic / Application

    Compact ultrasonic transmitter

  • Supply / Communication

    2-wire

  • Accuracy

    +/- 3 mm or +/- 0,2 % of set measuring range

  • Ambient temperature

    -20 °C ... 60 °C

    (-4 °F ... 140 °F)

  • Process temperature

    -20 °C ... 60 °C

    (- 4°F ... 140 °F)

  • Process pressure absolute / max. overpressure limit

    0.7 bar ... 3 bar abs

    (10 psi ... 44 psi)

  • Main wetted parts

    PP/EPDM

  • Process connection

    G / NPT 1 1/2"

    G / NPT 2"

  • Blocking distance

    1 1/2": 0.25 m (0.8 ft)

    2":0.35 m (1.15 ft)

  • Application

    Application

  • Max. measurement distance

    Max. measurement distance

  • Communication

    4...20 mA

  • Certificates / Approvals

    ATEX, CSA C/US, IEC Ex, NEPSI

  • Options

    Accessory Enclosed:

    UNI flange 2" ... 4"

  • Application limits

    Application limits

Dokumenti / Upute / Softver

Pribor / Rezervni dijelovi

Br
Kod za naručivanje
Specifikacija
  • 20
    • Br 20 Kod za naručivanje 52025605

      Cover F16 high, transparent, gasket

      Display cover, gasket EPDM. Usage: housing Polyester, FMI21, FMI51/FMI52, FMU30.

    • Br 20 Kod za naručivanje 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

  • 21
  • 30
  • 40
  • 50
  • 57
  • 58
    • Br 58 Kod za naručivanje 52000598

      Hexagon nut (SW70) G2, bk, PC

      Usage: sensor 2", FMR10, FMR20, FMU30, FMU40/FMU41.

    • Br 58 Kod za naručivanje 52000599

      Hexagon nut (SW60) G1-1/2, bk, PC

      Usage: sensor 1-1/2", FMU30, FMU40.

    • Br 58 Kod za naručivanje 52014146

      Mounting nut G1-1/2

      Hexagon, SW60. Usage: Liquipoint T, Liquicap T, Prosonic M FMU40, Prosonic T FMU30, FMR10, FMR20.
