Electromagnetic flowmeter - Proline Promag 51W

Proline Promag 51W
electromagnetic flowmeter

Sensor with degree of protection IP68 (Type 6P enclosure) with a transmitter for custody transfer

51W
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

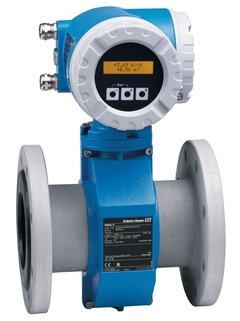

Electromagnetic flowmeter - Proline Promag 51W ©Endress+Hauser

Kratke specifikacije

  • Max. measurement error

    ±0.5%
    ±0.2% (optional)

  • Measuring range

    0...110'000 m3/h

  • Medium temperature range

    -20...+80°C
    (-4...176°F)

  • Max. process pressure

    PN6...40

Područje primjene

Promag W is the specialized sensor for all applications in the water industry. Combined with the proven Promag 51 transmitter with push buttons, Promag 51W offers highly accurate measurement of liquids for a wide range of standard applications. it will be the preferred solution for customers needing custody transfer measurement Promag 51W is available in a compact or remote version.

  • The measuring principle is virtually independent of pressure, density, temperature and viscosity

  • The specialist in the water and wastewater industry for the most demanding applications.

Device properties

  • International drinking water approvals

  • Degree of protection IP68 (Type 6P enclosure)

  • Approved for custody transfer to MI-001/OIML R49

  • Transmitter certified to MI-001

  • Device in compact or remote version

  • HART

Prednosti

  • Secure, reliable long-term operation – robust and completely welded sensor

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Maintenance-free – no moving parts

  • Quality – designed for custody transfer; featuring worldwide recognized metrological approvals

  • Safe operation – display provides easy readable process information

  • Fully industry compliant – IEC/EN/NAMUR

Videozapisi

  • The Electromagnetic Flow Measuring Principle

Prethodnik

Uspješne priče

  • Tough conditions: Installation at the difficult-to-access measuring point Tough conditions: Installation at the difficult-to-access measuring point

    Reliable flow measurement despite difficult conditions

    Schluchseewerk AG wanted to record and optimize the efficiency of its turbines at the pumped storage plant in Wehr. Endress+Hauser offers the optimum solution with its ultrasonic clamp-on flowmeter.

  • Picture of the water reservoir Marbach (Germany) Picture of the water reservoir Marbach (Germany)

    Smart monitoring system for potable water treatment

    With Netilion Network Insights, Oberzent's water masters now see all relevant data points of their water system on a cloud-based dashboard without having to drive to the plants.

  • GPsol Wellchecker on a pumpjack GPsol Wellchecker on a pumpjack

    Real-time analysis of mature oil wells

    GPsol, together with Endress+Hauser, developed a system that individually measures each component of extraction wells and provides as much information as possible about the current flow.

  • Wastewater sampling in a shaft Wastewater sampling in a shaft

    Wastewater measurement that works

    Check out how Hofbrauhaus Freising samples wastewater with Promag L 400 in a nearly inaccessible shaft.

  • Picture of Teqwave T – Ultrasonic concentration meter Picture of Teqwave T – Ultrasonic concentration meter

    Measurable and testable: Monitoring with Teqwave

    Efficient component cleaning is an important part of the production of industrially manufactured components. Borer Chemie AG therefore relies on the concentration measurement with Teqwave F, I and T.
