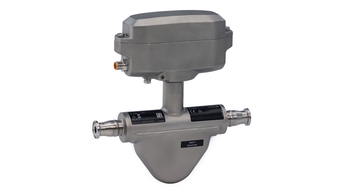

Picture of Coriolis flowmeter Dosimass / 8BE for filling and bottling applications

Dosimass
Coriolis flowmeter

The compact sensor with an ultra-compact transmitter

8BE
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

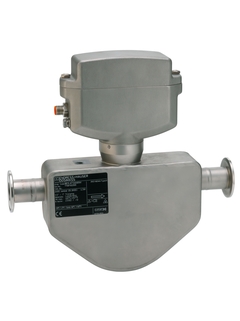

Picture of Coriolis flowmeter Dosimass / 8BE for filling and bottling applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimass for filling and bottling applications

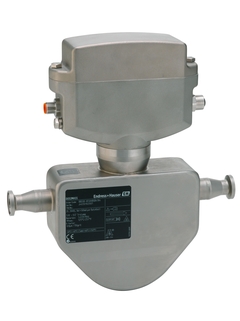

Picture of Coriolis flowmeter Dosimass / 8BE with batching functionality
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimass with batching functionality

Dosimass for filling and bottling applications

Kratke specifikacije

  • Max. measurement error

    Mass flow (liquid): ±0.15 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 18 000 kg/h (0 to 660 lb/min)

  • Medium temperature range

    –40 to +125 °C (–40 to +257 °F)
    150 °C allowed for 1 h

  • Max. process pressure

    PN 40

  • Wetted materials

    Measuring tube: 1.4539 (904L)
    Connection: 1.4404 (316/316L)

Područje primjene

Dosimass is specially designed for filling and bottling applications. It measures volume and mass flow directly with temperature and density compensation to ensure maximum repeatability. Designed for applications where space is a premium, Dosimass will be the preferred choice for system integrators, skid builders and equipment manufacturer.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • Measurement of liquids with the most diverse properties in the continuous process control & batching applications.

Device properties

  • Nominal diameter: DN 8 to 25 (3/8 to 1")

  • Various hygienic process connections, 3A conform

  • CIP, SIP cleanable sensor

  • Robust, ultra-compact transmitter housing

  • Pulse/frequency/switch output, Modbus RS485

  • Excellent and easy cleanable transmitter

Prednosti

  • High process safety – high measuring accuracy for different media in shortest filling time

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Versatile and time-saving wiring – plug connector

  • Fast commissioning – pre-configured devices

  • Automatic recovery of data for servicing
